Engine Control System (SFI): Injector: Removal

  1. REMOVE NO.2 CYLINDER HEAD COVER
  2. REMOVE CYLINDER HEAD COVER (See  REMOVAL  )
  3. DISCONNECT FUEL TUBE
    1. Remove the fuel pipe clamp.
    2. Disconnect the fuel tube (fuel tube connector) from the fuel pipe.
    CAUTION:
    • Perform disconnecting operations of the fuel tube connector (quick type) after observing the precautions.
    • As there is retained pressure in the fuel pipe line, prevent it from splashing inside the engine compartment.

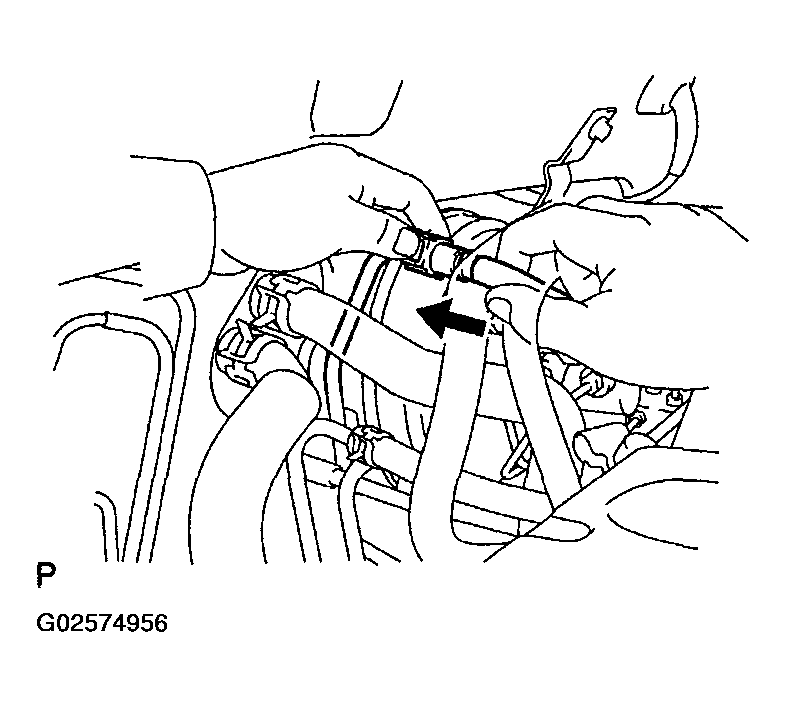

    Fig 1: Disconnecting Fuel Tube (Fuel Tube Connector) From Fuel Pipe
    G02574956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE DELIVERY PIPE AND INJECTORS
    NOTE: Be careful not to drop the injectors when removing the delivery pipe.
    1. Disconnect the 4 injector connectors from the injector.
    2. Remove the 3 bolts and delivery pipe together with the 4 injectors and fuel pipe.
    3. Remove the 2 spacers from the cylinder head.
    4. Pull out the 4 injectors from the delivery pipe.
    5. Remove the O-rings and grommets from each injector.

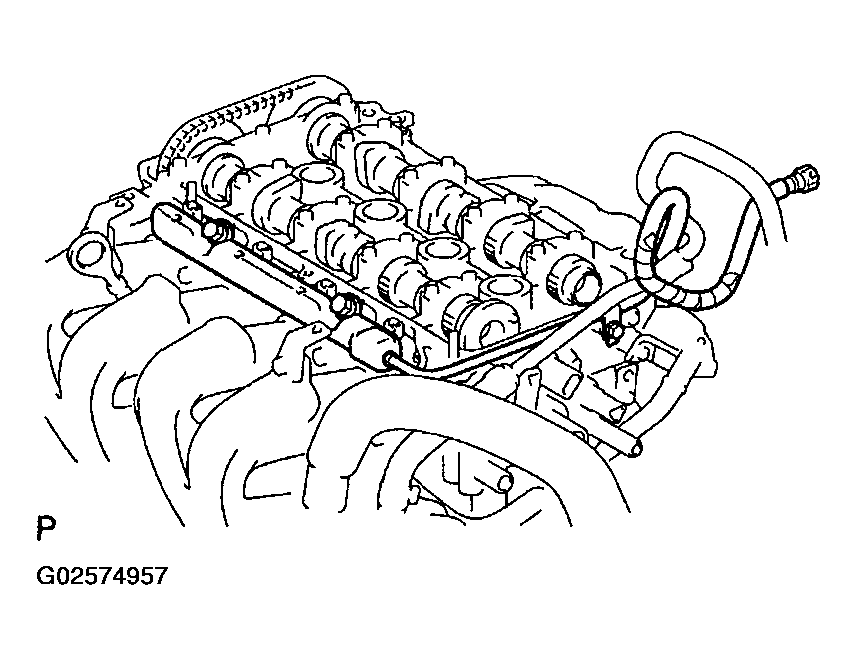

    Fig 2: Removing Delivery Pipe And Injectors
    G02574957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
