Throttle Body: Inspection

INSPECT THROTTLE VALVE
Check that there is no clearance between the throttle stop screw and throttle lever when the closed throttle position.

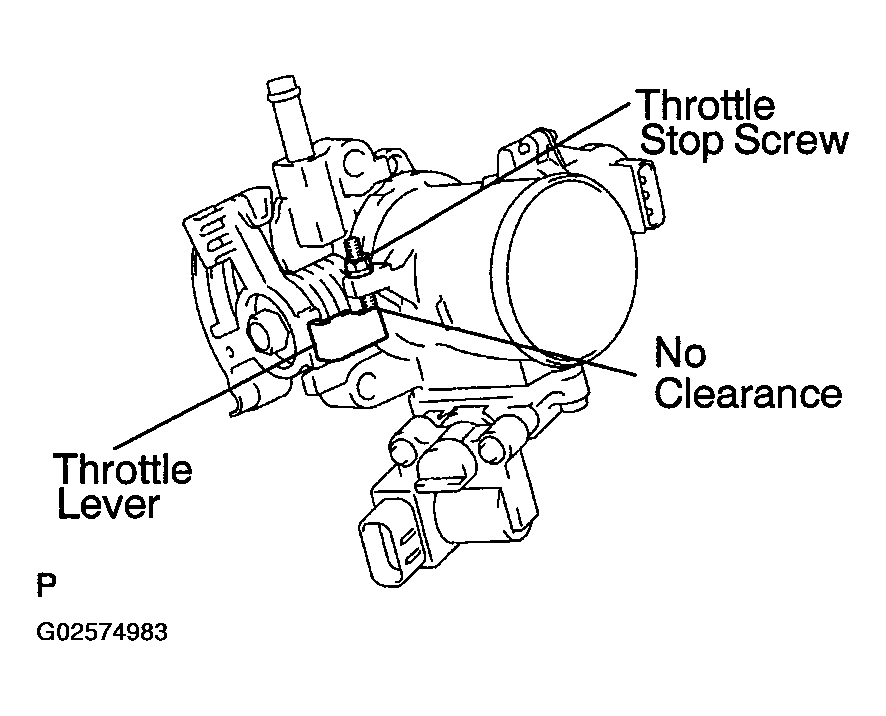

Fig 1: Inspecting Throttle Valve
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT THROTTLE POSITION SENSOR

Using an ohmmeter, measure the resistance between each terminal.

TERMINALS RESISTANCE CHART

Clearance between lever and stop screw	Between terminals	Resistance
0 mm (0 in.)	VTA - E2	0.2 - 5.7 kΩ
Throttle valve fully open	VTA - E2	2.0 - 10.2 kΩ
Always	VC - E2	2.5 - 5.9 kΩ

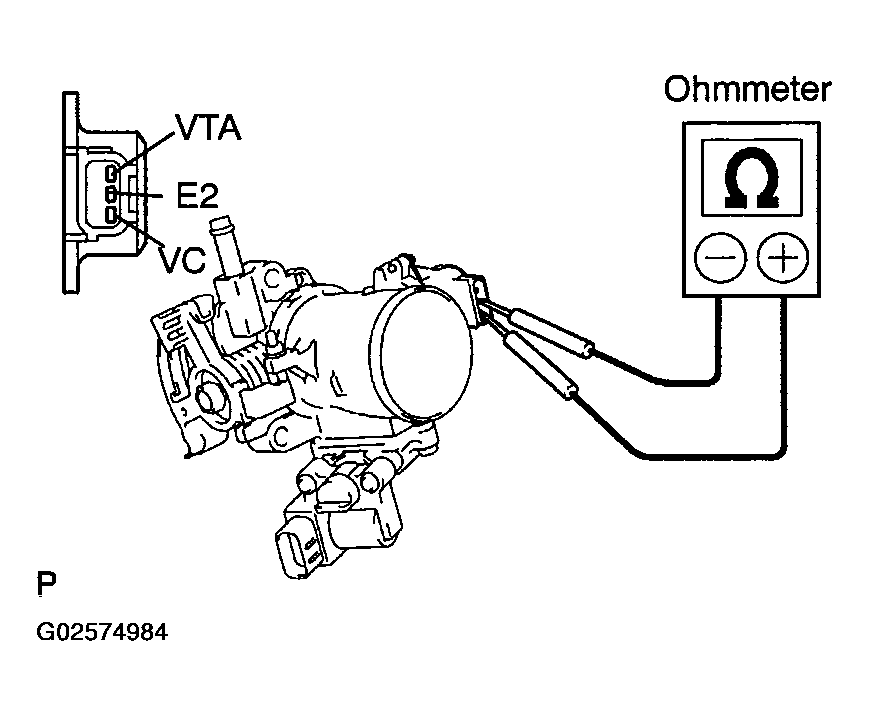

Fig 2: Measuring Resistance Between Each Terminal
