Problem Symptoms Table

Warning Lights:

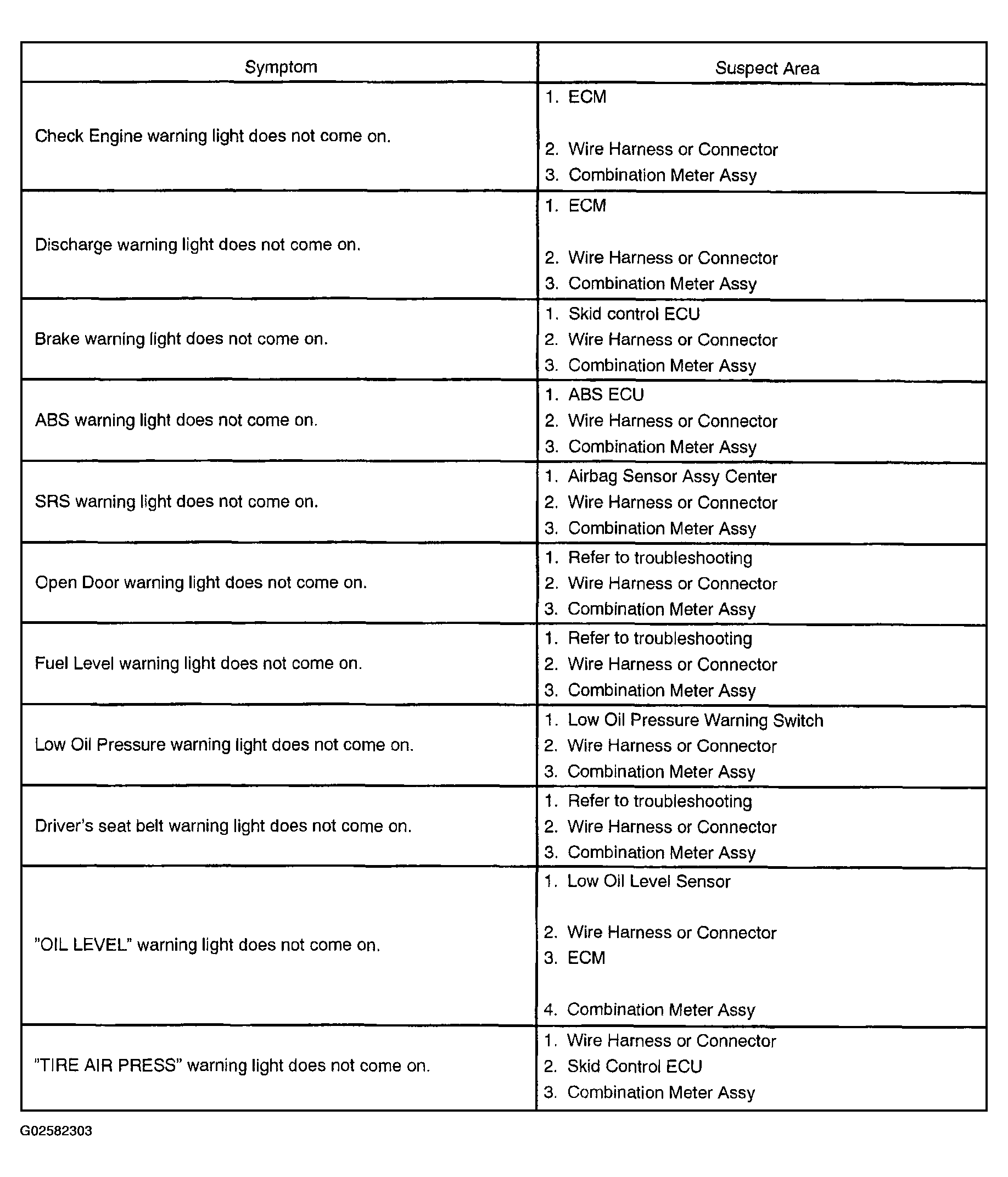

Fig 1: Warning Lights Problem Symptoms Chart
G02582303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Indicator Lights:

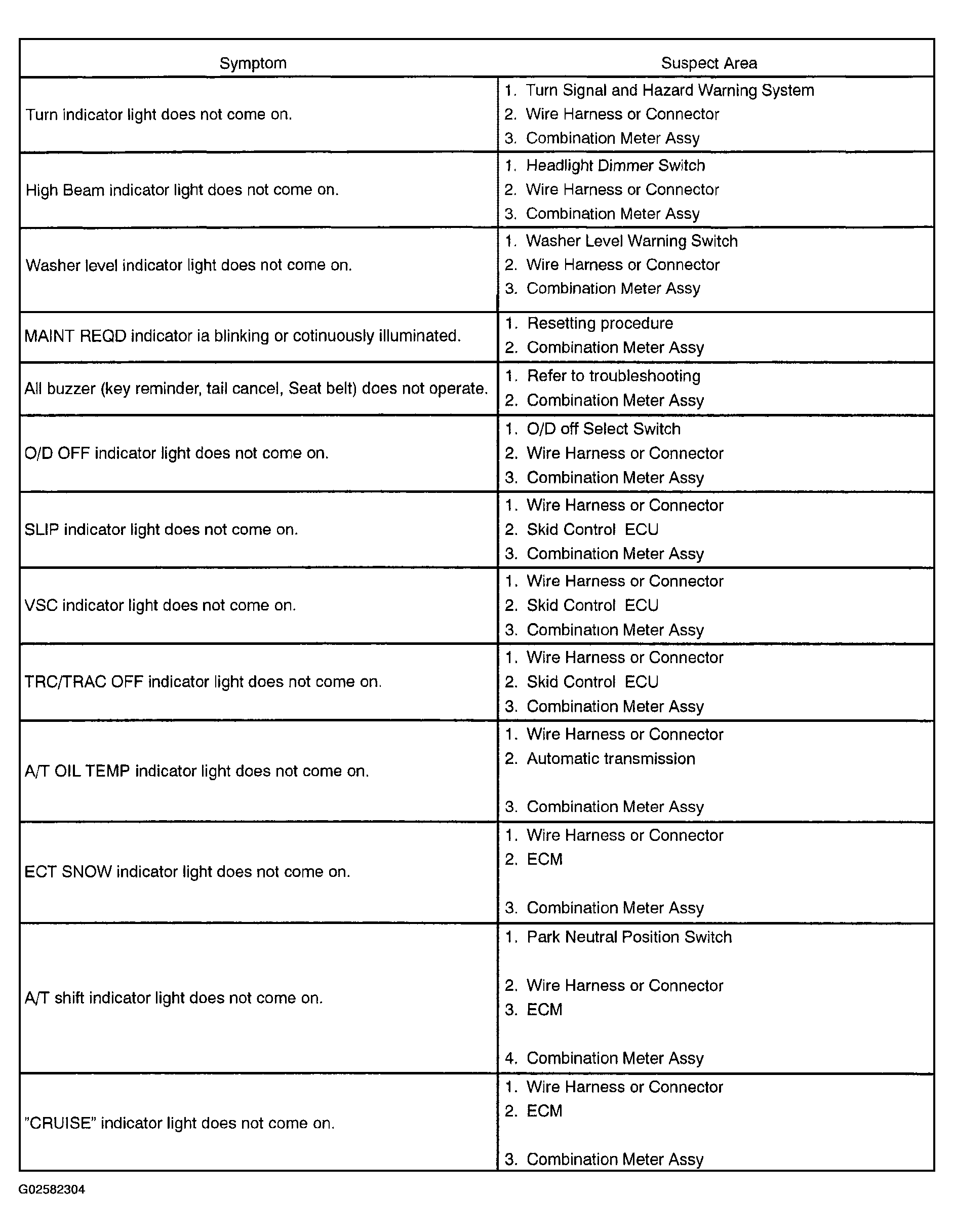

Fig 2: Indicator Lights Problem Symptoms Chart
G02582304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Meter Gauges:

METER GAUGES PROBLEM SYMPTOMS

Symptom Suspect Area Action
Speedometer does not operate. 1. Refer to MALFUNCTION IN SPEEDOMETER
Tachometer does not operate. 1. Refer to MALFUNCTION IN TACHOMETER
Fuel Gauge does not operate or operates abnormally. 1. Refer to MALFUNCTION IN FUEL RECEIVER GAUGE
Water temperature does not operate. 1. Refer to MALFUNCTION IN WATER TEMPERATURE RECEIVER GAUGE

Clock:

Fig 3: Clock Problem Symptoms Chart
G02582305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
