Home >> Toyota >> 2005 >> Land Cruiser >> Repair and Diagnosis >> Electrical >> Body Electrical >> Power Window Control System >> Location

Power Window Control System: Location

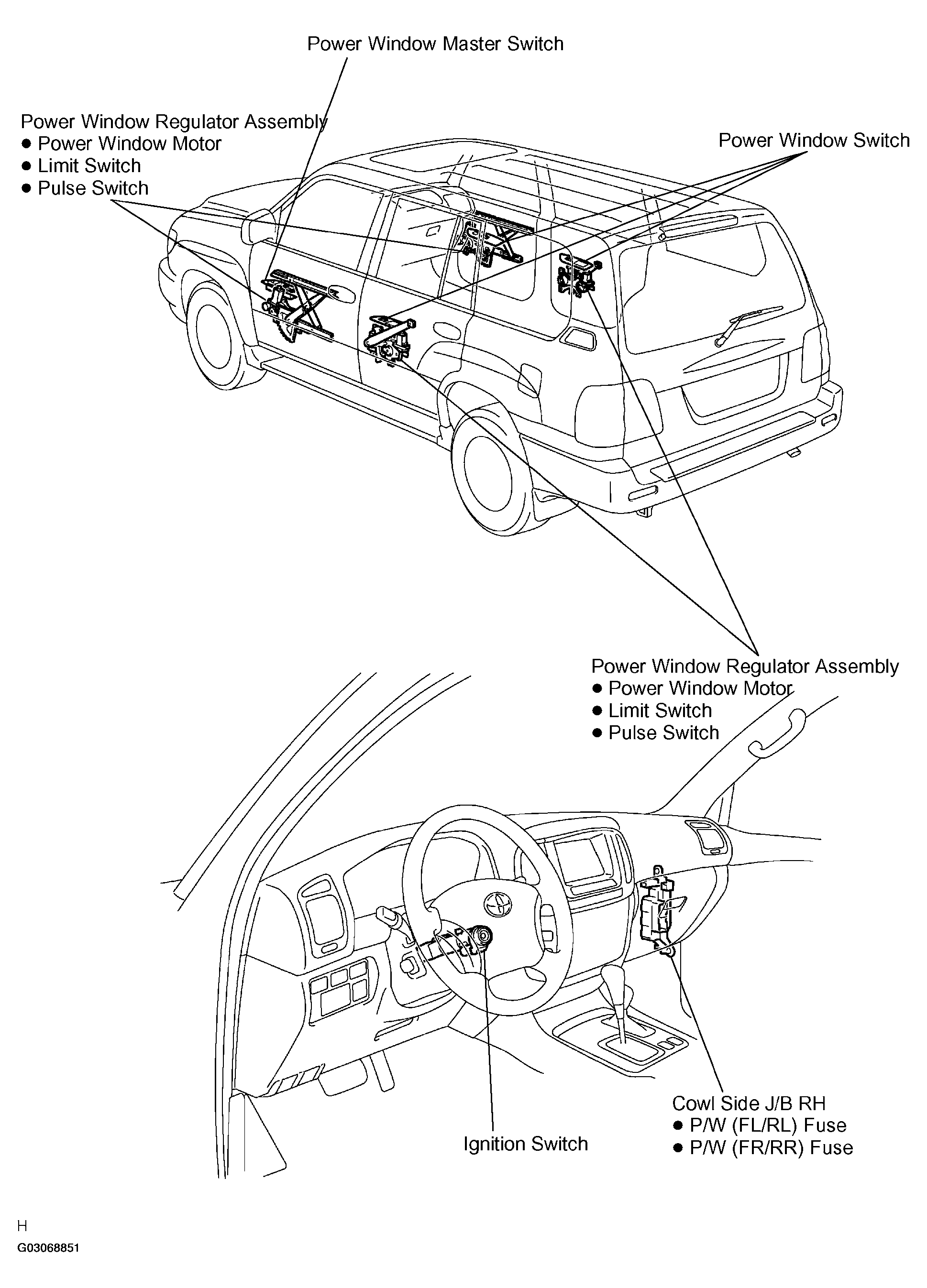

Fig 1: Locating Power Window Control System Components

G03068851

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
