Home >> Toyota >> 2005 >> Land Cruiser >> Repair and Diagnosis >> Electrical >> Body Electrical >> Wireless Door Lock Control System >> Location

Wireless Door Lock Control System: Location

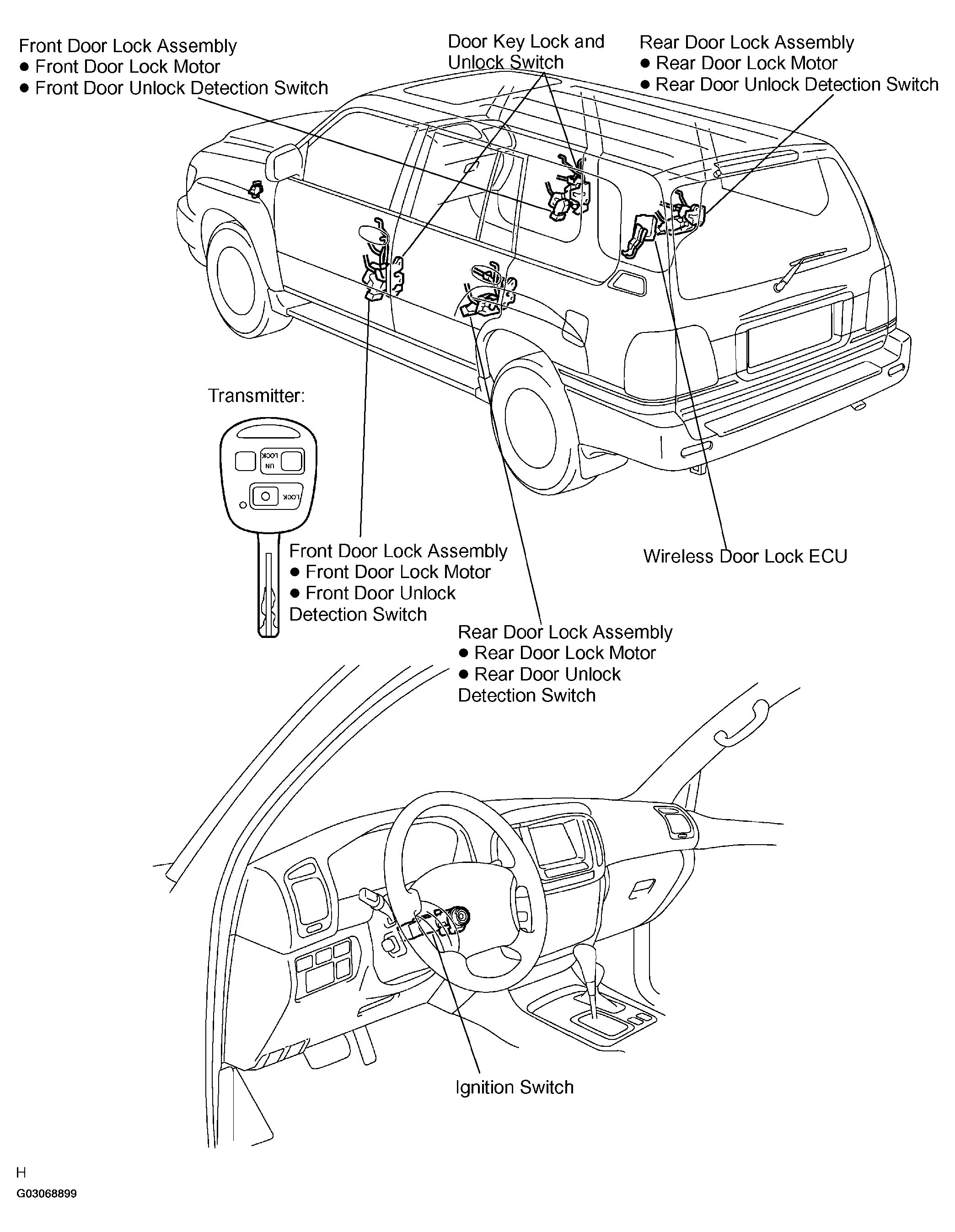

Fig 1: Locating Wireless Door Lock Control System Components
G03068899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
