Charging System: Generator: Components

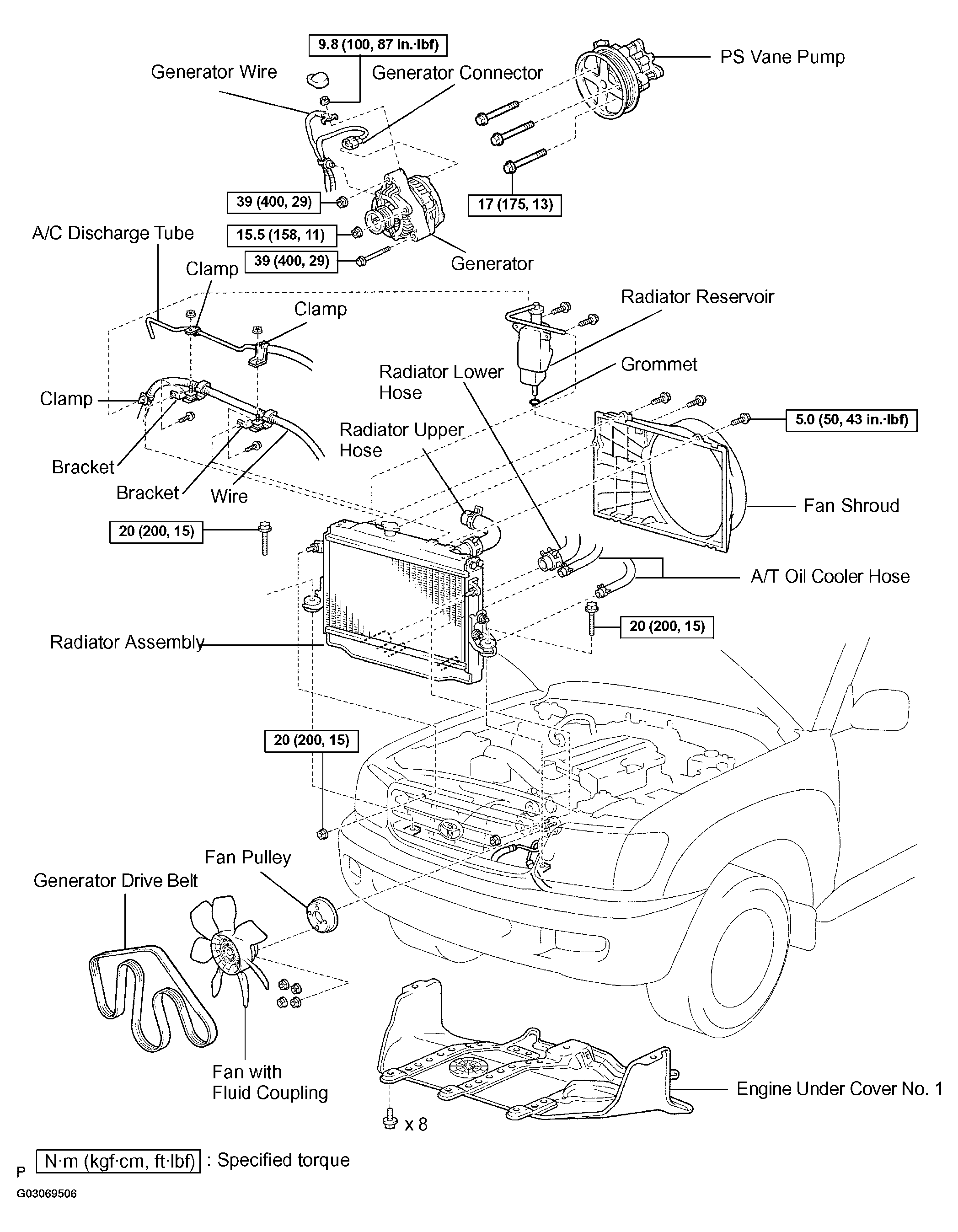

Fig 1: Generator Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

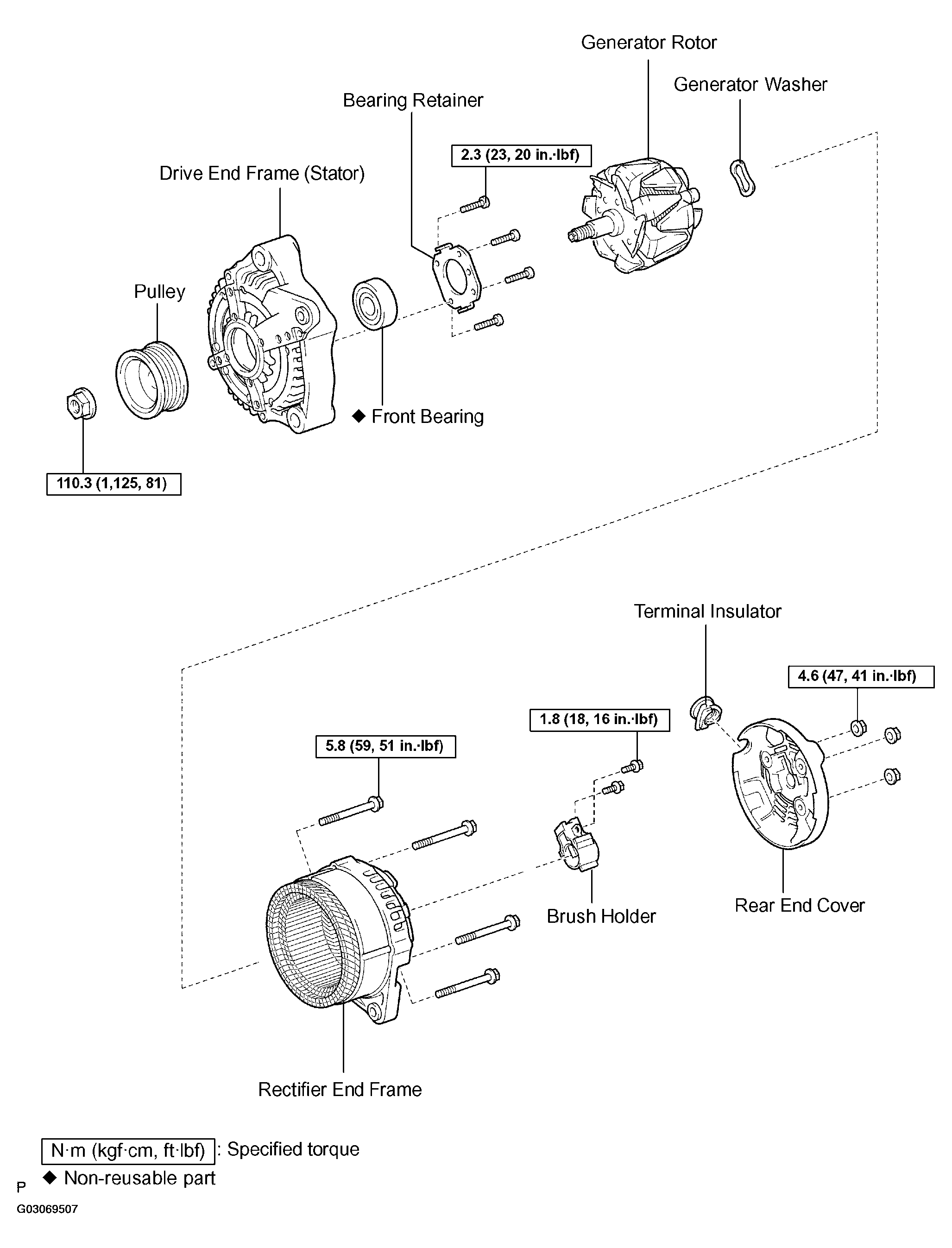

Fig 2: Exploded View Of Generator & Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
