Instrument Panel: Installation

  1. INSTALL REINFORCEMENT
  2. INSTALL NO. 1 BRACE
  3. INSTALL FLOOR BRACE
  4. INSTALL GLOVE COMPARTMENT DOOR DAMPER
  5. INSTALL NO. 4 HEATER TO REGISTER DUCT
  6. INSTALL NO. 3 HEATER TO REGISTER DUCT
  7. INSTALL ECM (See  ENGINE CONTROL MODULE (ECM)  )
  8. INSTALL INSTRUMENT PANEL

    HINT:

    • Install the airbag connector between the No. 5 heater to register duct and the center bracket temporarily, then install the instrument panel.
    • Remove the airbag connector before installing the lower No. 2 panel.
    1. Install the 6 bolts, the 2 nuts and the instrument panel, then connect the connectors.
    2. Install the 2 bolts to the front passenger airbag assembly.

      Torque: 20 N.m (204 kgf.cm, 15 ft.lbf)

    3. Connect the junction connectors.

    HINT:

    The connectors can be connected by tightening the bolts.

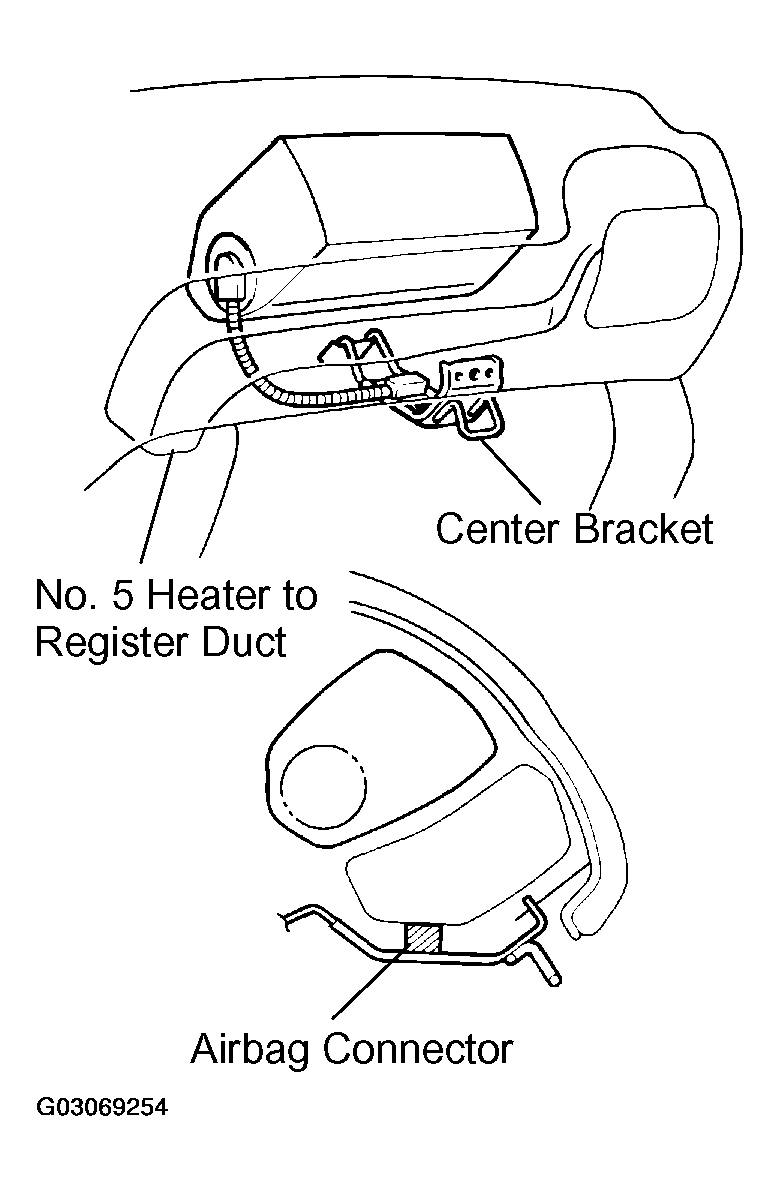

    Fig 1: Proper Airbag Connector Installation Location
    G03069254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL FRONT CONSOLE BOX AND FRONT CONSOLE BOX BRACKET

    Install the front console box and the front console box bracket with the 2 bolts.

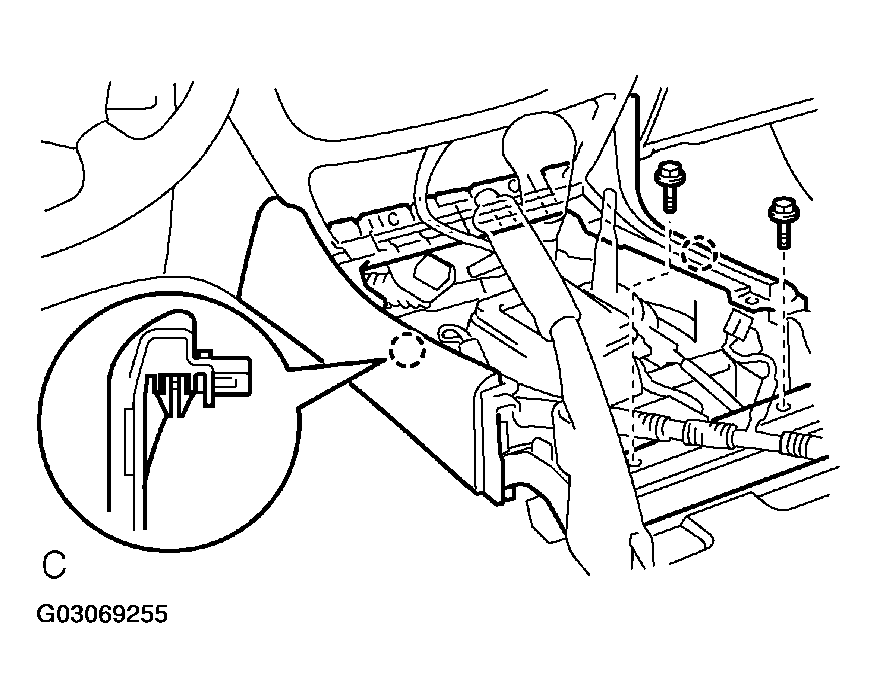

    Fig 2: Locating Front Console Box Bolts
    G03069255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL CENTER LOWER CLUSTER FINISH PANEL

    Connect the connector, then install the center lower cluster finish panel.

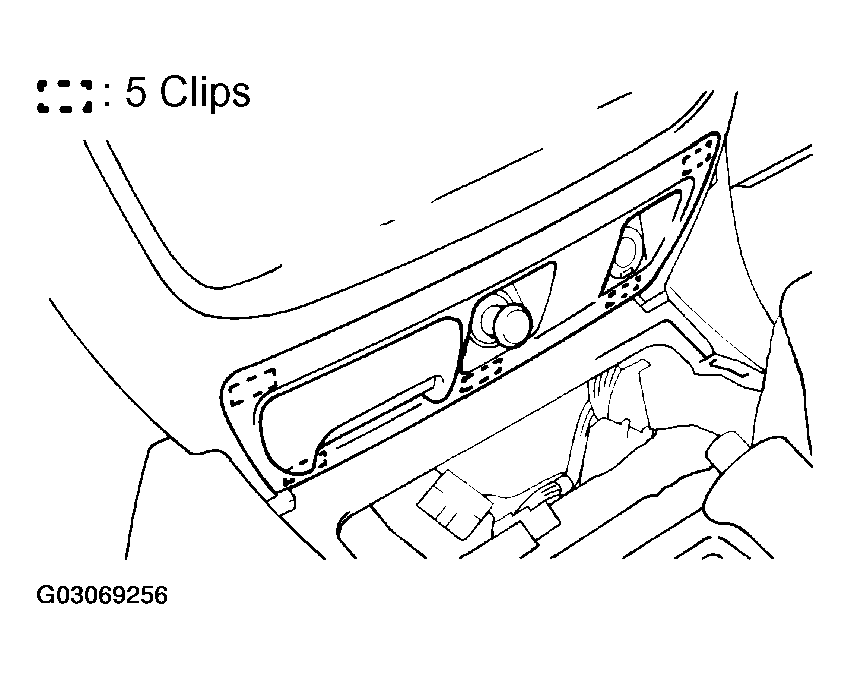

    Fig 3: Locating Center Lower Cluster Finish Panel Clips
    G03069256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL REAR CONSOLE BOX
    1. w/o Disc player changer:

      Install the rear console box with the 6 bolts and the 8 screws.

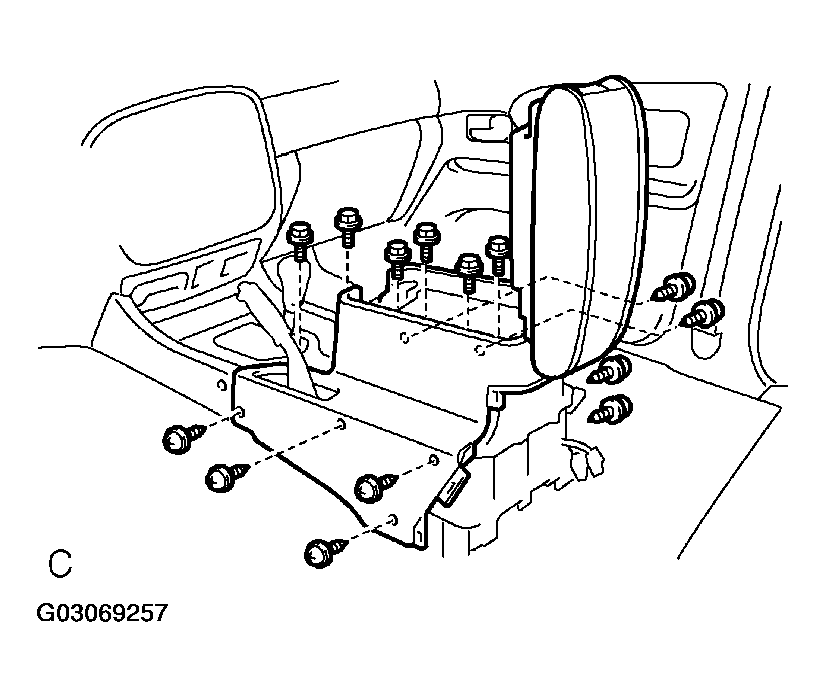

      Fig 4: Locating Rear Console Box Screws & Bolts (Without Disc Player)
      G03069257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Disc player changer:

      Install the rear console box with the 4 bolts and the 8 screws.

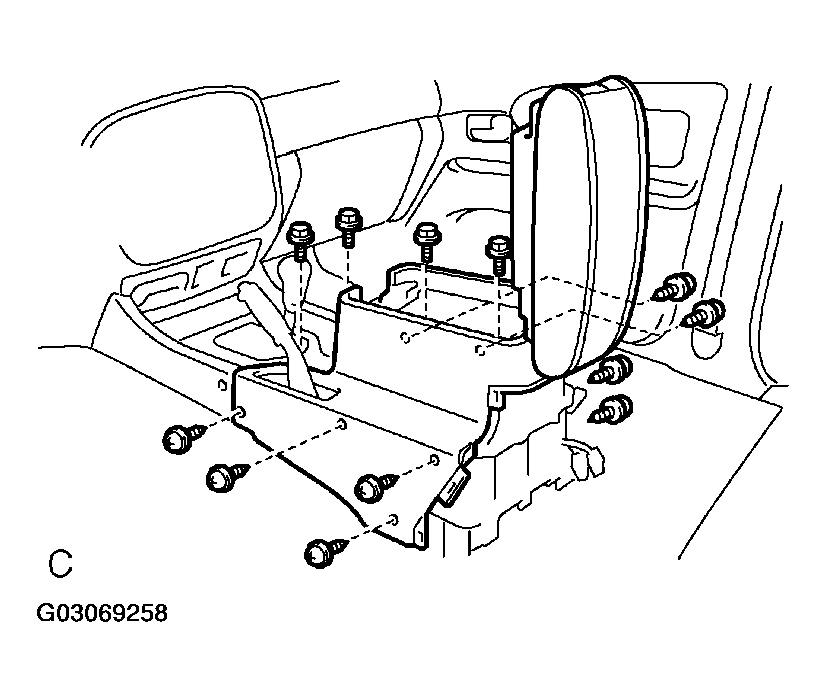

      Fig 5: Locating Rear Console Box Screws & Bolts (Without Disc Player)
      G03069258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL REAR RADIO CONTROL PANEL

    Install the rear radio control panel with the 3 screws, then connect the connector.

  13. INSTALL CONSOLE REAR END PANEL
    1. Install the console rear end panel with the 2 screws.
    2. Install the rear console cup holder box.

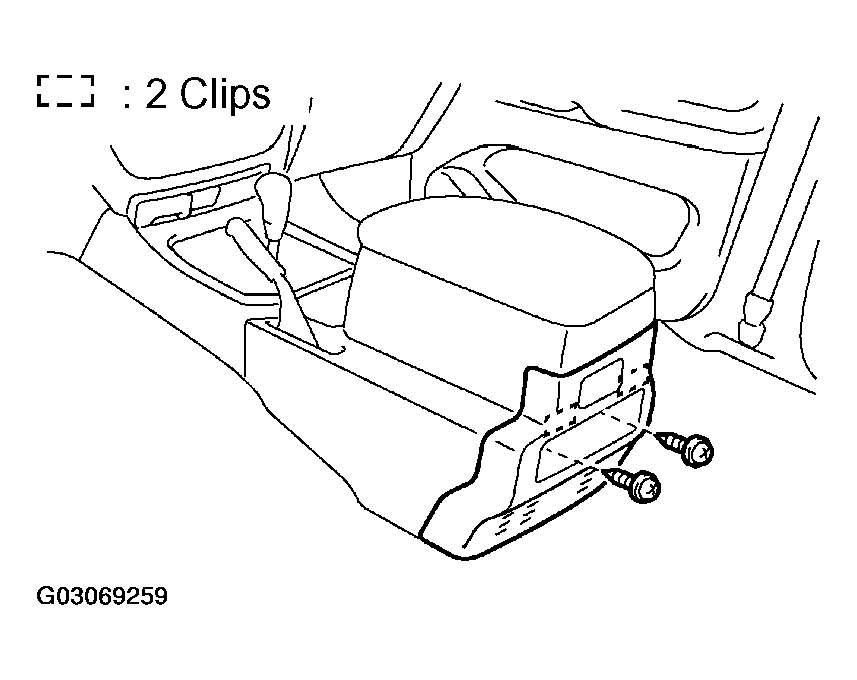

      Fig 6: Locating Console Rear End Panel Screws & Clips
      G03069259Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL FRONT CONSOLE PANEL

    Install the front console panel, then install the transfer shift lever knob.

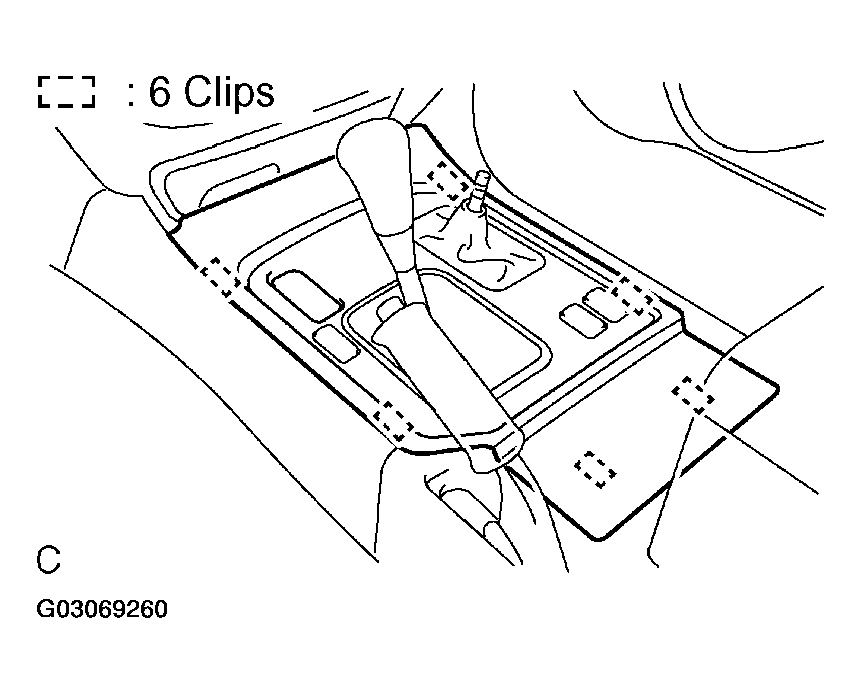

    Fig 7: Locating Front Console Panel Clips
    G03069260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL RADIO WITH A/C CONTROL ASSEMBLY

    HINT:

    w/ Navigation System:

    When removing/installing or replacing EMV, or when disconnecting/connecting the battery terminal, turn the IG ON and OFF twice for initial display setting.

  16. INSTALL CENTER REGISTERS

    Connect the connectors, then install the center registers.

  17. INSTALL LOWER NO. 2 PANEL

    Install the lower No. 2 panel with the 3 screws.

  18. CONNECT AIRBAG CONNECTOR (See  INSTALLATION  )

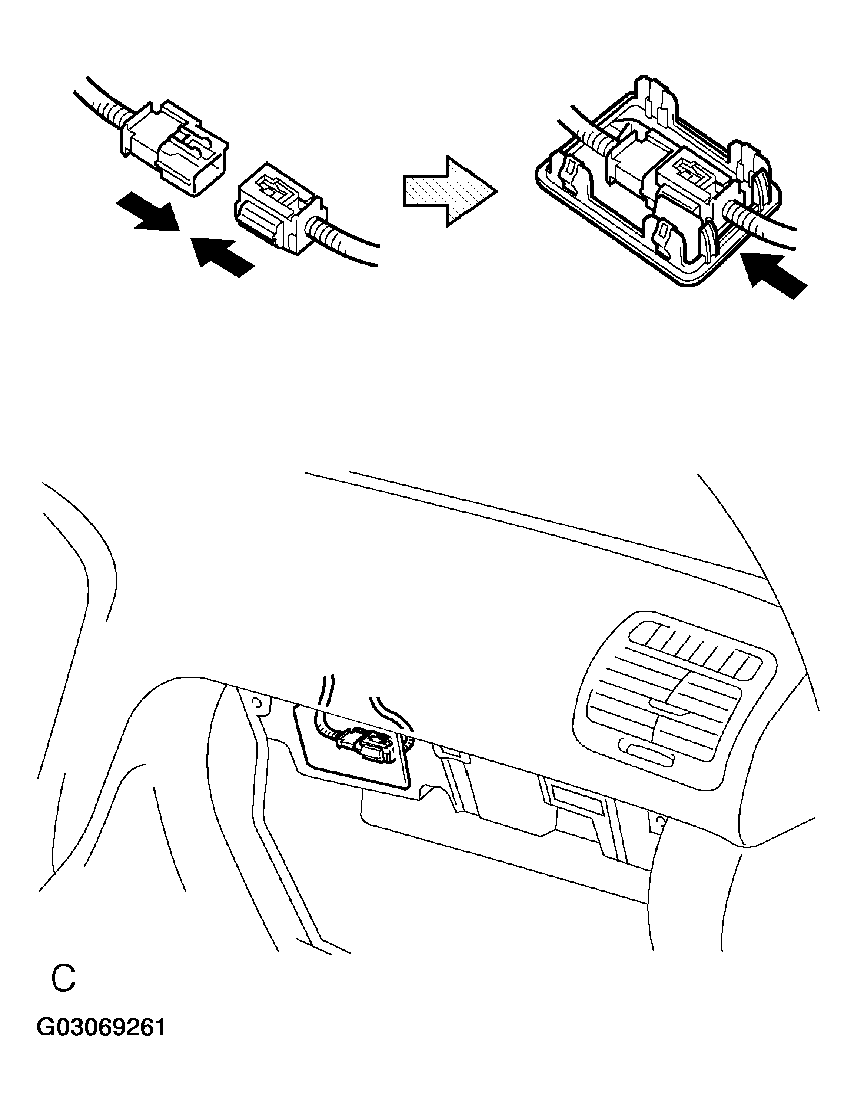

    Fig 8: Locating & Connecting Airbag Connector
    G03069261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. INSTALL GLOVE COMPARTMENT DOOR
    1. Connect the glove compartment door damper clip, then install the glove compartment door.
    2. Install the 2 screws.
  20. INSTALL COMBINATION METER
    1. Check that the set-in connectors are connected securely in the installation holes on the instrument panel.
    2. Place the combination meter on the instrument panel.
    3. Install the combination meter by tightening the screws, "A", "B" and "C" in order.

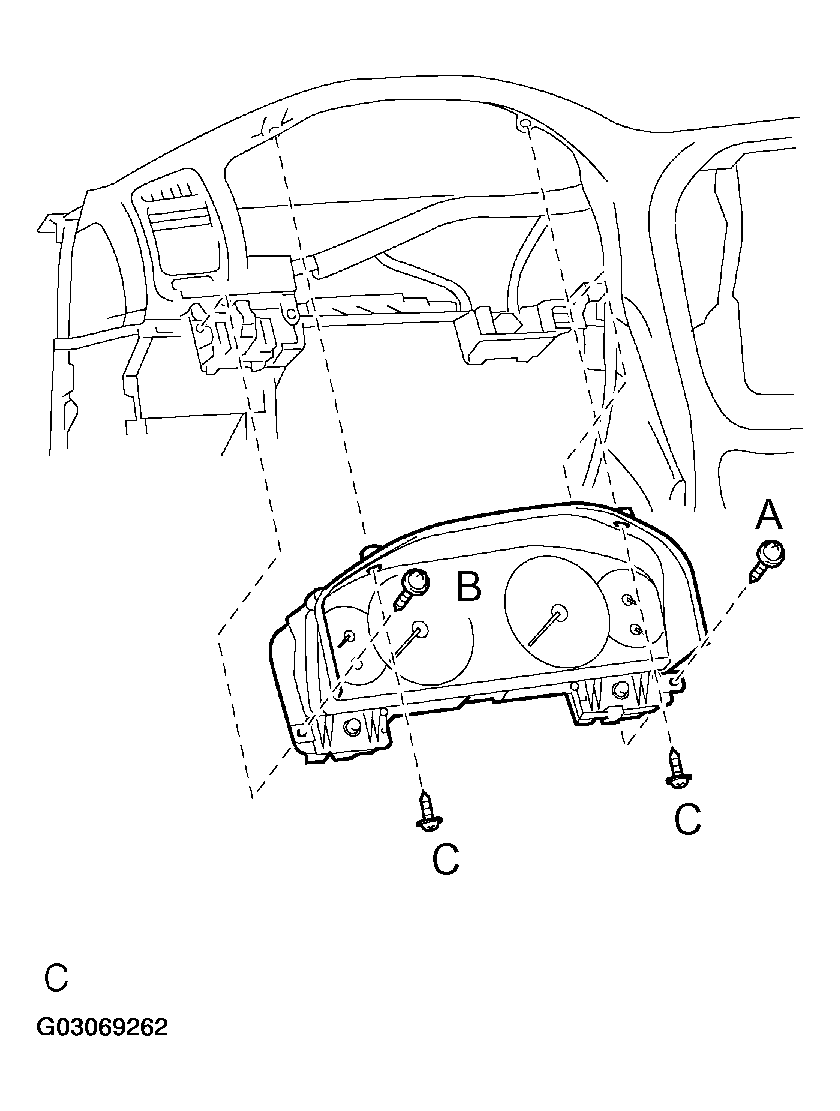

      Fig 9: Installing Combination Meter
      G03069262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Tighten the connection bolts.

    HINT:

    • When connection completes, the bolts turns idly, causing turning noise.
    • Check that the connection check pins protrude from the lower side of the connection bolts.

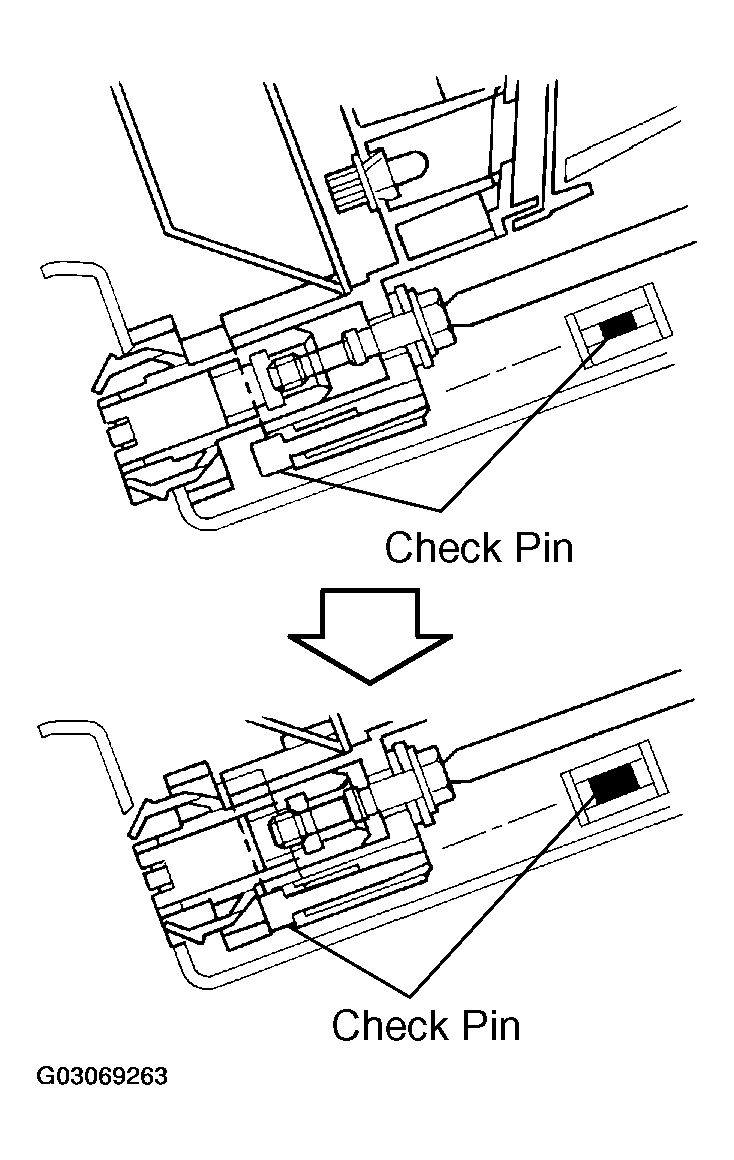

      Fig 10: Checking Connection Check Pins Protrude
      G03069263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE: Follow the procedures in the order of ( c) and ( d). Otherwise, set-in connectors on the wire harness side and connectors on the meter side might not be connected properly.
  21. INSTALL STEERING COLUMN (See  INSTALLATION  or  INSTALLATION  )
  22. INSTALL NO. 2 HEATER TO REGISTER DUCT

    Install the No. 2 heater to register duct with the screw.

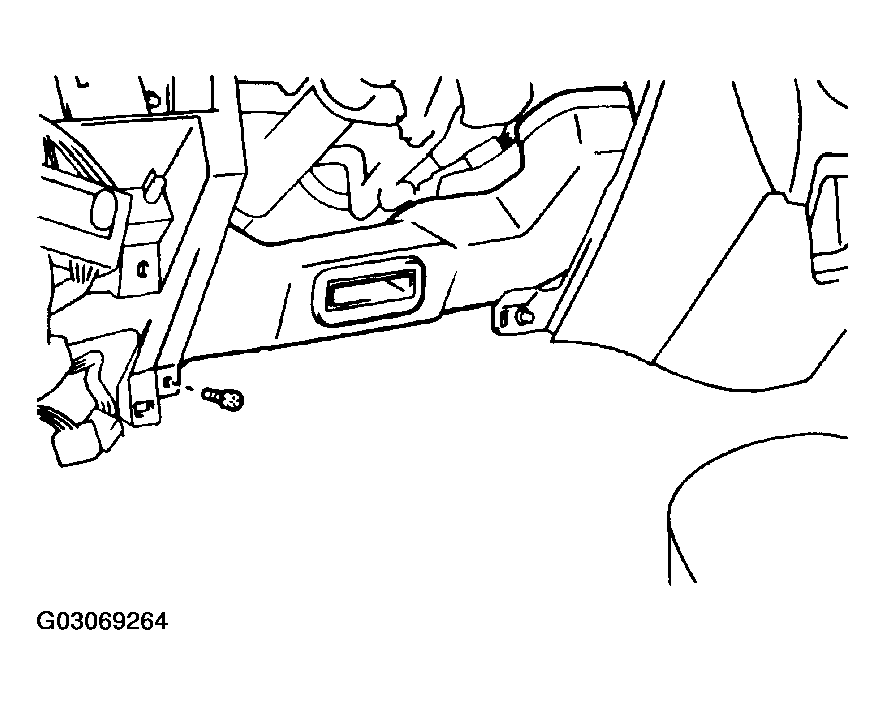

    Fig 11: Locating No. 2 Heater To Register Duct Screw
    G03069264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. INSTALL COMBINATION SWITCH
    1. Install the combination switch with the 4 screws.
    2. Install the clamp, then connect the connectors.

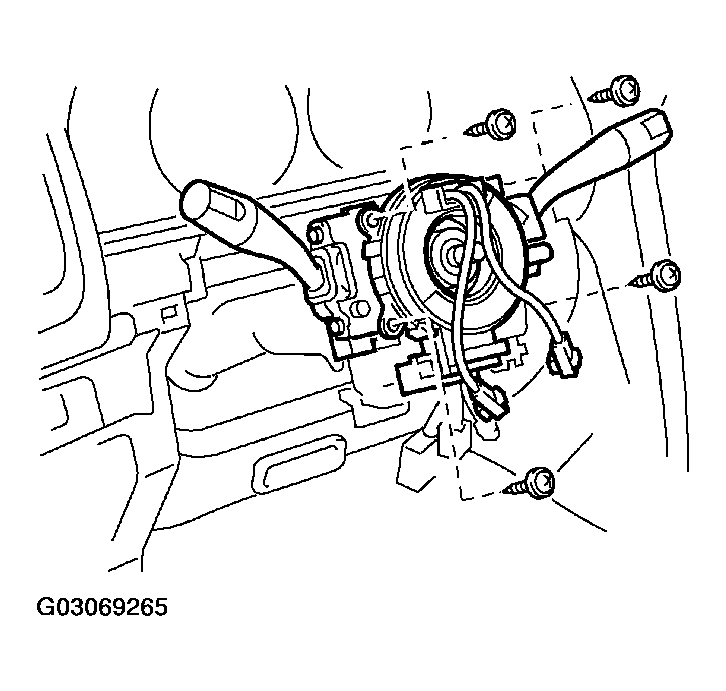

      3. Fig 12: Locating Combination Meter Screws
      G03069265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. INSTALL COLUMN COVERS

    Install the column covers with the 3 screws.

  25. INSTALL LH LOWER PANEL

    Install the LH lower panel with the 3 bolts.

  26. INSTALL LOWER NO. 1 PANEL

    Connect the connector, then install the lower No. 1 panel with the screw.

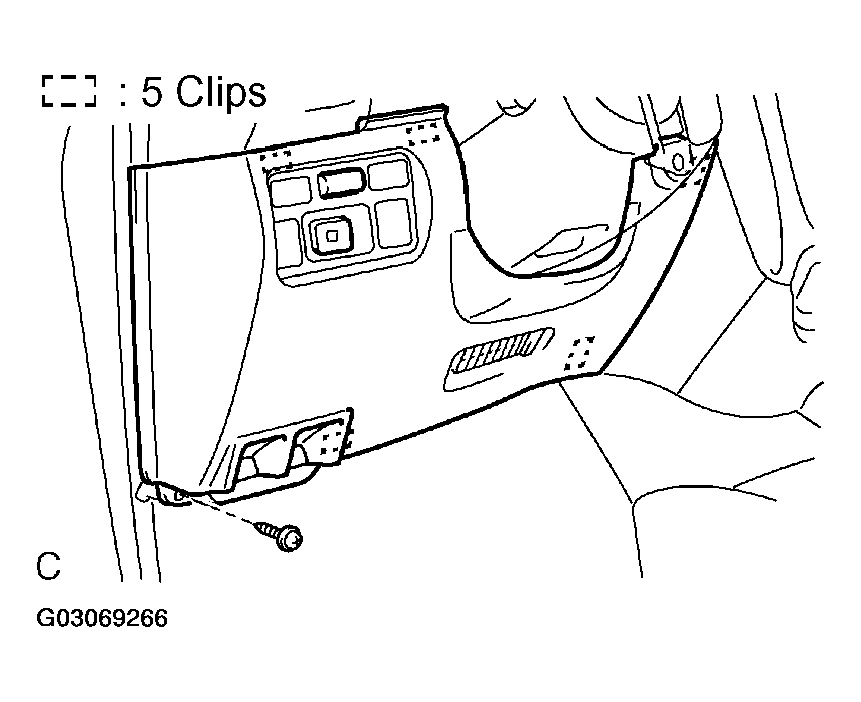

    Fig 13: Locating Lower No. 1 Panel Clips
    G03069266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. INSTALL HOOD LOCK CONTROL CABLE LEVER AND FUEL LID CONTROL CABLE LEVER
    1. Install the fuel lid control cable lever with the 2 screws.
    2. Install the hood lock control cable lever with the 2 screws.
  28. INSTALL CLUSTER FINISH PANEL

    Connect the connector, then install the cluster finish panel.

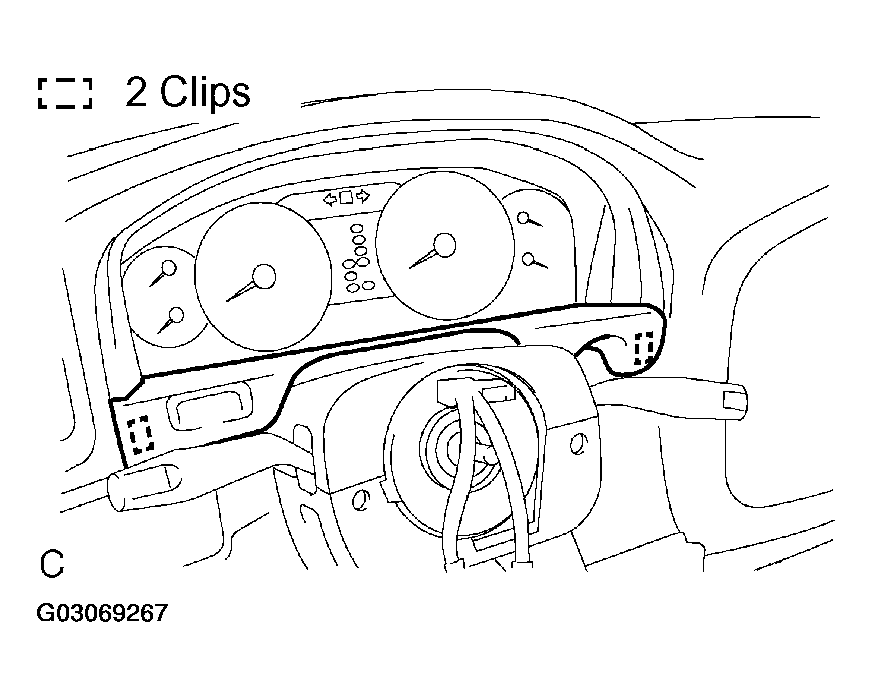

    Fig 14: Locating Cluster Finish Panel Clips
    G03069267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. INSTALL STEERING WHEEL (See  INSTALLATION  or  INSTALLATION  )
  30. INSTALL FRONT PILLAR GARNISH
    1. Install the front pillar garnish.
    2. Use the same manner described above to the other side.

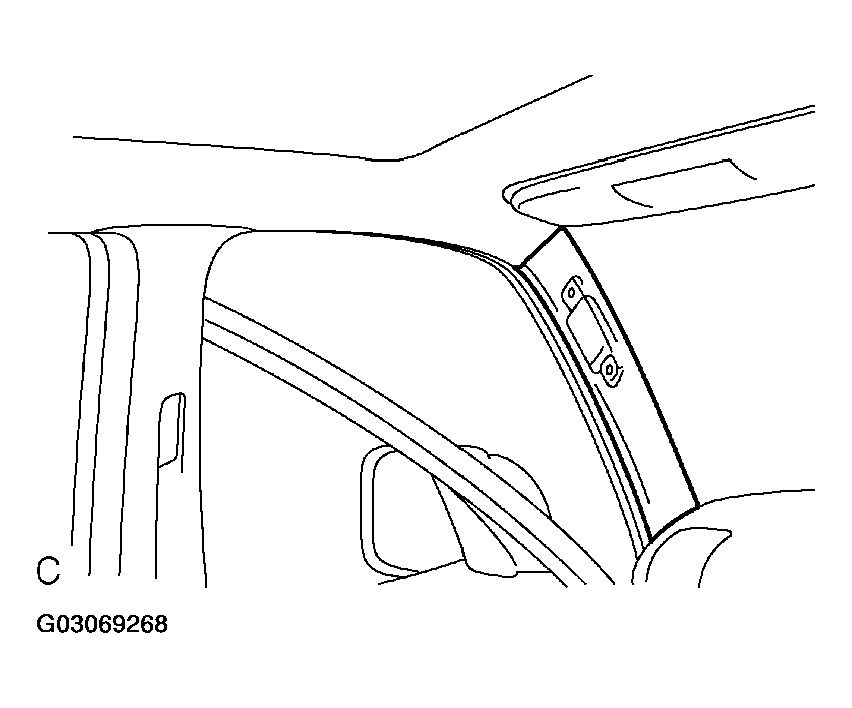

    Fig 15: Front Pillar Garnish
    G03069268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. INSTALL FRONT ASSIST GRIP
    1. Install the assist grip with the 2 screws, then install the 2 assist grip plugs.
    2. Use the same manner described above to the other side.
  32. INSTALL FRONT DOOR OPENING TRIMS
  33. INSTALL COWL SIDE TRIMS
  34. INSTALL FRONT DOOR SCUFF PLATES
