Starter Relay: Inspection

REMOVE STARTER RELAY (Marking: "ST")
Remove the relay box cover and starter relay.

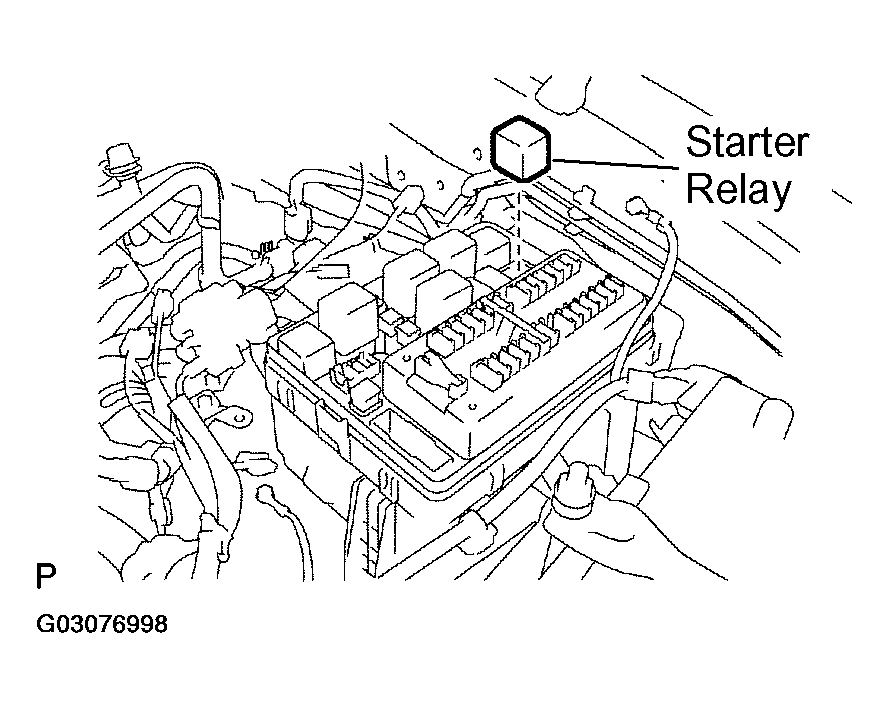

Fig 1: Locating Starter Relay
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT RELAY CONTINUITY
1. Using an ohmmeter, check that there is continuity between terminals 1 and 2.
  If there is no continuity, replace the relay.
2. Check that there is no continuity between terminals 3 and 5.
  If there is continuity, replace the relay.

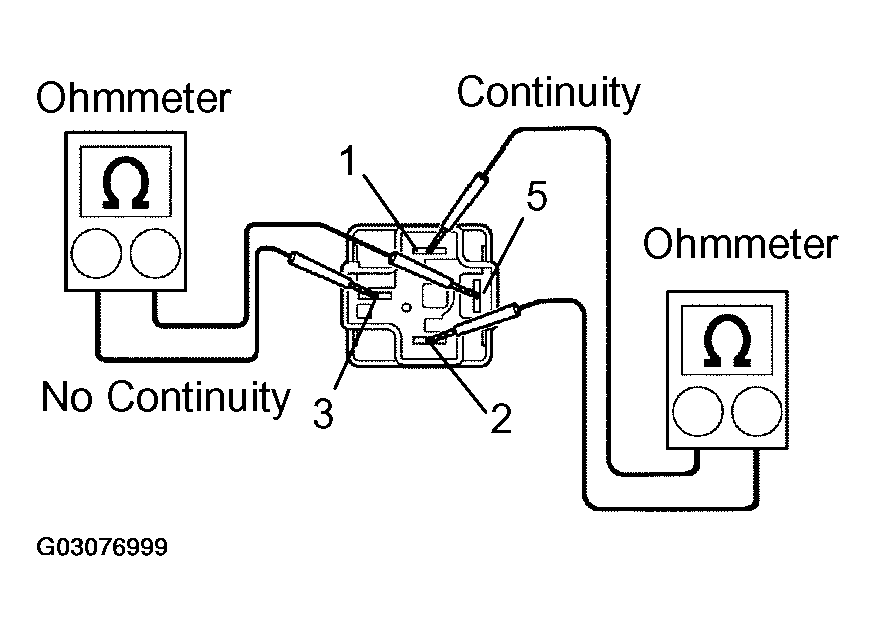

  Fig 2: Inspecting Relay Continuity
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT RELAY OPERATION
1. Apply battery voltage across terminals 1 and 2.
2. Using an ohmmeter, check that there is continuity between terminals 3 and 5.
  If there is no continuity, replace the relay.

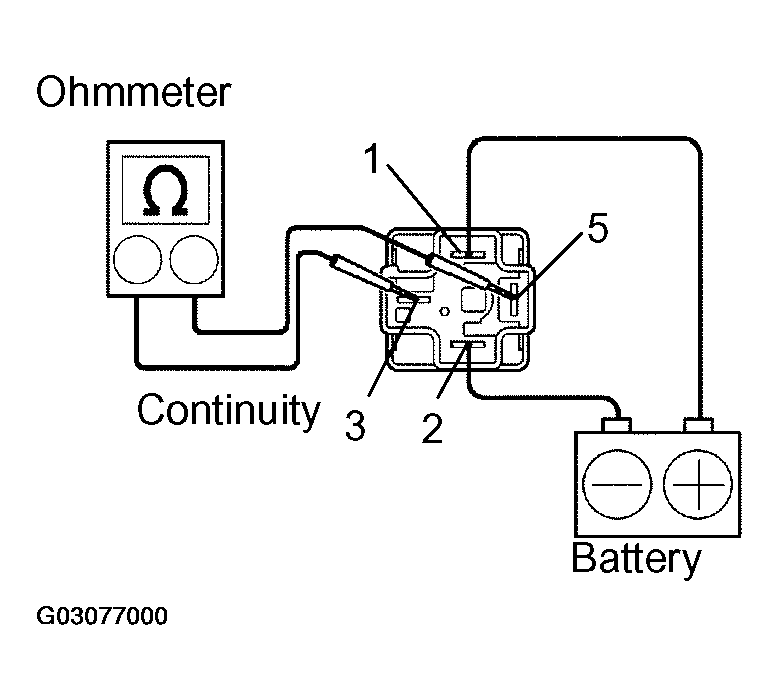

  Fig 3: Inspecting Relay Operation
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REINSTALL STARTER RELAY
