Home >> Toyota >> 2005 >> Land Cruiser >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> SFI System >> Accelerator Pedal Position Sensor >> Components

Accelerator Pedal Position Sensor: Components

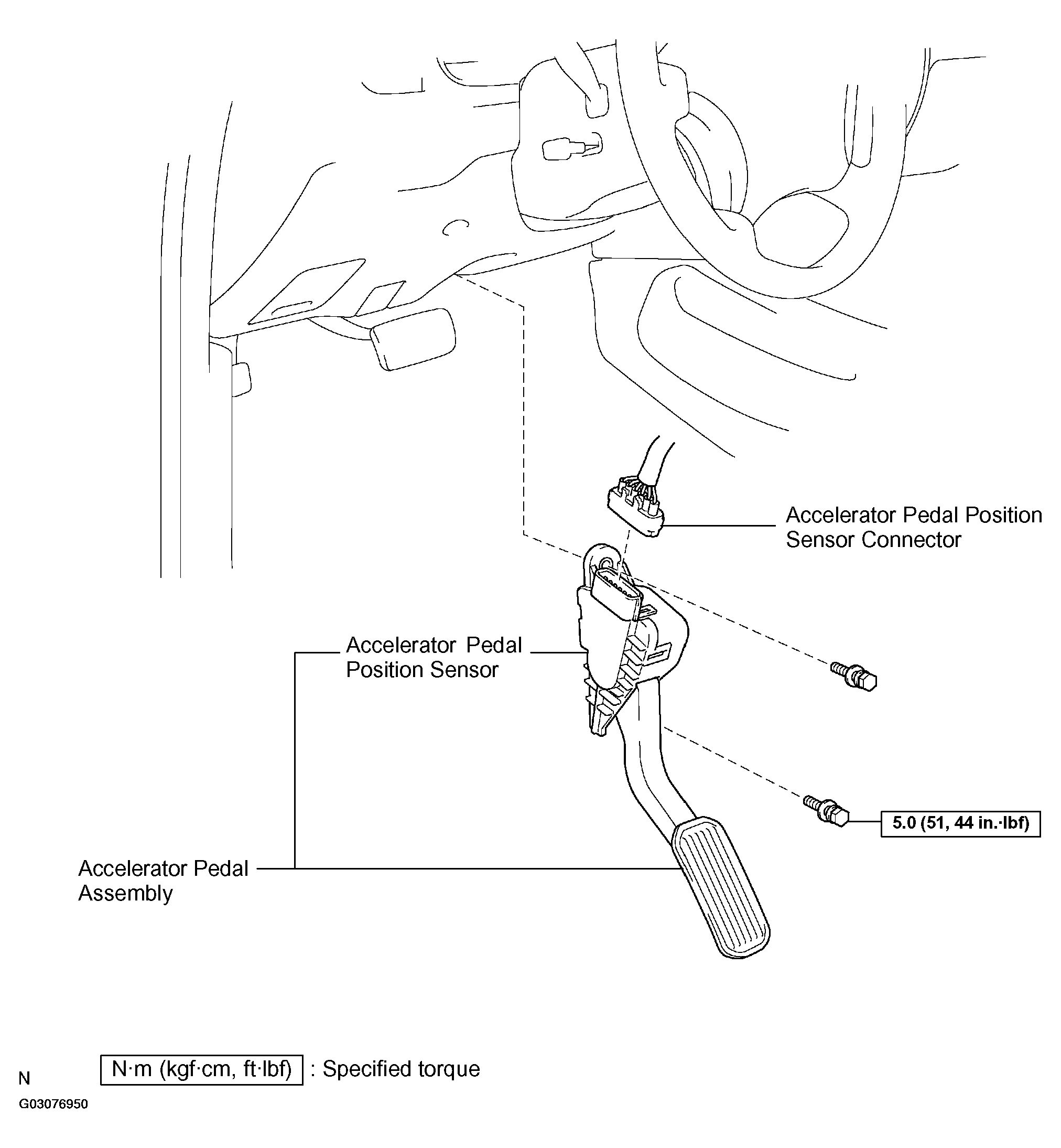

Fig 1: Identifying Accelerator Pedal Position Sensor Components

G03076950

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
