SFI System: Injector: Components

Fig 1: Identifying Injector Components (1 Of 2)
G03076876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

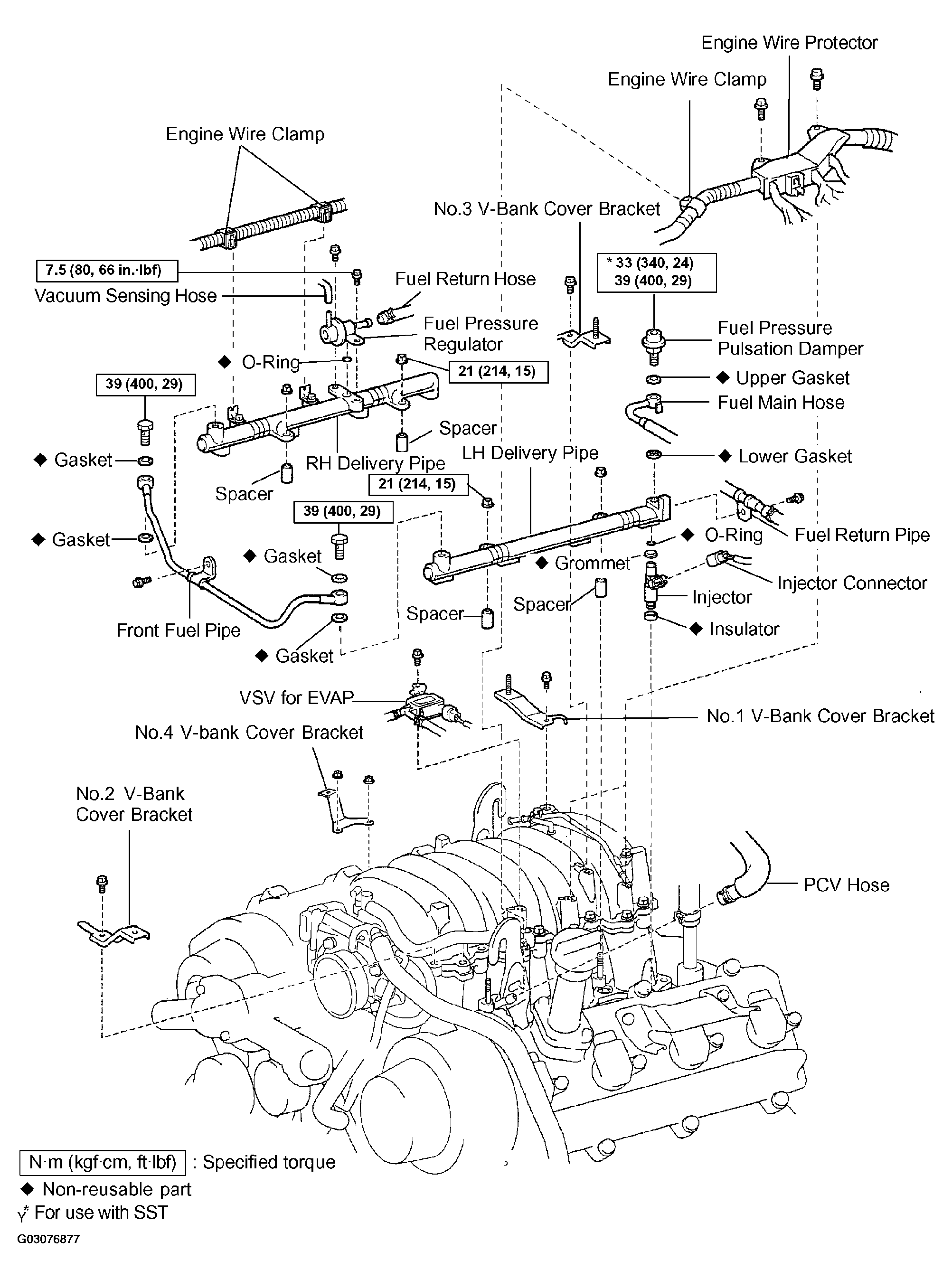

Fig 2: Identifying Injector Components (1 Of 2)
G03076877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
