Home >> Toyota >> 2005 >> Land Cruiser >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> SFI System >> Knock Sensor >> Components

Knock Sensor: Components

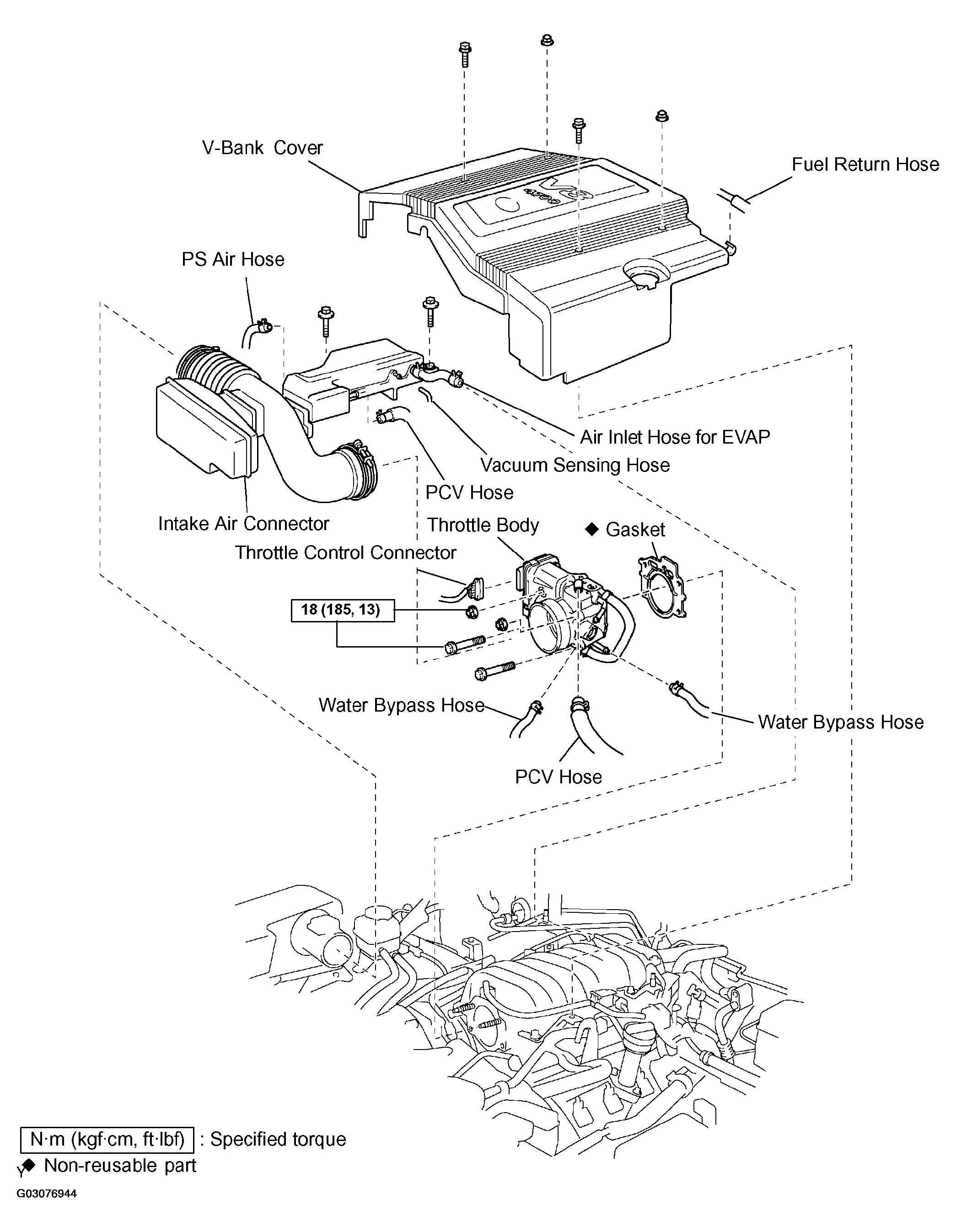

Fig 1: Identifying Knock Sensor Components (1 Of 2)
G03076944Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

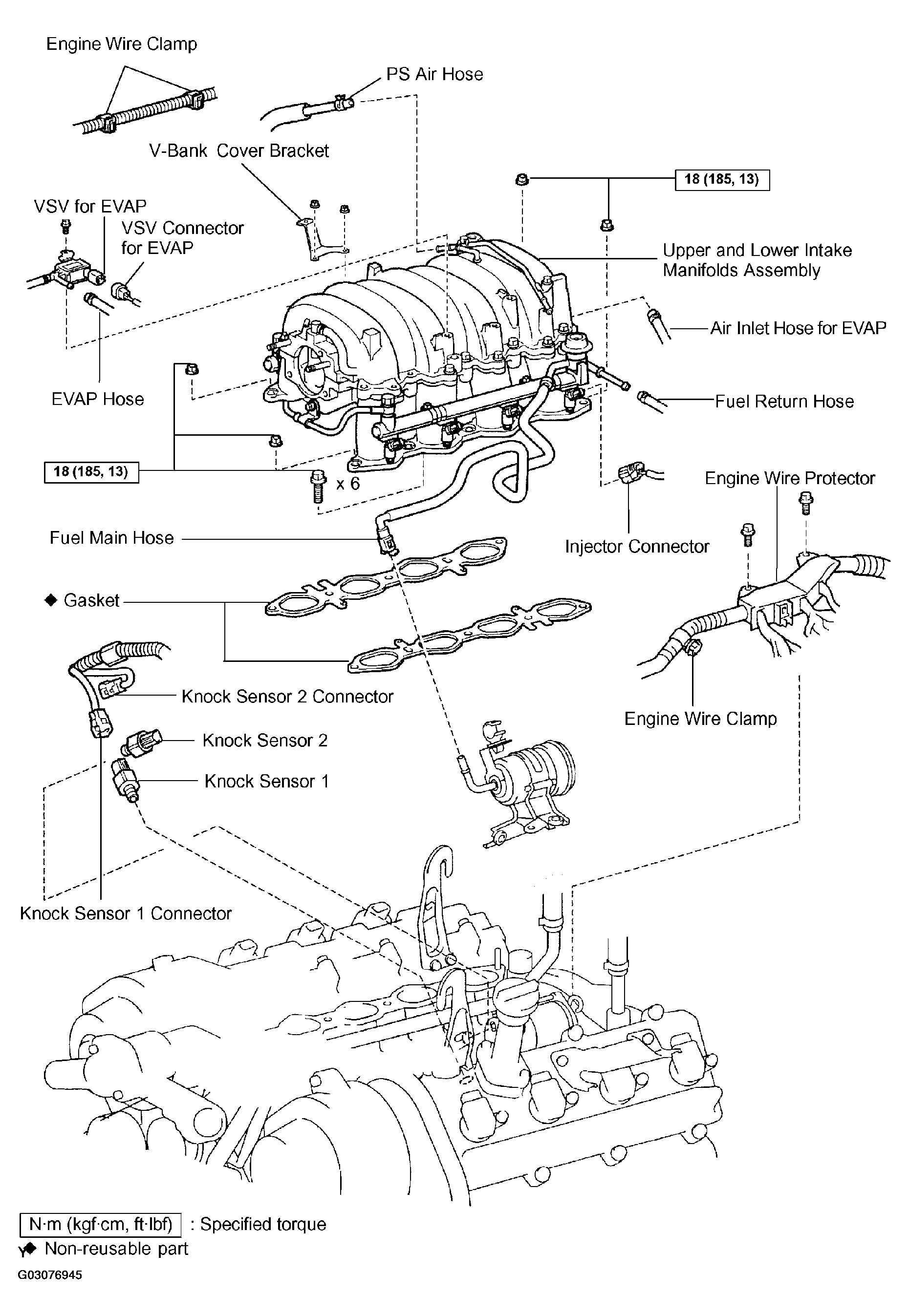

Fig 2: Identifying Knock Sensor Components (2 Of 2)
G03076945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
