Seat Belt: Clip: Replacement

The removal and installation methods of typical clips used in body parts are shown in Fig 1 .

HINT:

If the clip is damaged during the operation, always replace it with a new clip.

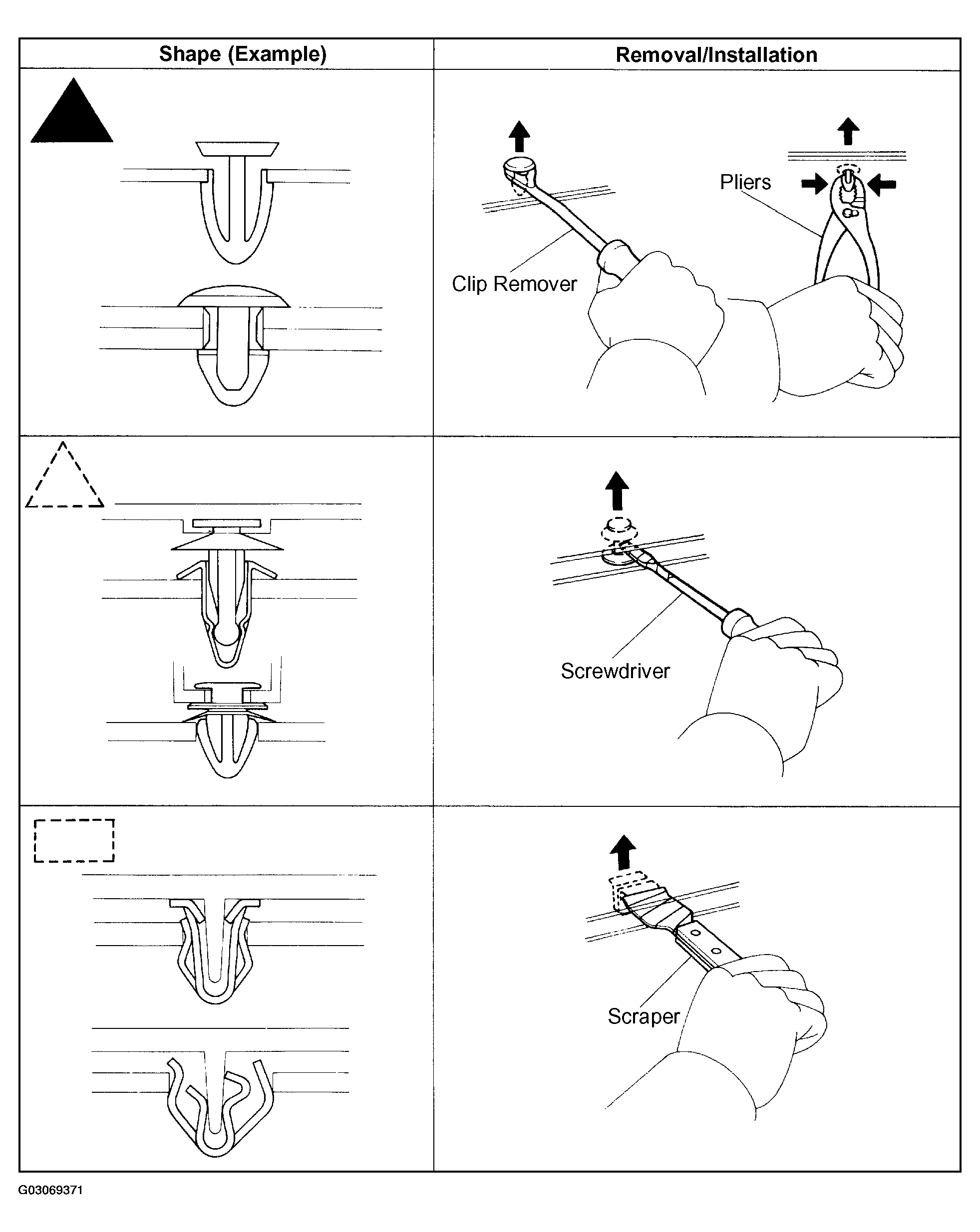

Fig 1: Removal & Installation Methods Of Typical Clips (1 Of 2)
G03069371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

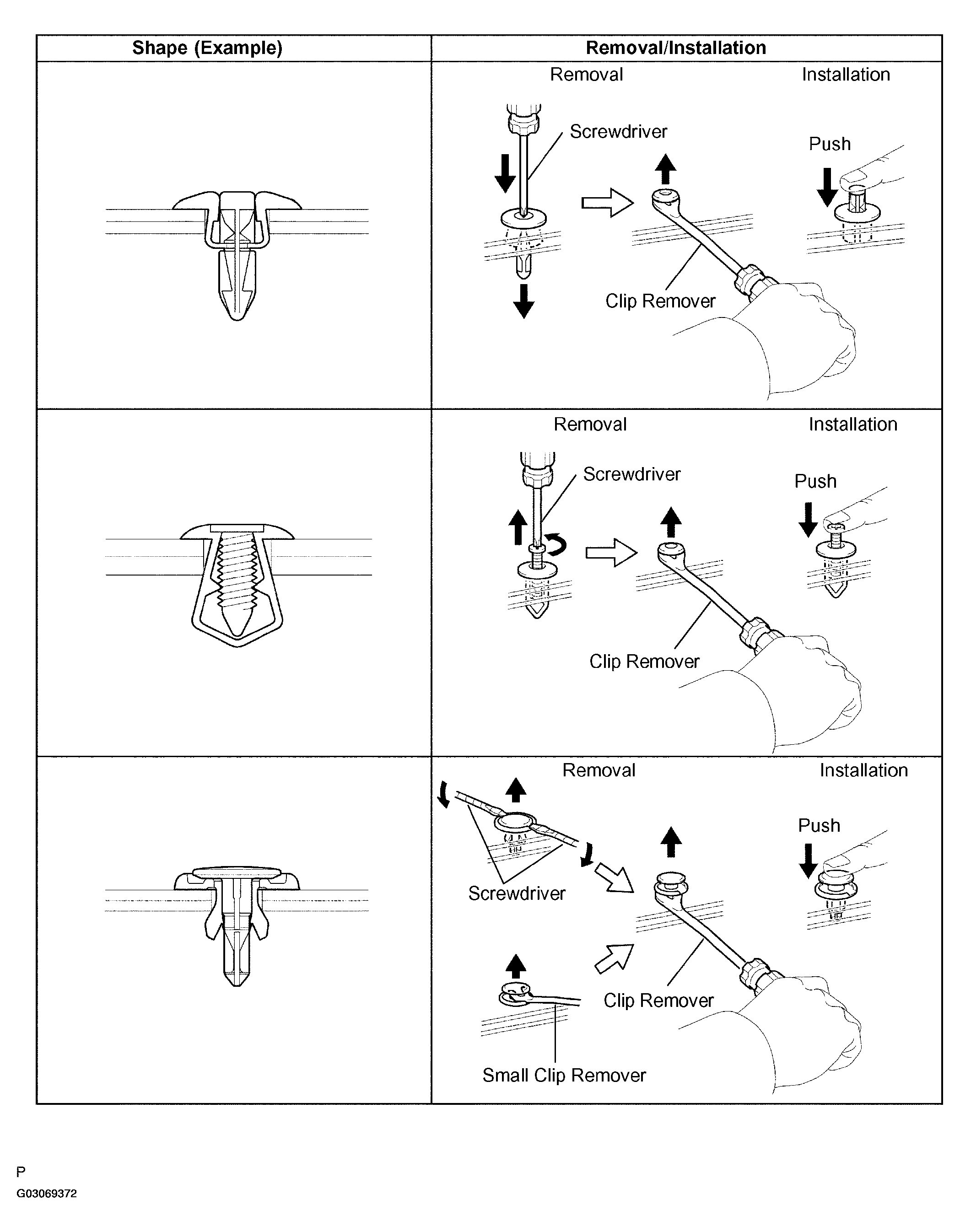

Fig 2: Removal & Installation Methods Of Typical Clips (2 Of 2)
G03069372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
