Home >> Toyota >> 2005 >> Land Cruiser >> Repair and Diagnosis >> Steering >> Power Steering >> Steering System >> Tilt Steering Column >> Components

Tilt Steering Column: Components

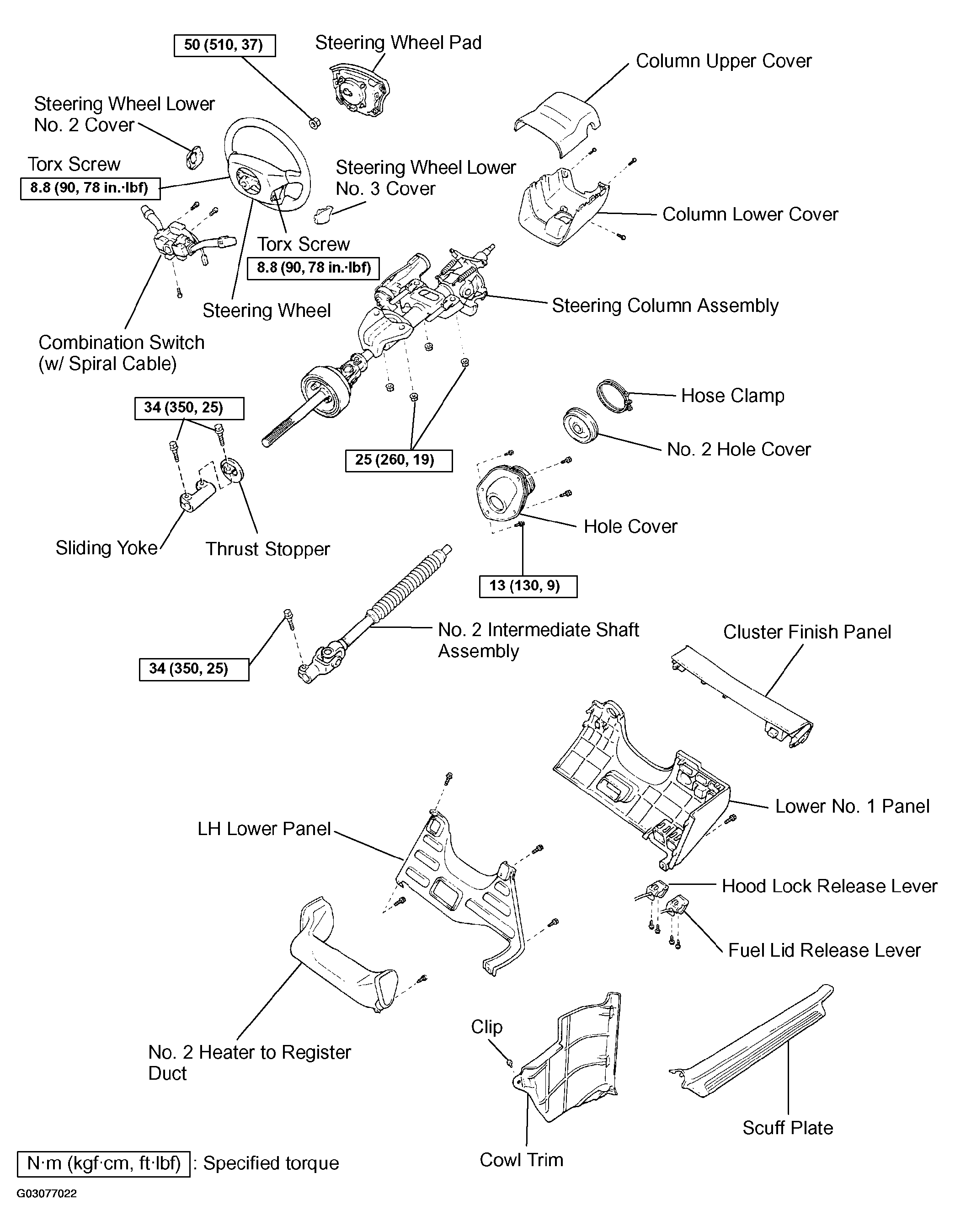

Fig 1: Exploded View Of Tilt Steering Column Components (1 Of 2)
G03077022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

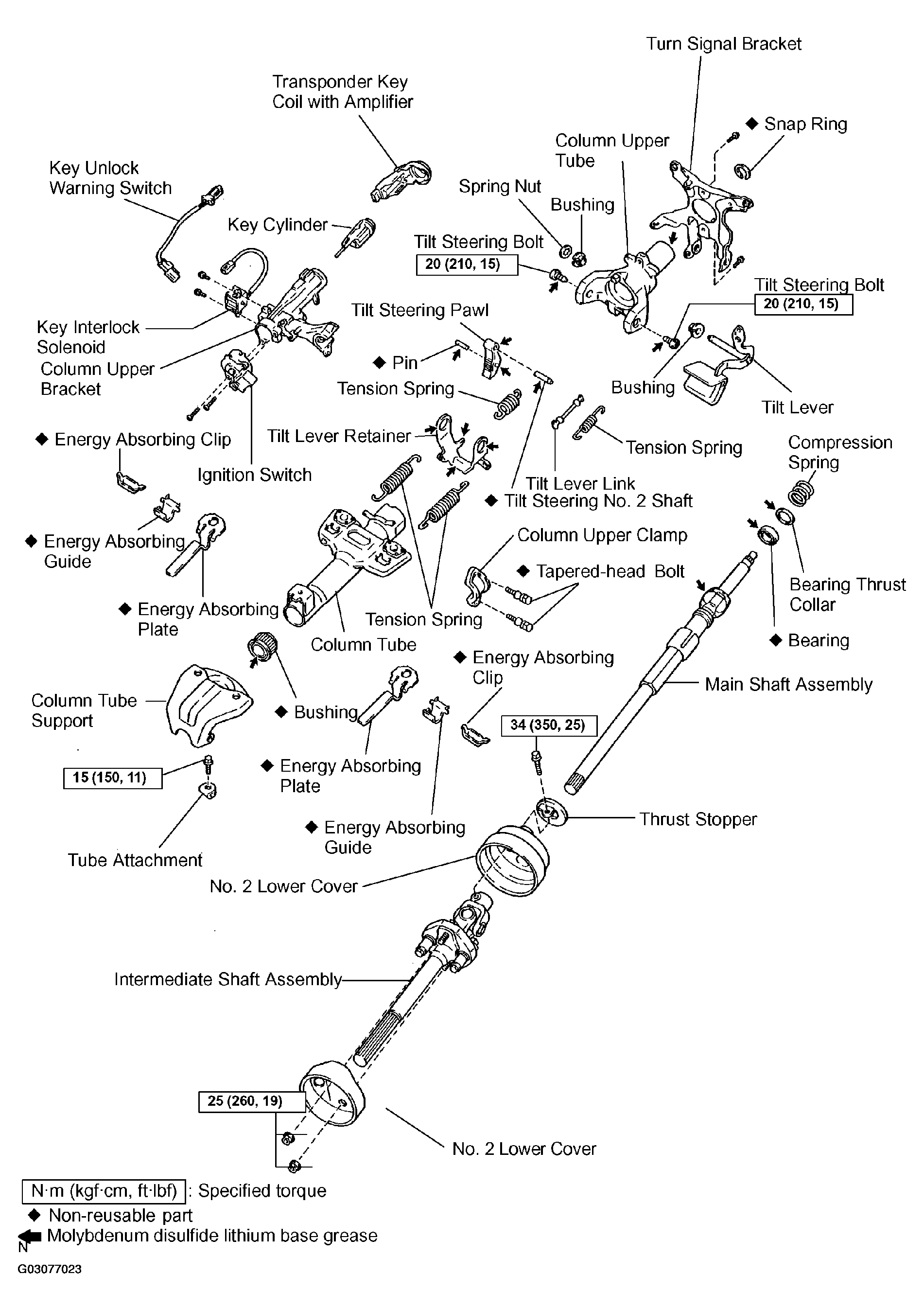

Fig 2: Exploded View Of Tilt Steering Column Components (2 Of 2)
G03077023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
