Home >> Toyota >> 2005 >> MR2 C65M >> Repair and Diagnosis >> Body & Frame >> Windows >> Front Door >> Components

Front Door: Components

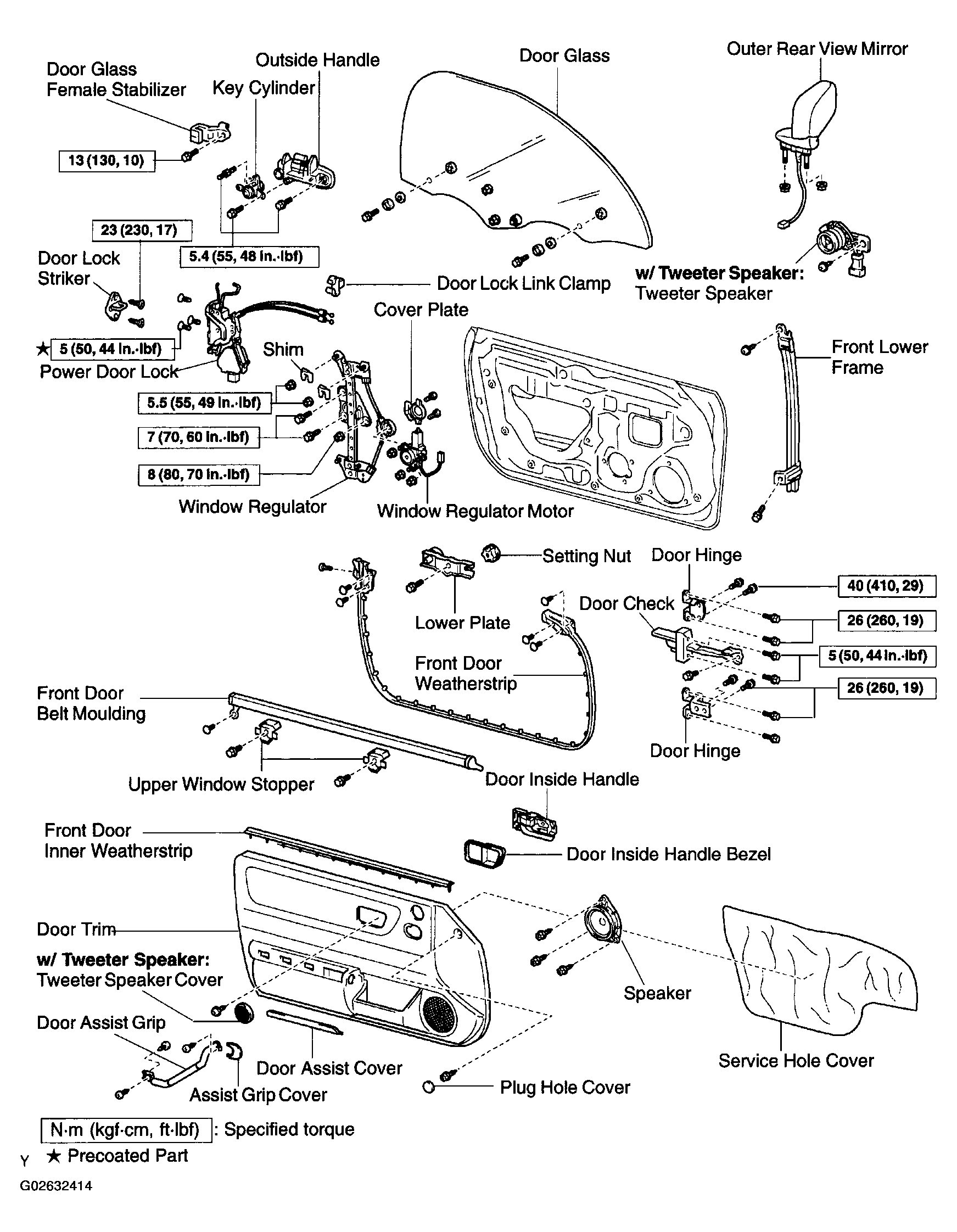

Fig 1: Exploded View Of Front Door Components
G02632414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
