Charging System: Generator: Installation

1. Install the generator with the 2 bolts.

   Torque:

   12 mm head: 25 N-m (255 kgf-cm, 18 ft. lbf)

   14 mm head: 54 N-m (550 kgf-cm, 40 ft. lbf)

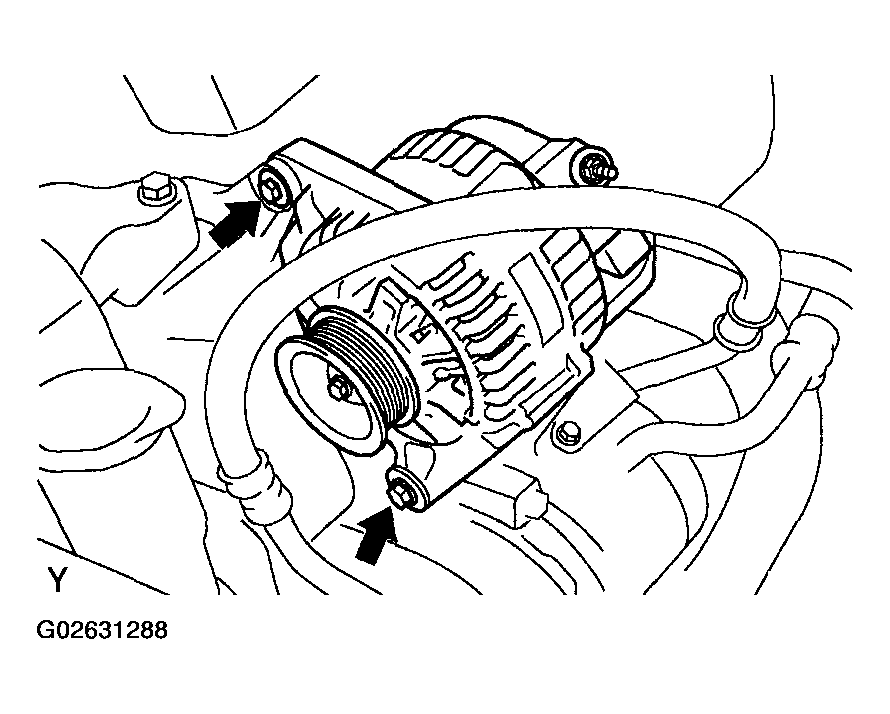

   Fig 1: Identifying Generator Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

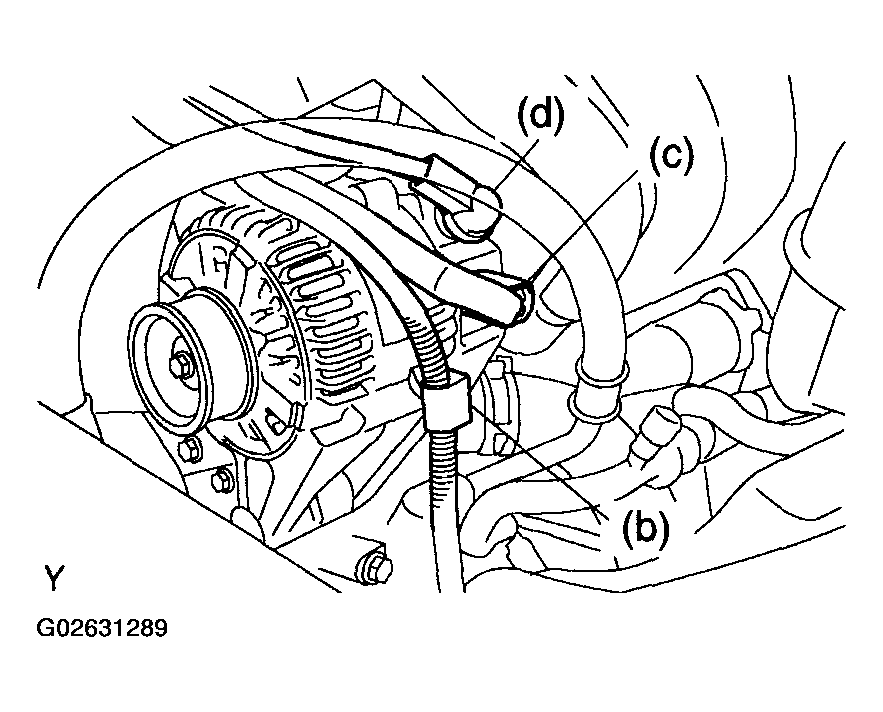

2. Connect the wire clamp to the wire clip on the rectifier end flame.
3. Connect the generator connector.
4. Connect the generator wire, and install the nut and cap.

Turn the drive belt tensioner clockwise, and install the drive belt.

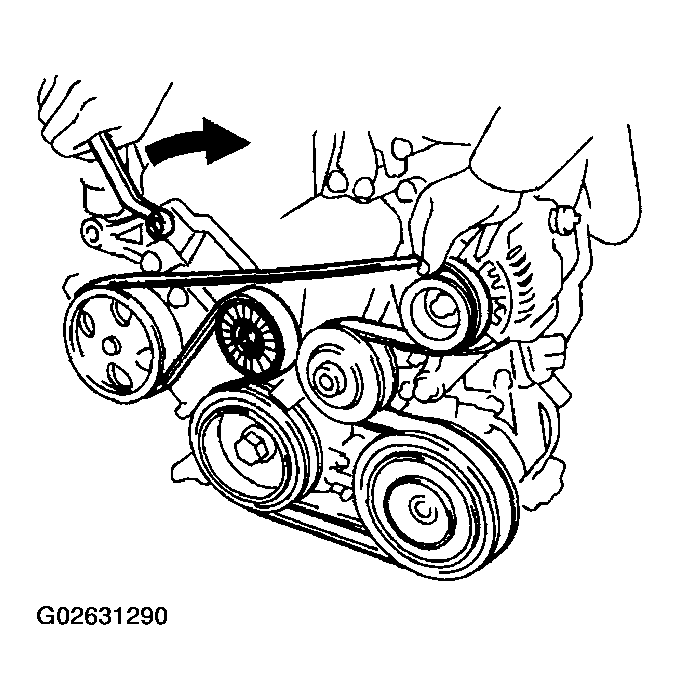

Fig 3: Turning Drive Belt Tensioner Clockwise

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
