Charging System: Generator: Removal

REMOVE DRIVE BELT
1. Turn the drive belt tensioner clockwise to relieve tension on the belt, and then remove the belt.
2. Carefully return the tensioner to the unloaded position.
REMOVE RH ENGINE MOUNTING INSULATOR (See REMOVAL )

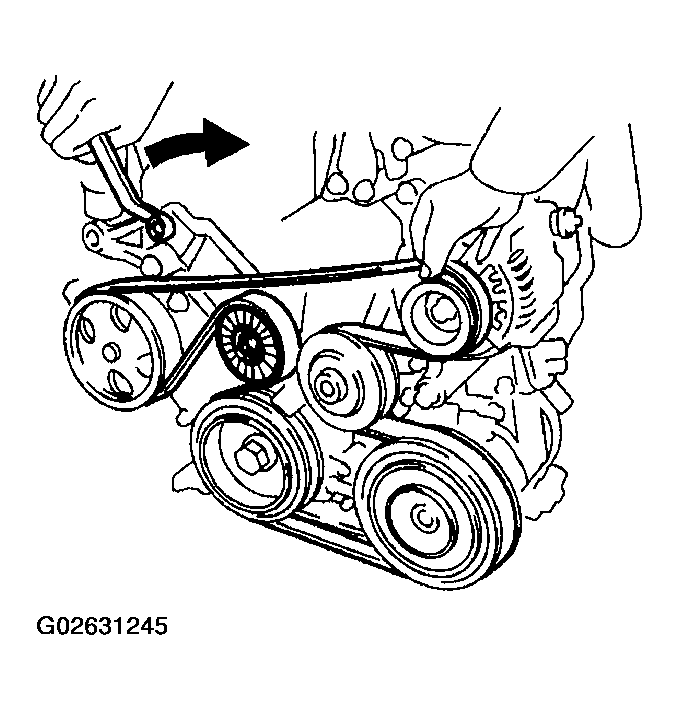

Fig 1: Turning Drive Belt Tensioner Clockwise
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE GENERATOR
1. Disconnect the wire clamp from the wire clip on the rectifier end frame.
2. Remove the cap and nut, and disconnect the generator wire.
3. Disconnect the generator connector.

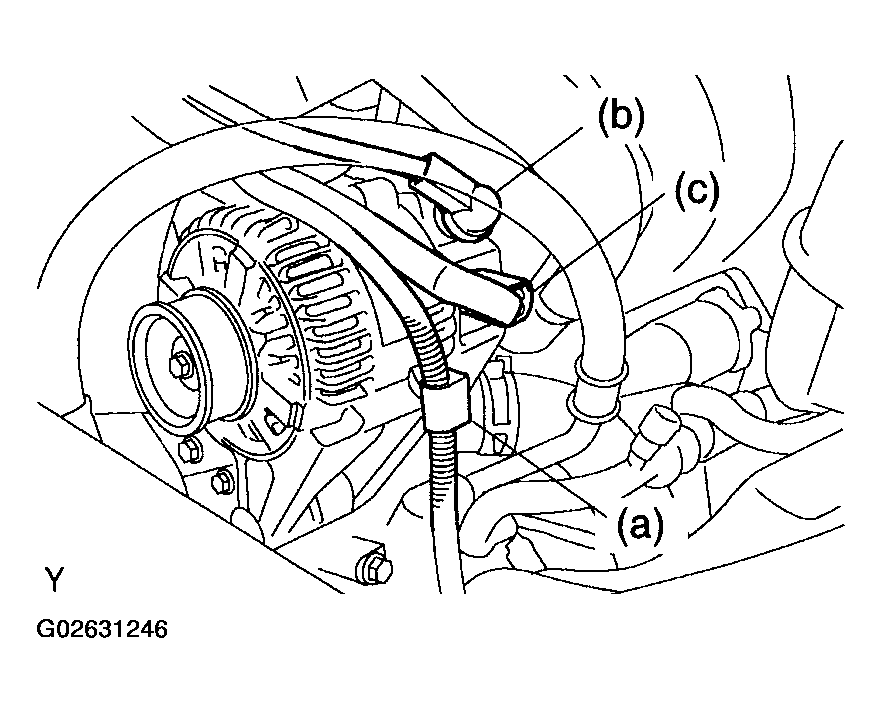

  Fig 2: Removing Generator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the 2 bolts and generator.

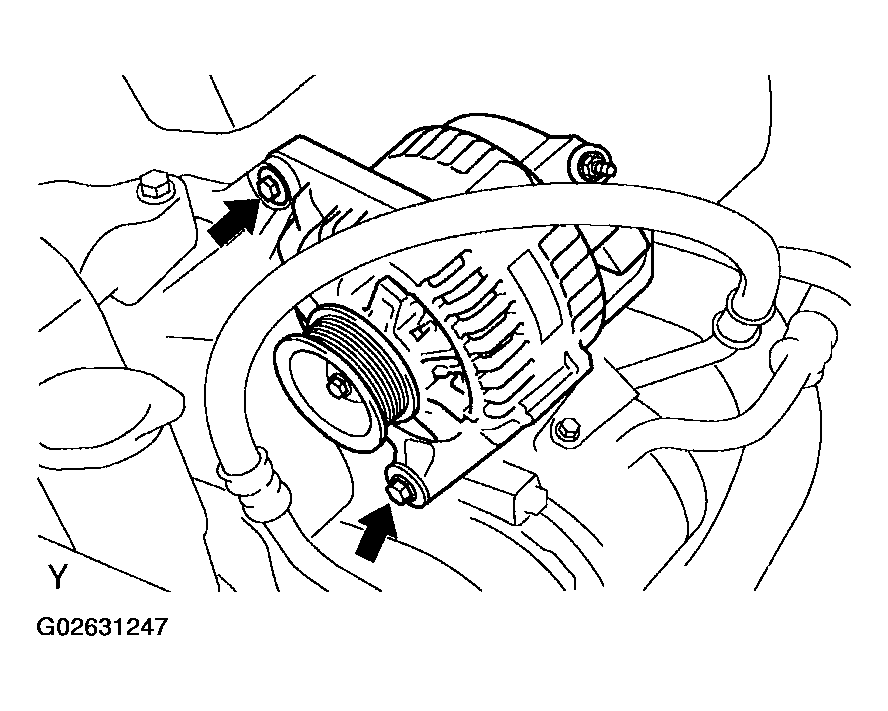

  Fig 3: Identifying Generator Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
