Charging System: Generator: Replacement

REPLACE FRONT BEARING
1. Remove the 4 screws and bearing retainer.

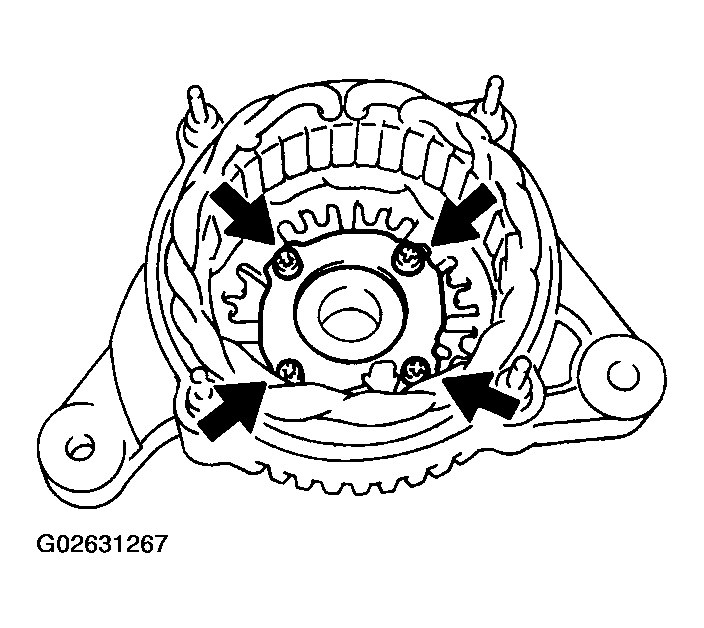

  Fig 1: Identifying Bearing Retainer Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

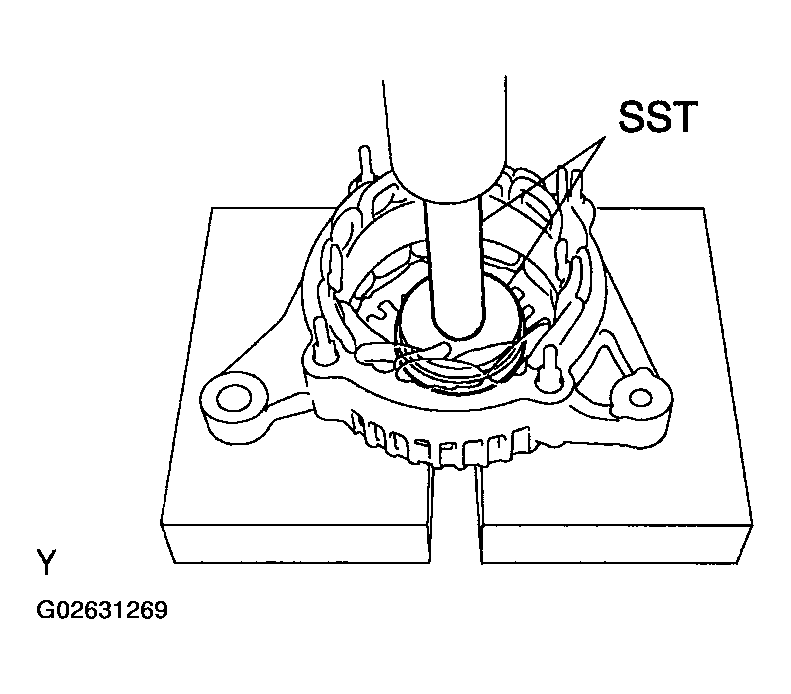

2. Using SST and a press, press out the bearing.
  SST 09950-60010 (09951-00350), 09950-70010

  (09951-07100)

  Fig 2: Removing Bearing Using SST And A Press
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using SST and a press, press in a new bearing.
  SST 09950-60010 (09951-00530), 09950-70010 (09951-07100)
4. Install the bearing retainer with the 4 screws.
  Torque: 3.0 Nm (31 kgfcm, 27 in.lbf)

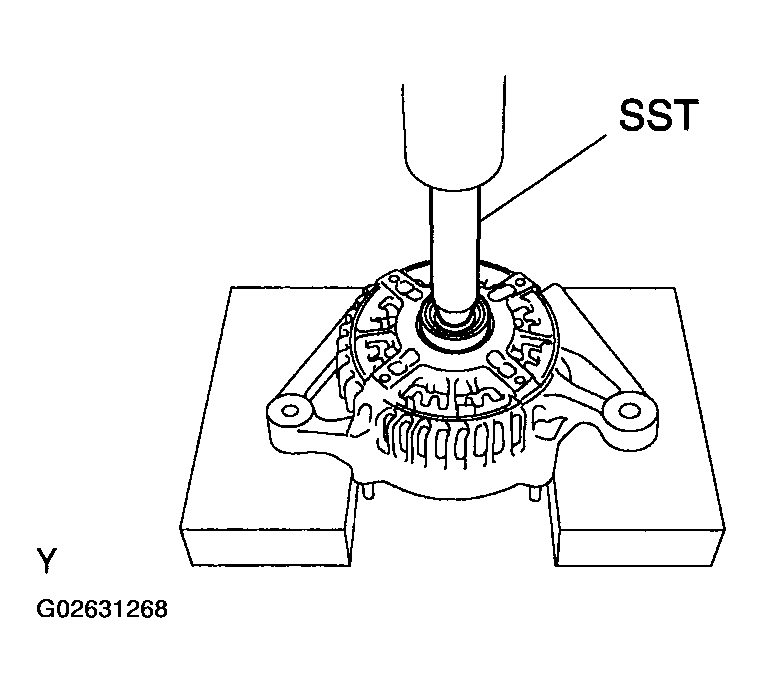

  Fig 3: Installing Bearing Using SST And A Press
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REPLACE REAR BEARING
1. Using SST, remove the bearing cover (outside) and bearing.
  SST 09820-00021

  NOTE: Be careful not to damage the fan.

  Fig 4: Removing Bearing Cover (Outside) And Bearing Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the bearing cover (inside).
3. Place the bearing cover (inside) on the rotor.

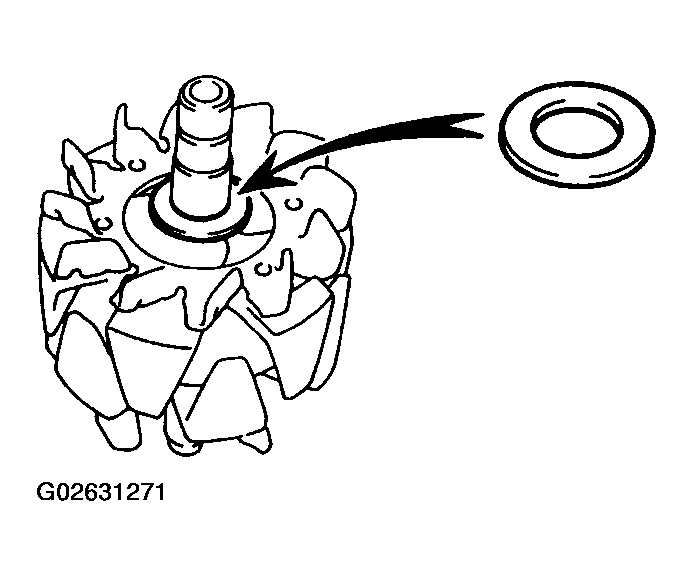

  Fig 5: Placing Bearing Cover (Inside) On Rotor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Using SST and a press, press in a new bearing.
  SST 09820-00030

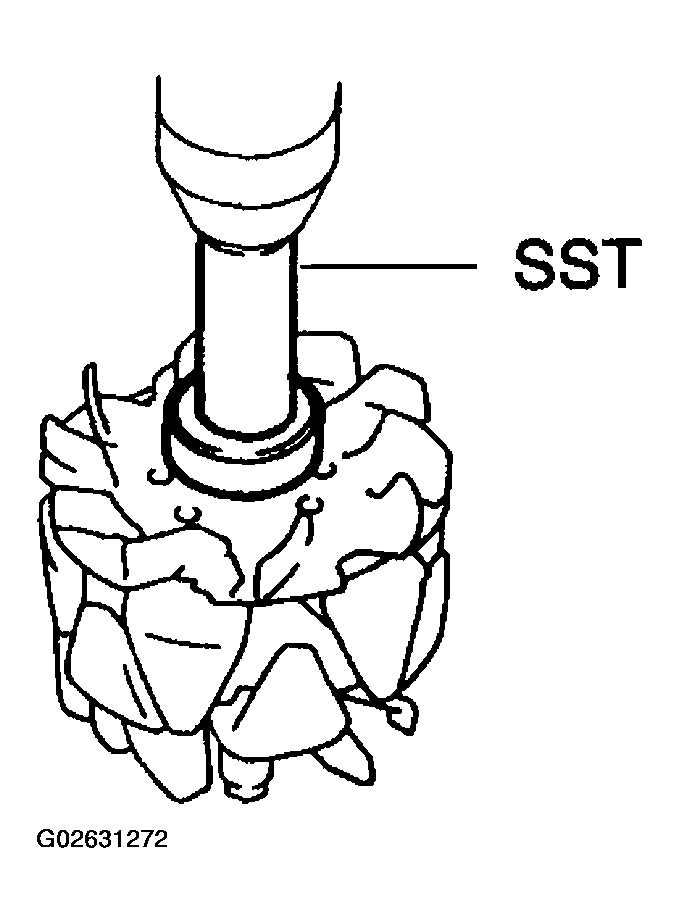

  Fig 6: Installing Bearing Using SST And A Press
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Using SST, push in the bearing cover (outside).
  SST 09285-76010

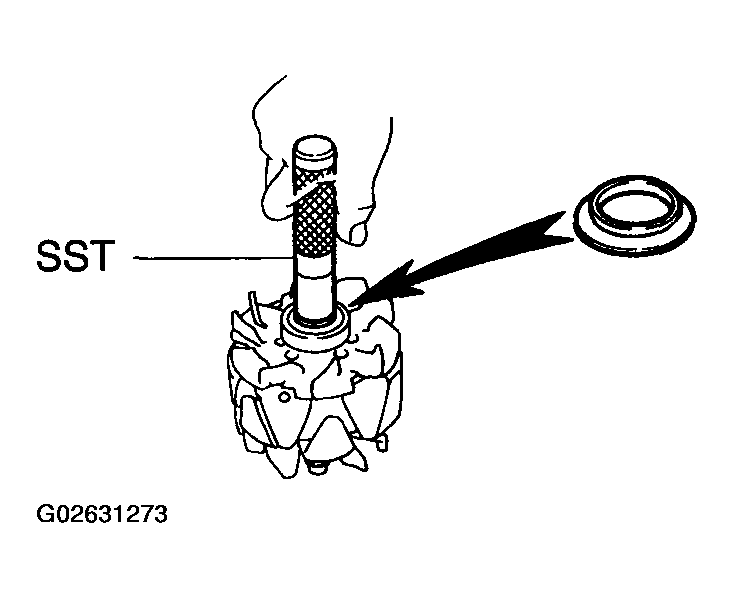

  Fig 7: Pushing In Bearing Cover (Outside) Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
