On-Vehicle Inspection

HINT:

1. INSPECT DRIVE BELT (See  FAN AND GENERATOR V BELT (2ZZ-GE)  )
2. REPLACE SPARK PLUGS (See  IGNITION SYSTEM (1ZZ-FE)  , See  IGNITION SYSTEM (2ZZ-GE)  )
3. INSPECT AIR FILTER
   1. Remove the air filter.
   2. Visually check that the air filter is not excessively damaged, dirty or oily.

      Replace the air filter if necessary.

   3. Clean the filter with compressed air.

      First blow from the inside of the filter thoroughly then repeat from the outside.

   4. Reinstall the air filter.

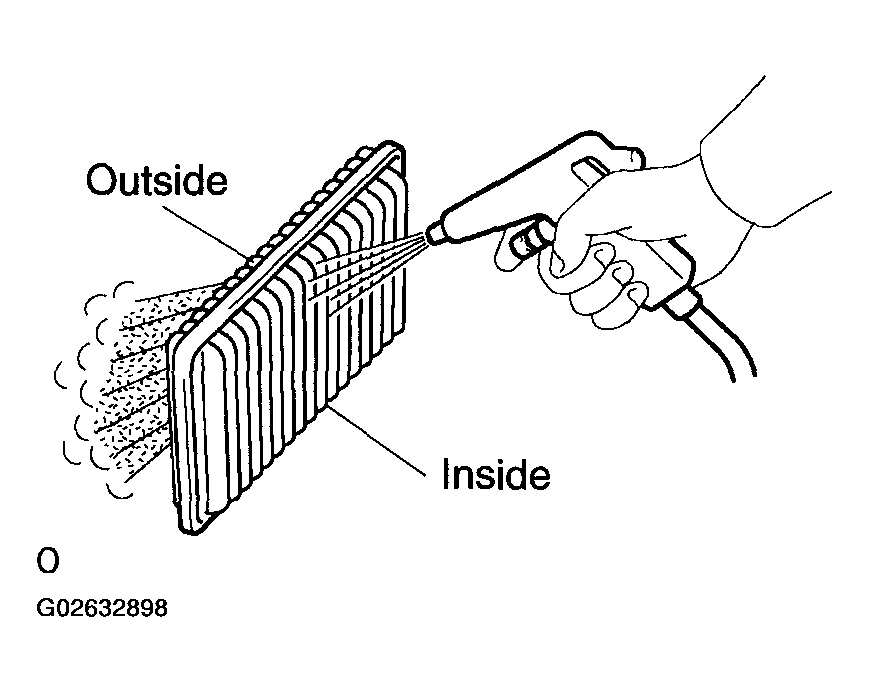

      Fig 1: Cleaning Air Filter With Compressed Air

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. REPLACE AIR FILTER
   1. Replace the air filter with a new one.
5. REPLACE ENGINE OIL AND OIL FILTER

   (See  OIL FILTER SUB-ASSY (1ZZ-FE)  , See  OIL FILTER SUB-ASSY (2ZZ-GE)  )

6. REPLACE ENGINE COOLANT (See  ENGINE COOLANT (1ZZ-FE)  , See  ENGINE COOLANT (2ZZ-GE)  )
7. INSPECT GASKET IN FUEL TANK CAP

   (See  EMISSION CONTROL SYSTEM (1ZZ-FE(FF))  , See  EMISSION CONTROL SYSTEM (2ZZ-GE)  )

8. INSPECT FUEL LINES AND CONNECTIONS, FUEL TANK VAPOR VENT SYSTEM HOSES AND FUEL TANK BANDS
   1. Visually check the fuel lines for cracks, leakage, loose connections, deformation or tank band looseness.
9. INSPECT EXHAUST PIPES AND MOUNTINGS
   1. Visually check the pipes, hangers and connections for severe corrosion, leaks or damage.
10. INSPECT VALVE CLEARANCE (See  VALVE CLEARANCE (1ZZ-FE)  , See  VALVE CLEARANCE (2ZZ-GE)  )
