Back Door Glass
>>
Components
Back Door Glass: Components

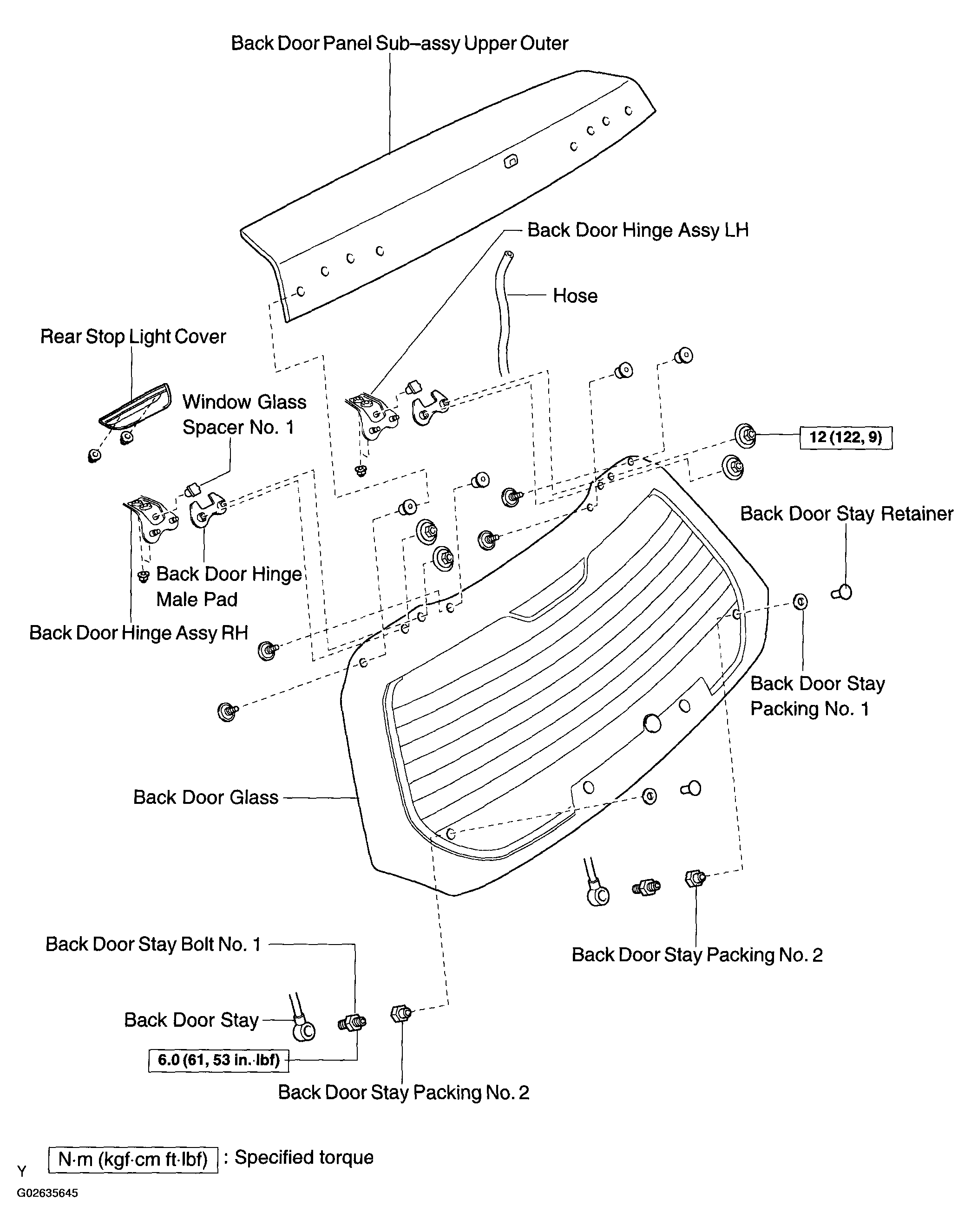

Fig 1: Back Door Glass Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
