Quarter Window ASSY LH: Components

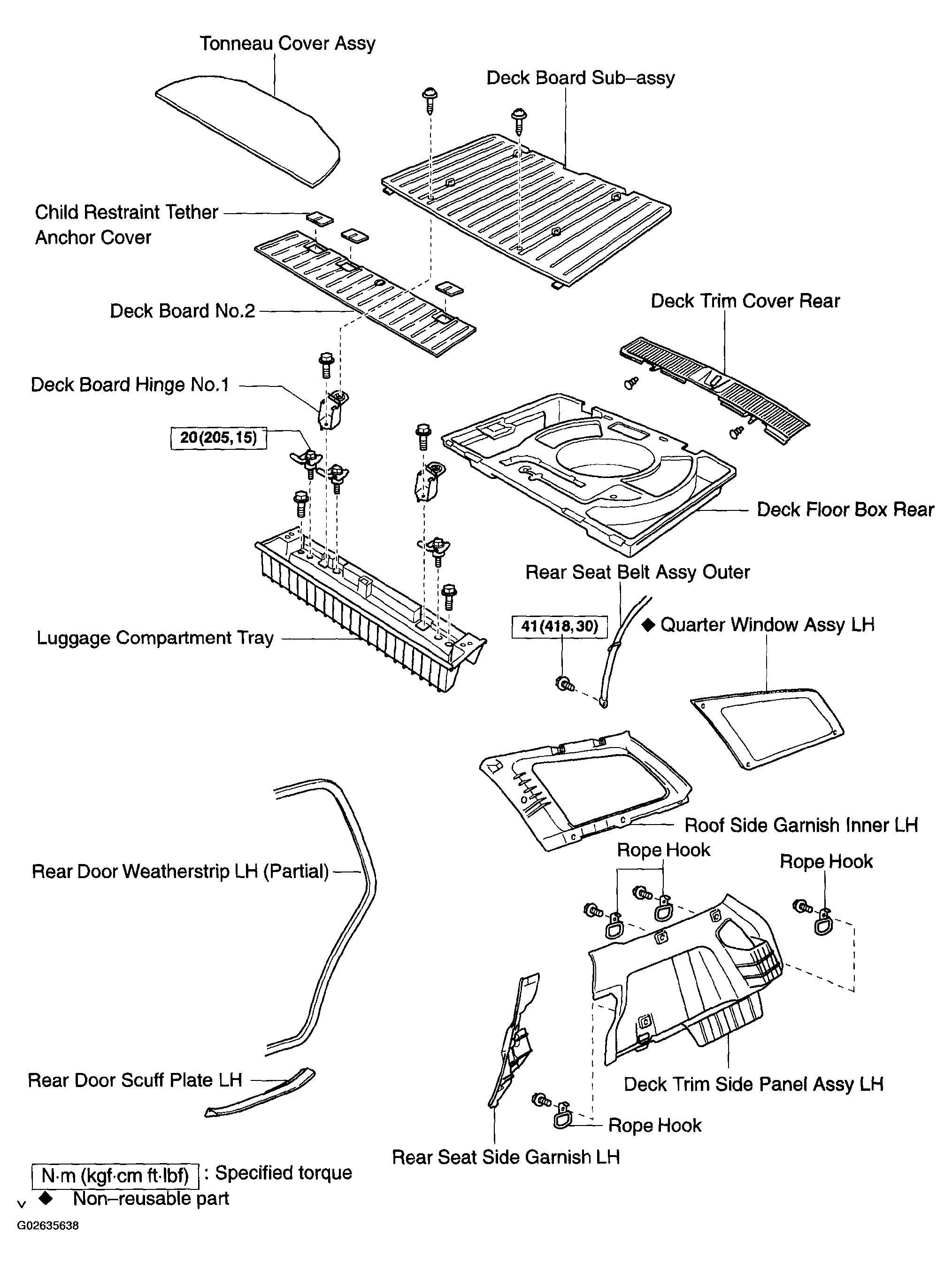

Fig 1: Quarter Window Assy LH Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
