Home >> Toyota >> 2005 >> Matrix Base, FWD, Automatic >> Repair and Diagnosis >> Body & Frame >> Windows >> Windshield/WINDOWGLASS/Mirror >> Power Window Control System >> Location

Power Window Control System: Location

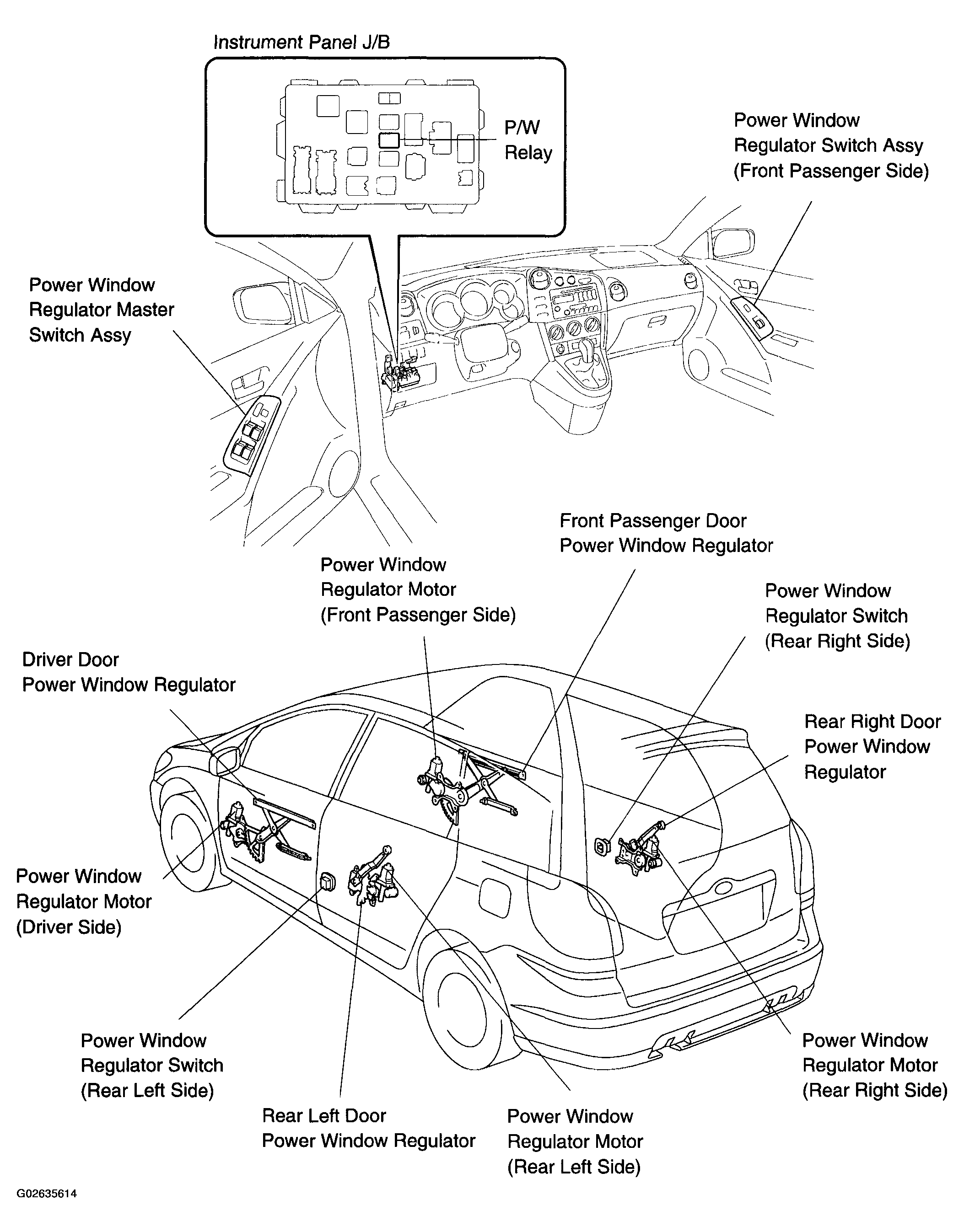

Fig 1: Identifying Power Window Control System Components Location

G02635614

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
