Steering Column ASSY: Components

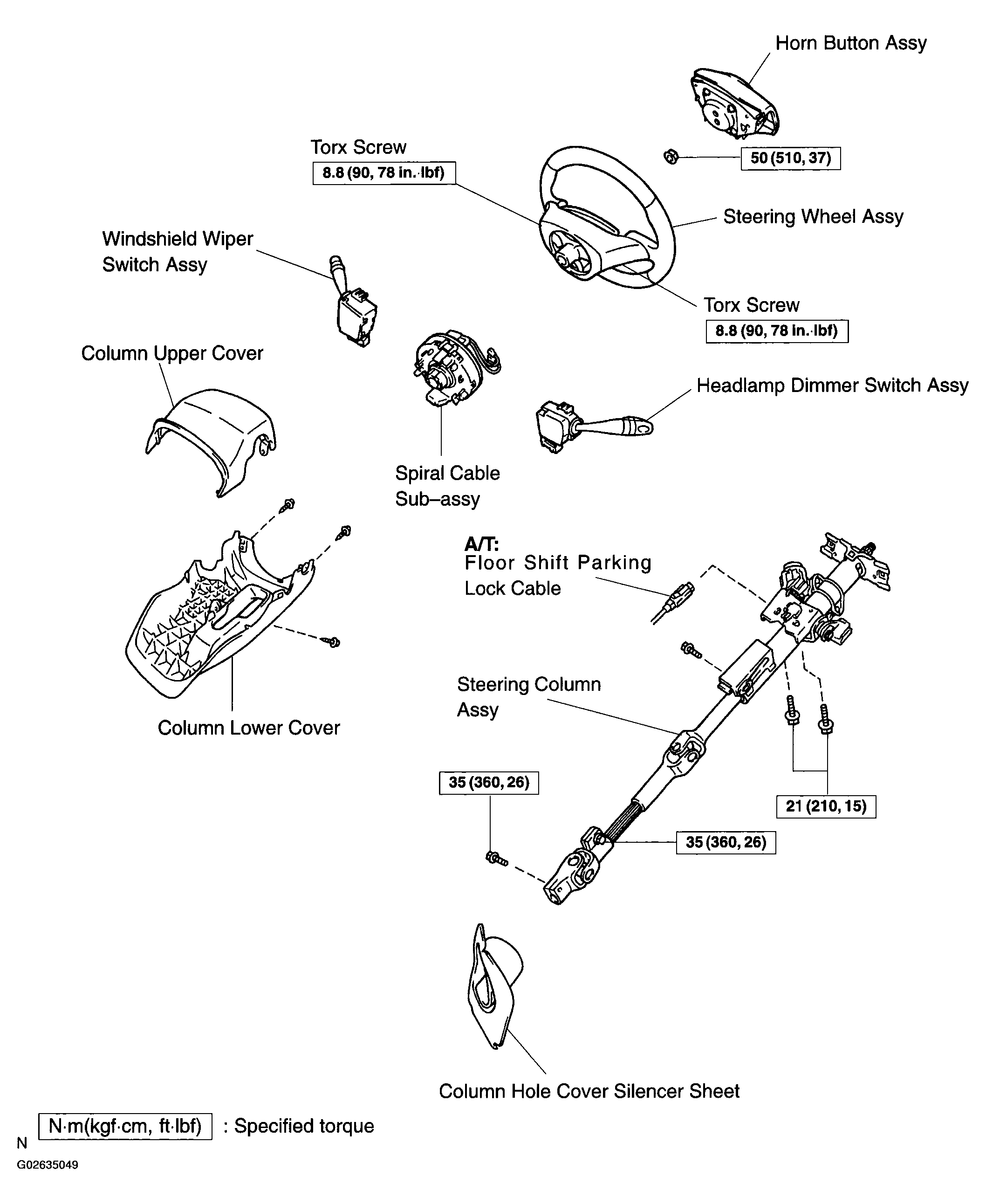

Fig 1: Steering Column Assy Replacement Components With Torque Specifications
G02635049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

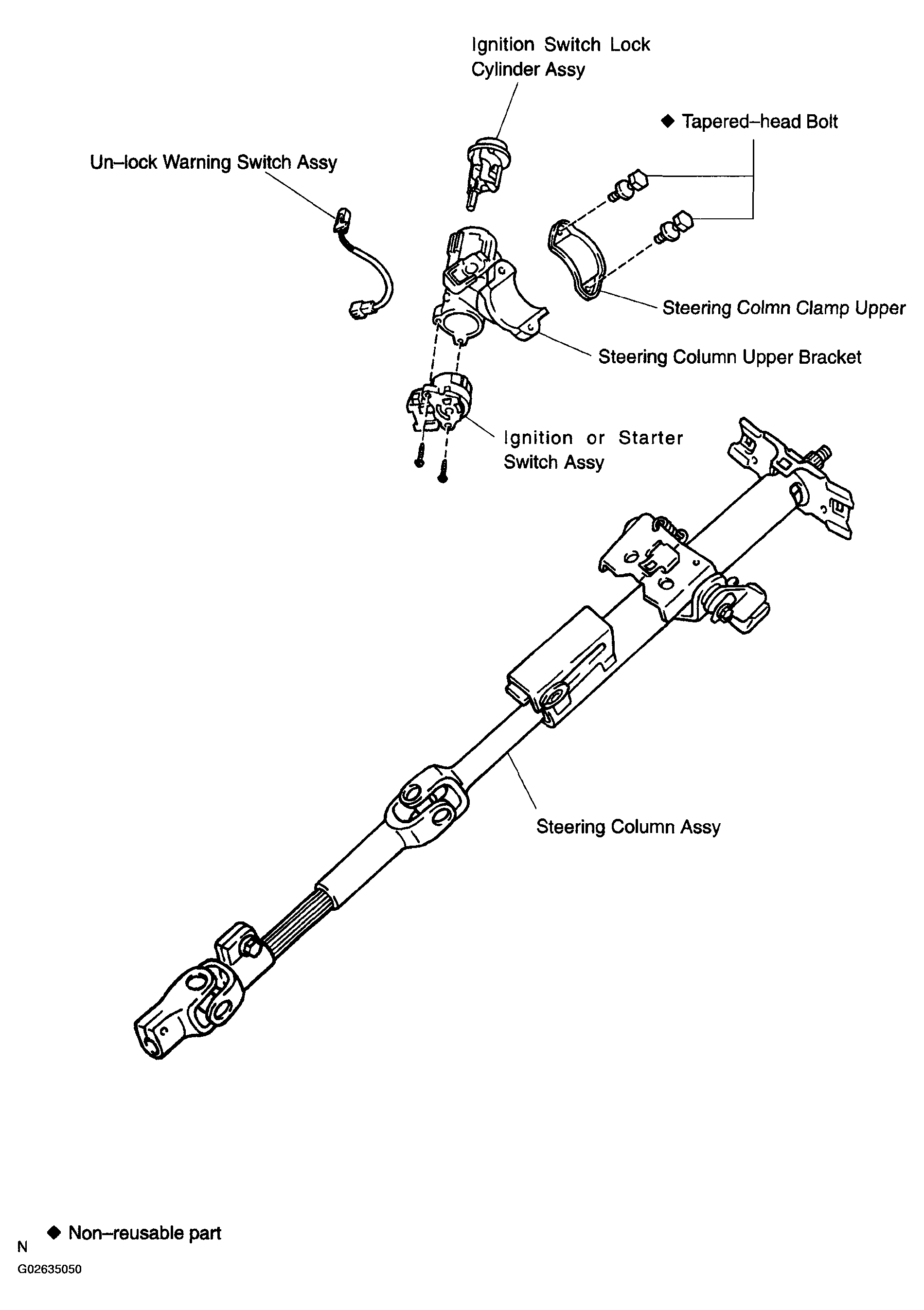

Fig 2: Identifying Steering Column Assy Components
G02635050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
