Home >> Toyota >> 2005 >> Prius >> Repair and Diagnosis >> Body & Frame >> Windows >> Windshield System, WINDOWGLASS System & Mirror System >> Quarter Window >> Components

Quarter Window: Components

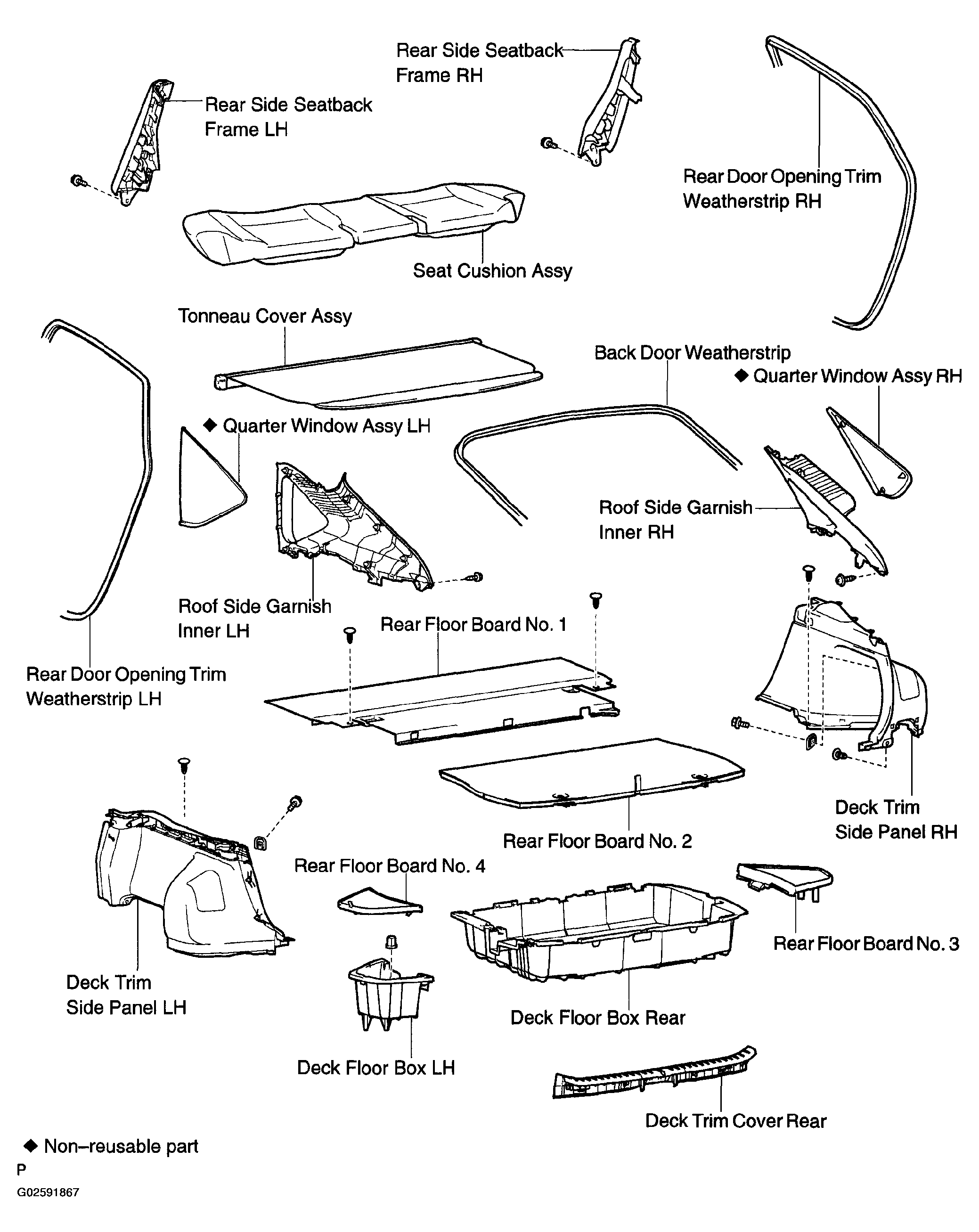

Fig 1: Identifying Component Location Of Quarter Window

G02591867

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
