Window Defogger System: Location

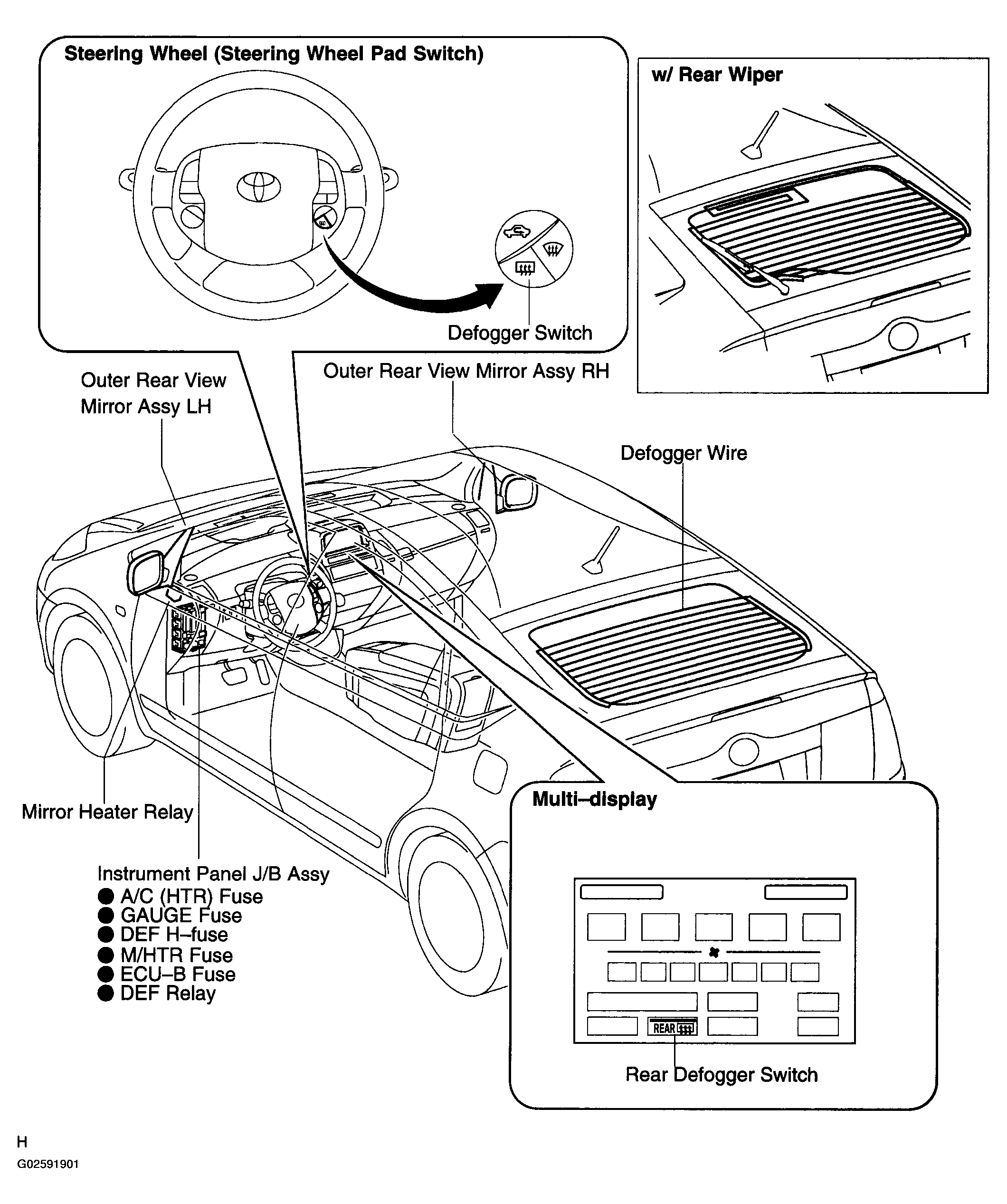

Fig 1: Identifying Component Location Of Window Defogger System (1 Of 2)
G02591901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

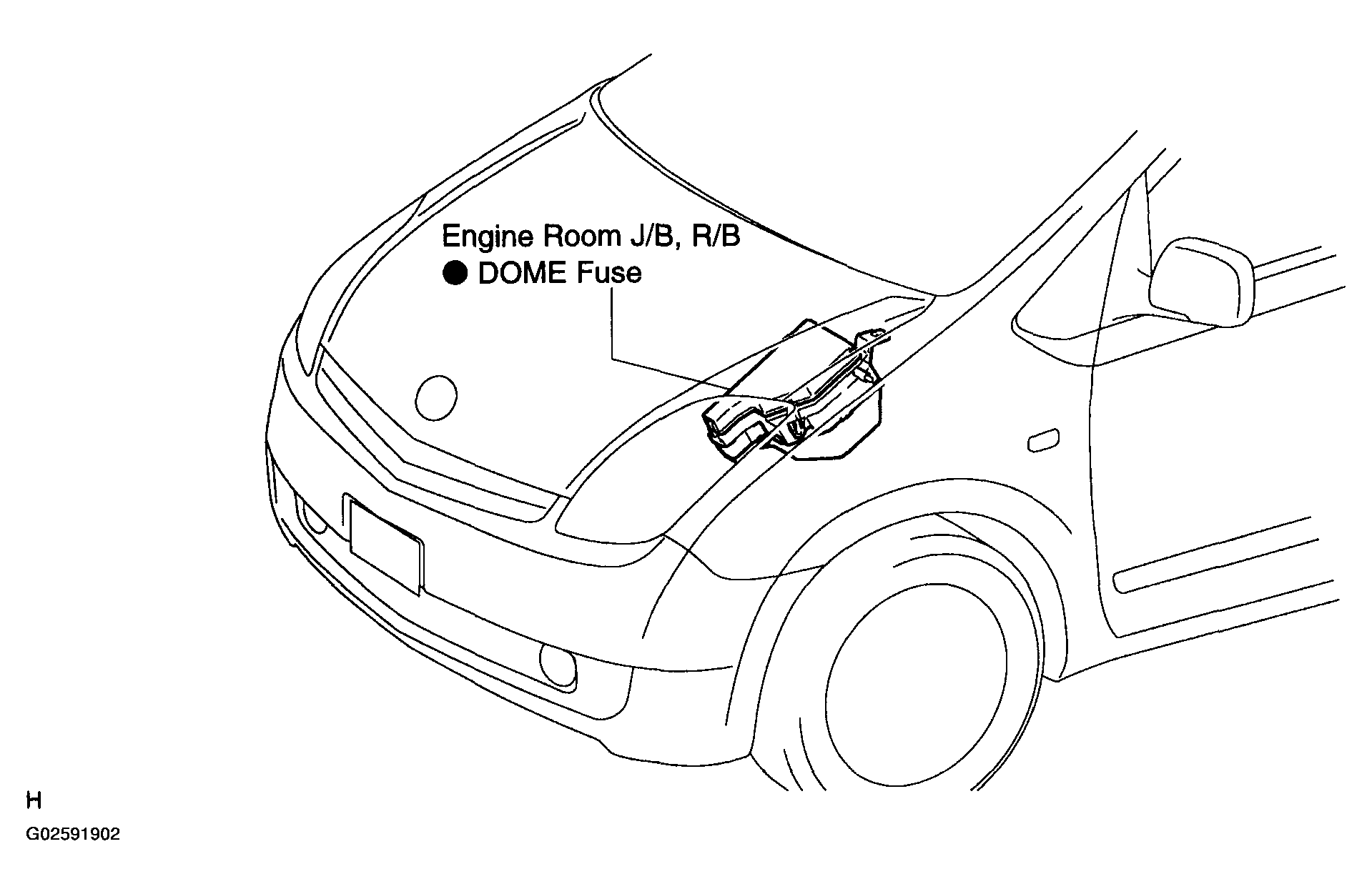

Fig 2: Identifying Component Location Of Window Defogger System (2 Of 2)
G02591902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
