Windshield Glass
>>
Components
Windshield Glass: Components

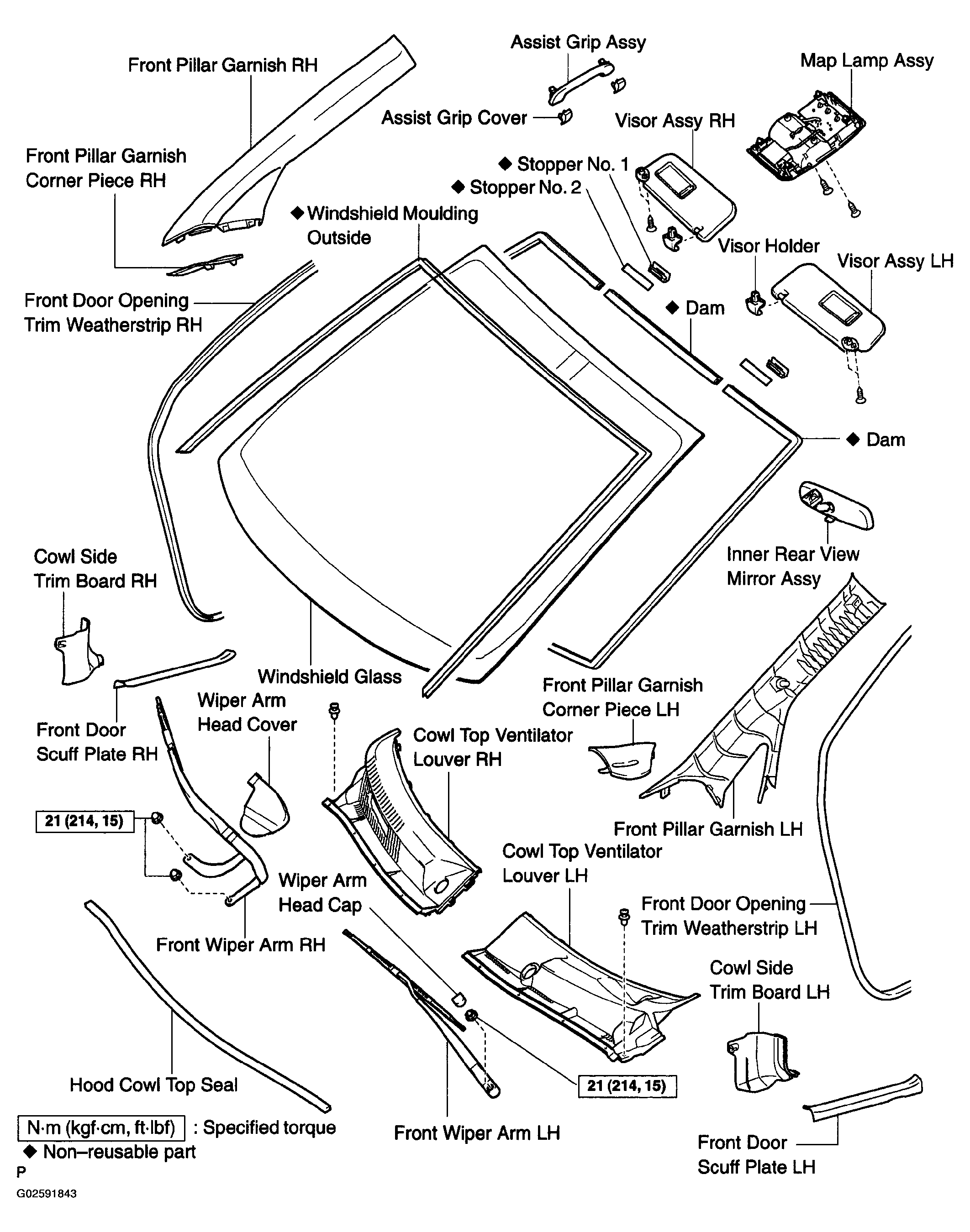

Fig 1: Component Location Of Windshield Glass And Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
