Console Box Sub-ASSY Rear: Replacement

HINT:

Installation is in the reverse order of removal.
COMPONENTS: SEE INSTRUMENT PANEL/METER

REMOVE CONSOLE PANEL SUB-ASSY UPPER

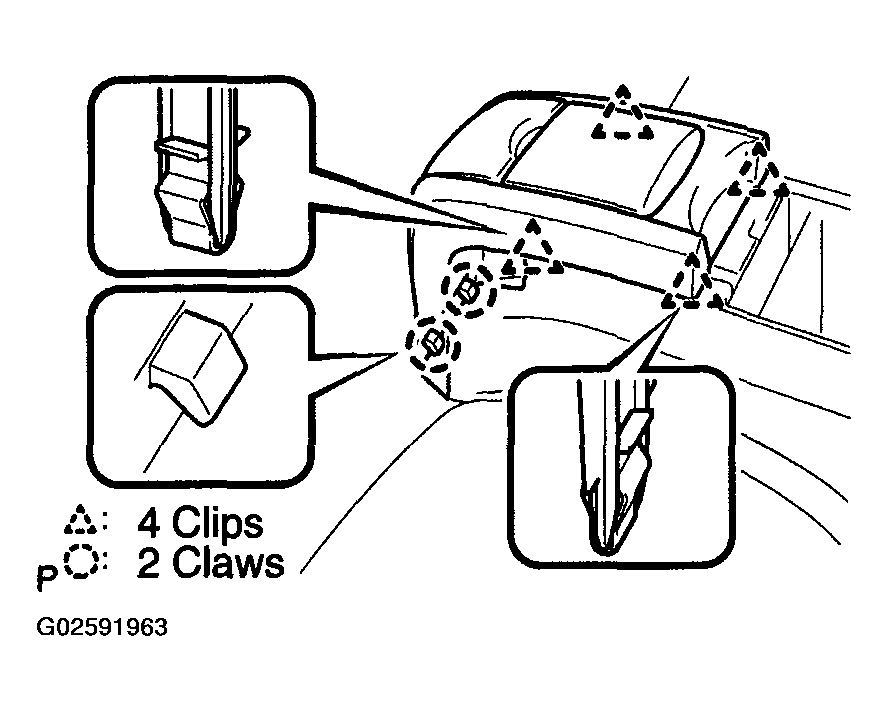

1. Pull the console panel sub-assy upper upwards and then disengage the 2 claws.
2. Disengage the 4 clips and then remove the console panel sub-assy upper.

  Fig 1: Disengaging 4 Clips And Removing Console Panel Sub-Assy Upper
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

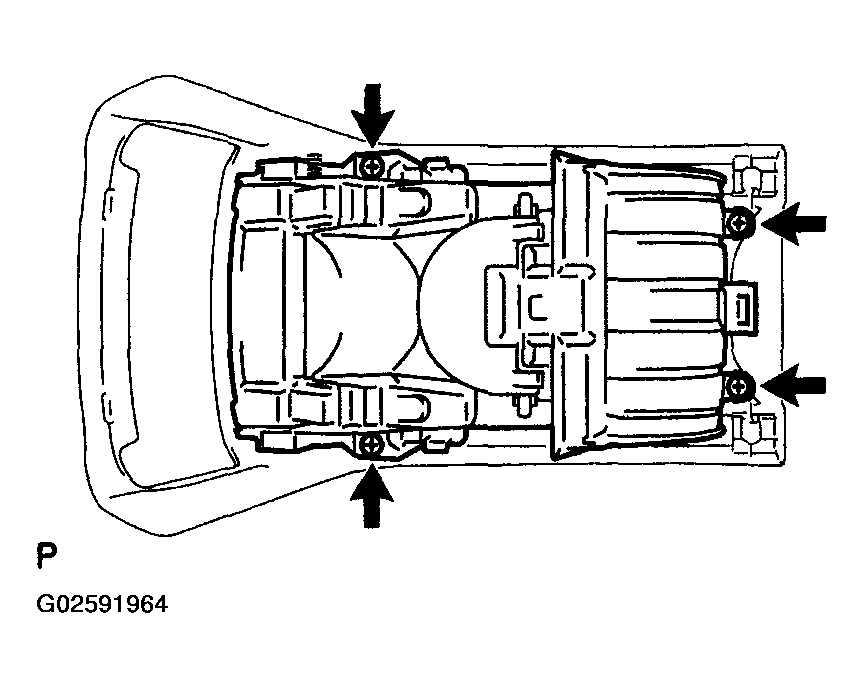

  1. Remove the 4 screws and then the installment panel cup holder.
Fig 2: Removing 4 Screws And Installment Panel Cup Holder
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CONSOLE BOX POCKET
REMOVE CONSOLE BOX CARPET
REMOVE CONSOLE REAR END PANEL SUB-ASSY

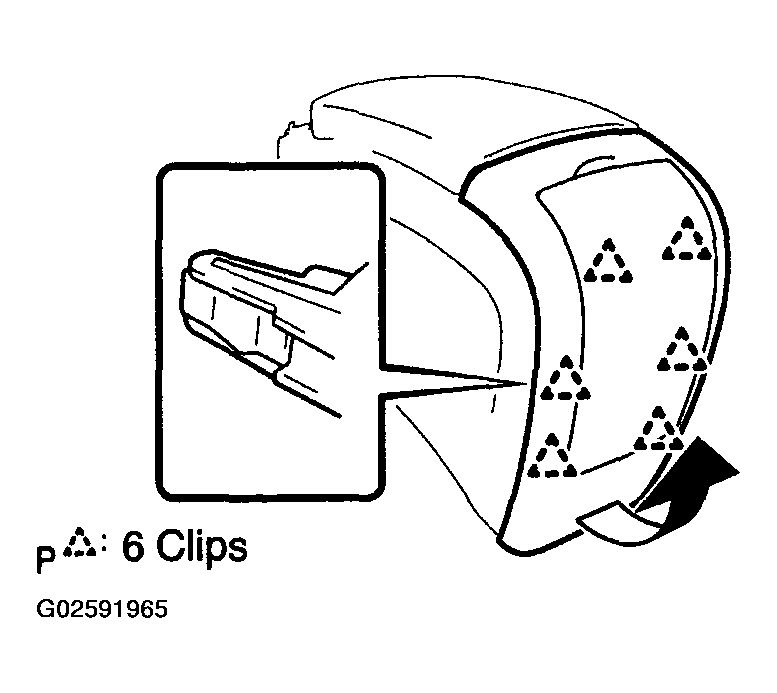

1. Pull up the console rear end panel sub-assy in the direction indicated by the arrow to disengage the 6 clips, and remove.
Fig 3: Disengaging 6 Clips
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

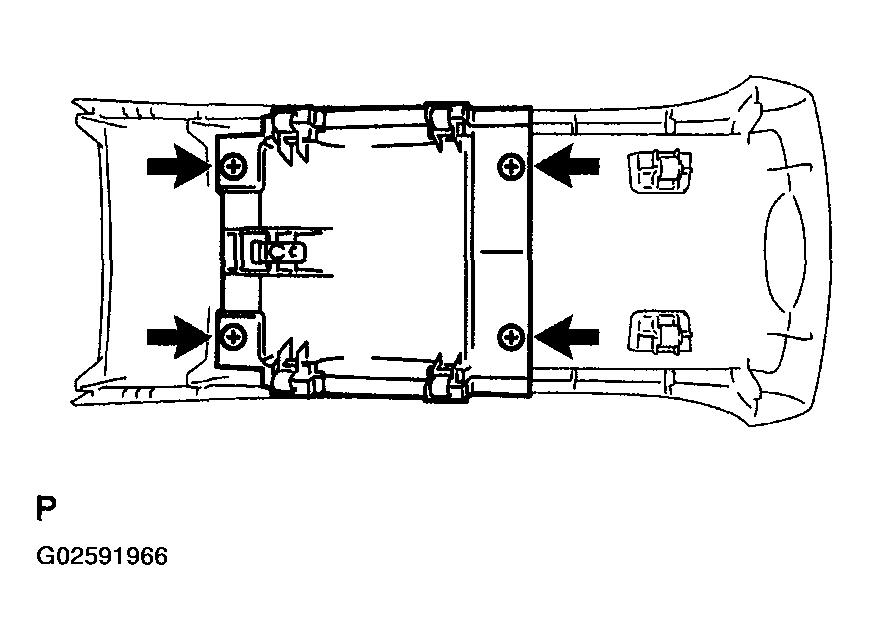

1. Remove the 4 screws and then the rear console box cup holder.
Fig 4: Removing 4 Screws And Rear Console Box Cup Holder
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CONSOLE BOX ASSY RR

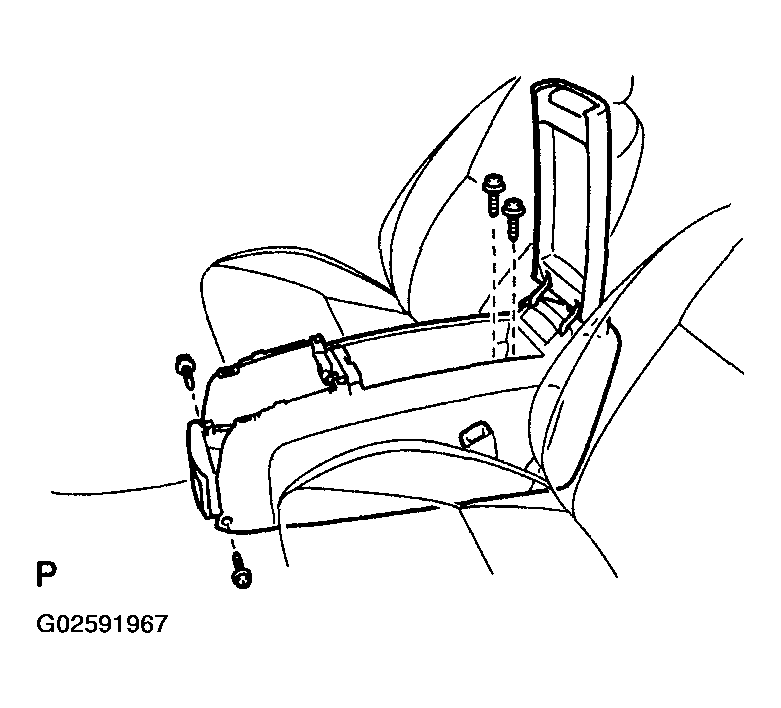

1. Remove the 2 screws, the 2 bolts, and then the console box assy RR.
Fig 5: Removing Screws And Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE INSTRUMENT PANEL WIRE NO.4
REMOVE POWER POINT SOCKET ASSY RR (SEE POWER POINT SOCKET ASSY RR )
REMOVE POWER OUTLET SOCKET COVER RR
REMOVE CONSOLE COMPARTMENT DOOR SUB-ASSY REAR
HINT:

While the console compartment door sub-assy rear is part of the console box RR, it may be replaced on its own. Refer to the procedure below when removing.

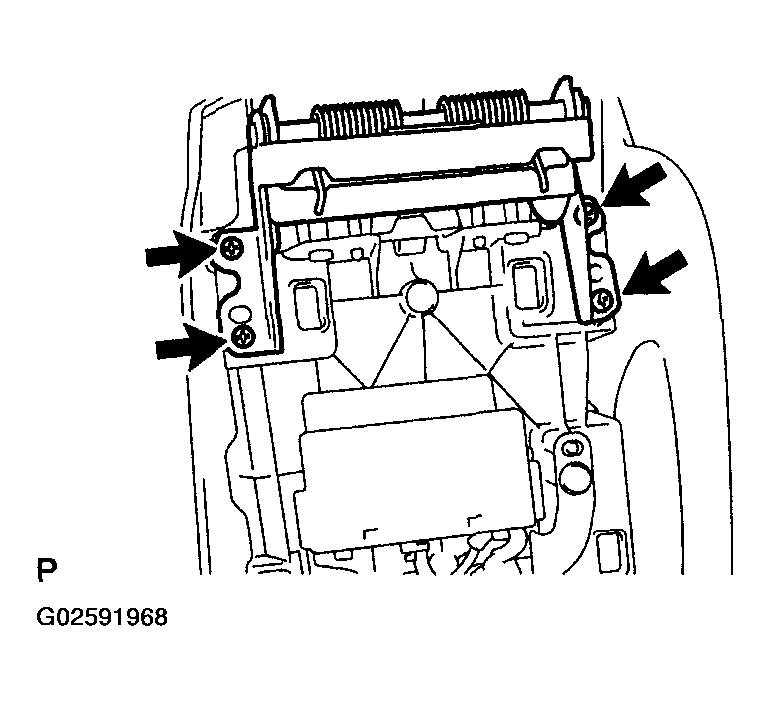

1. Remove the 4 screws and then the console compartment door sub-assy rear.
NOTE: If the screws are removed while the door is closed, the hinge spring may cause the screws to fly out. Because of this, be sure to remove the screws while the door is open.

Fig 6: Removing 4 Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
