Knock Sensor (1NZ-FXE): Components

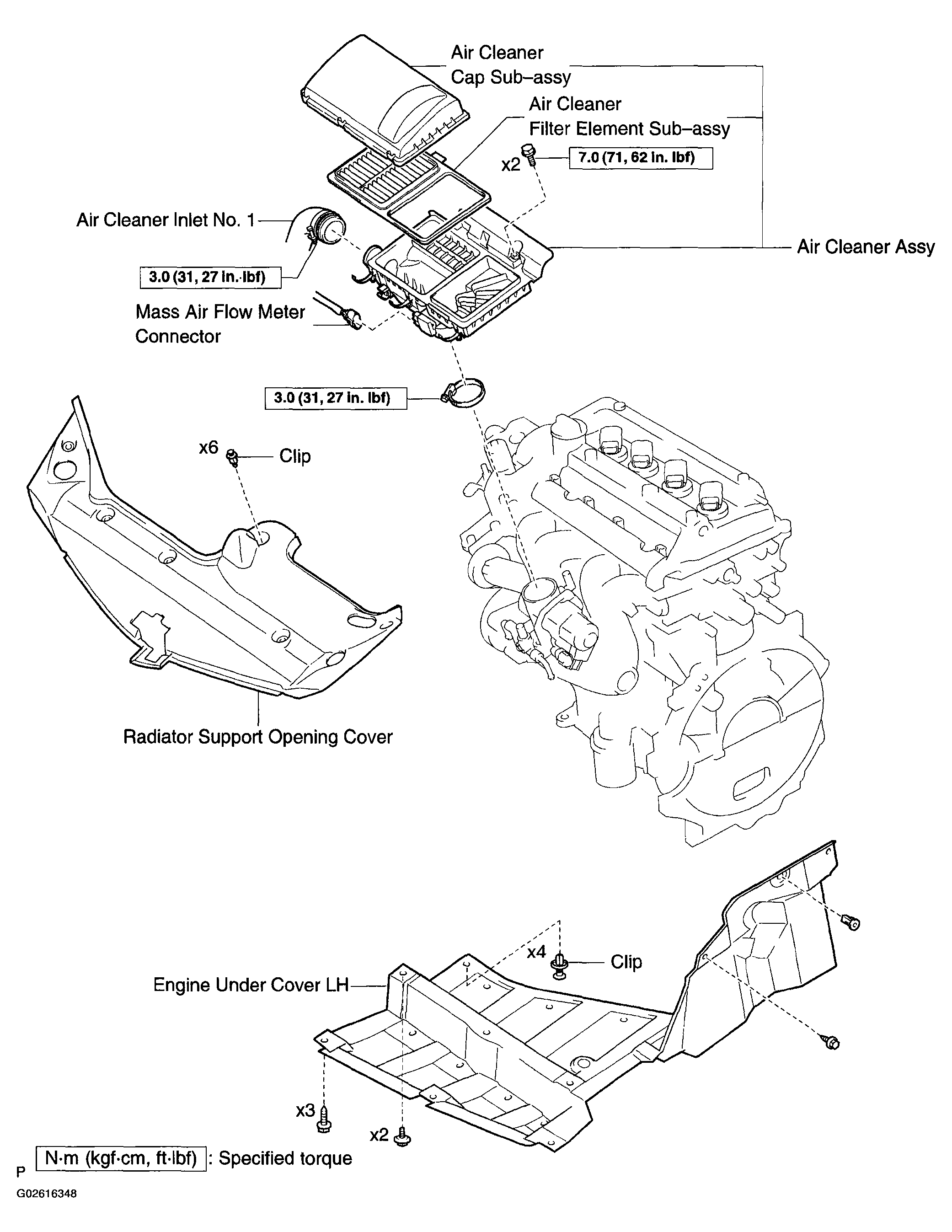

Fig 1: Identifying Knock Sensor Component (1NZ-FXE - 1 Of 2)
G02616348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

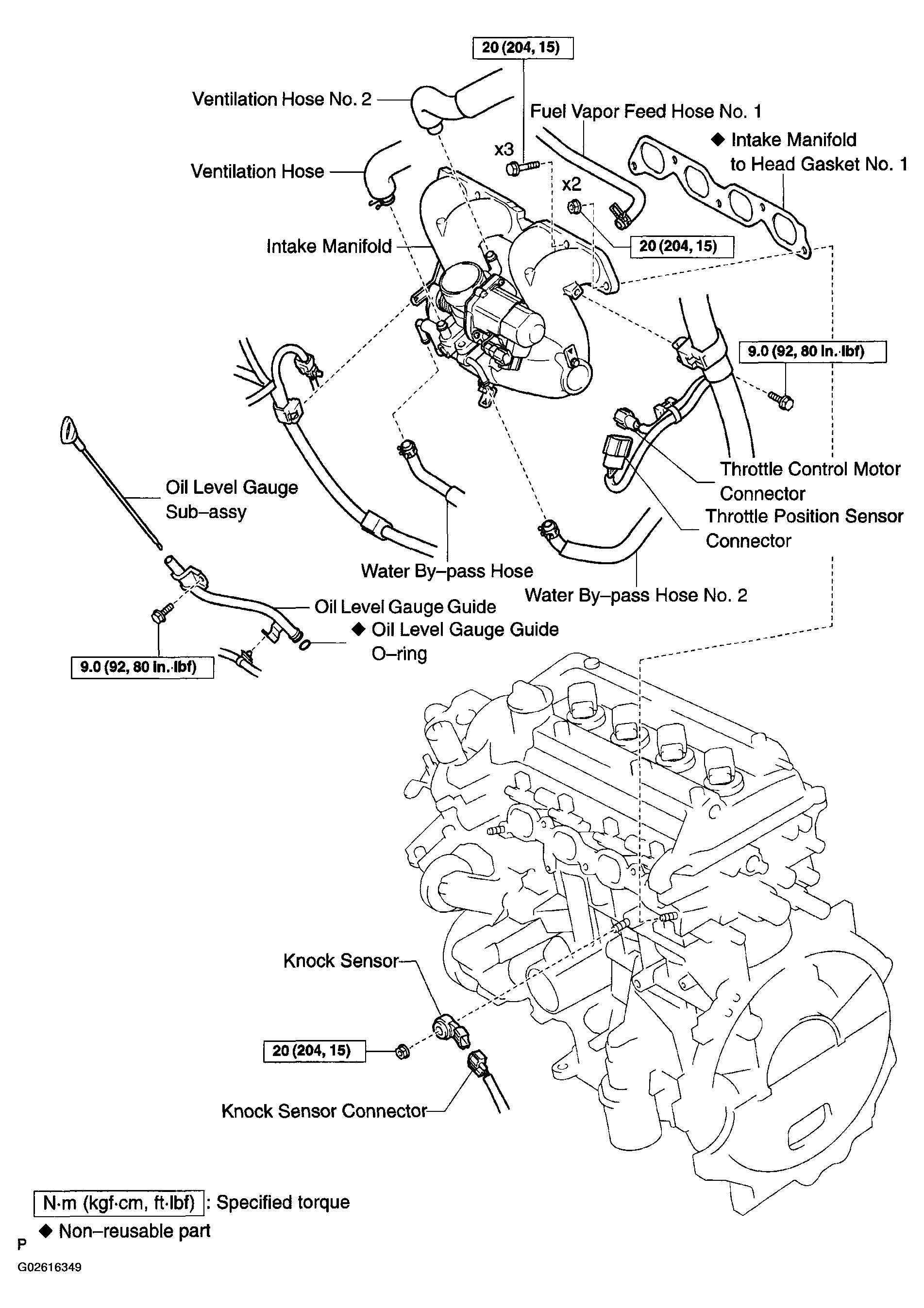

Fig 2: Identifying Knock Sensor Component (1NZ-FXE - 2 Of 2)
G02616349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
