Home >> Toyota >> 2005 >> Prius >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System (SFI) - Diagnostics >> Location

Engine Control System (SFI) - Diagnostics: Location

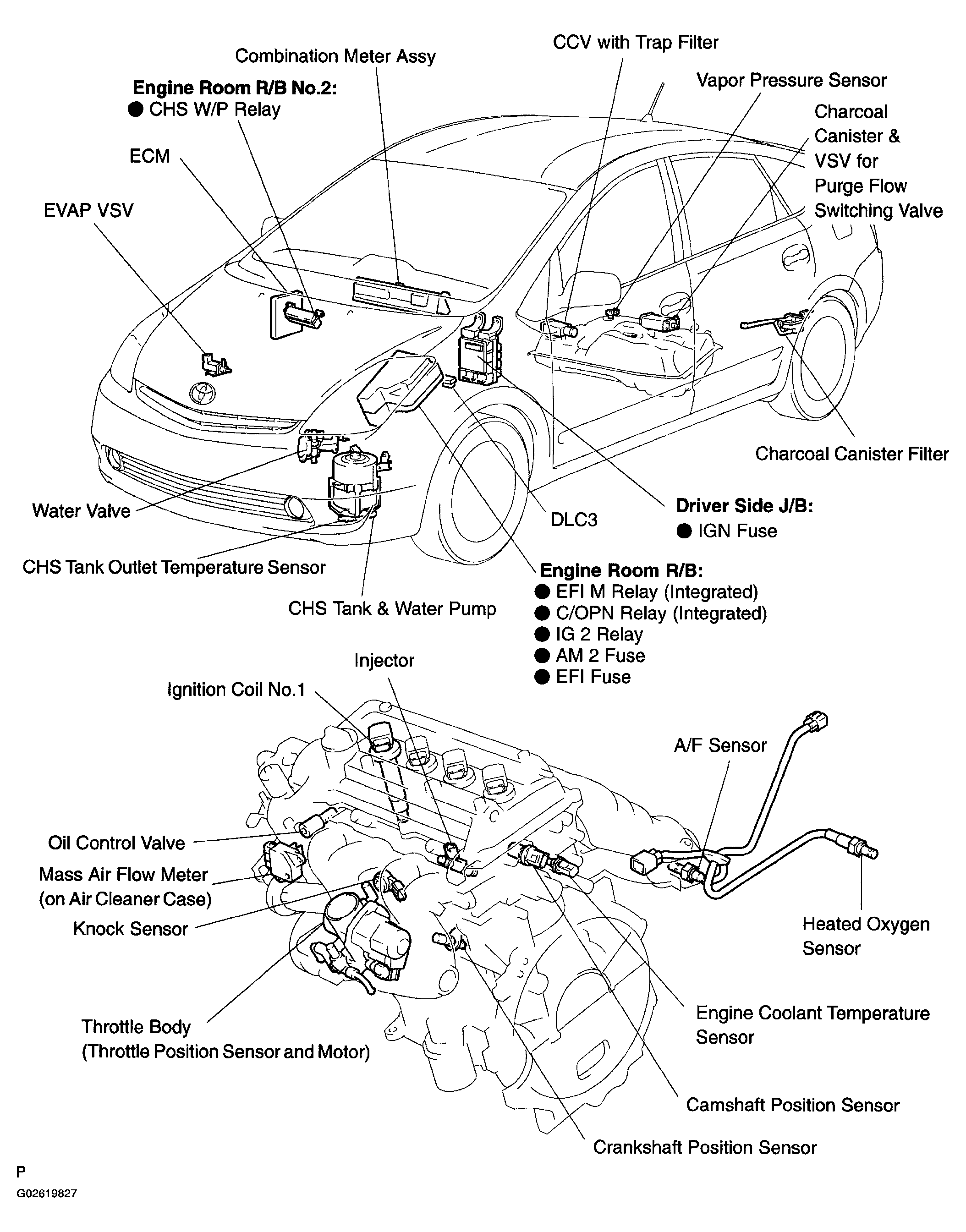

Fig 1: Identifying SFI System Components Location

G02619827

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
