Home >> Toyota >> 2005 >> Prius >> Repair and Diagnosis >> Steering >> Steering Control Systems >> Preparation >> Brake >> Preparation >> SST

Steering Control Systems: Preparation: Brake: Preparation: SST

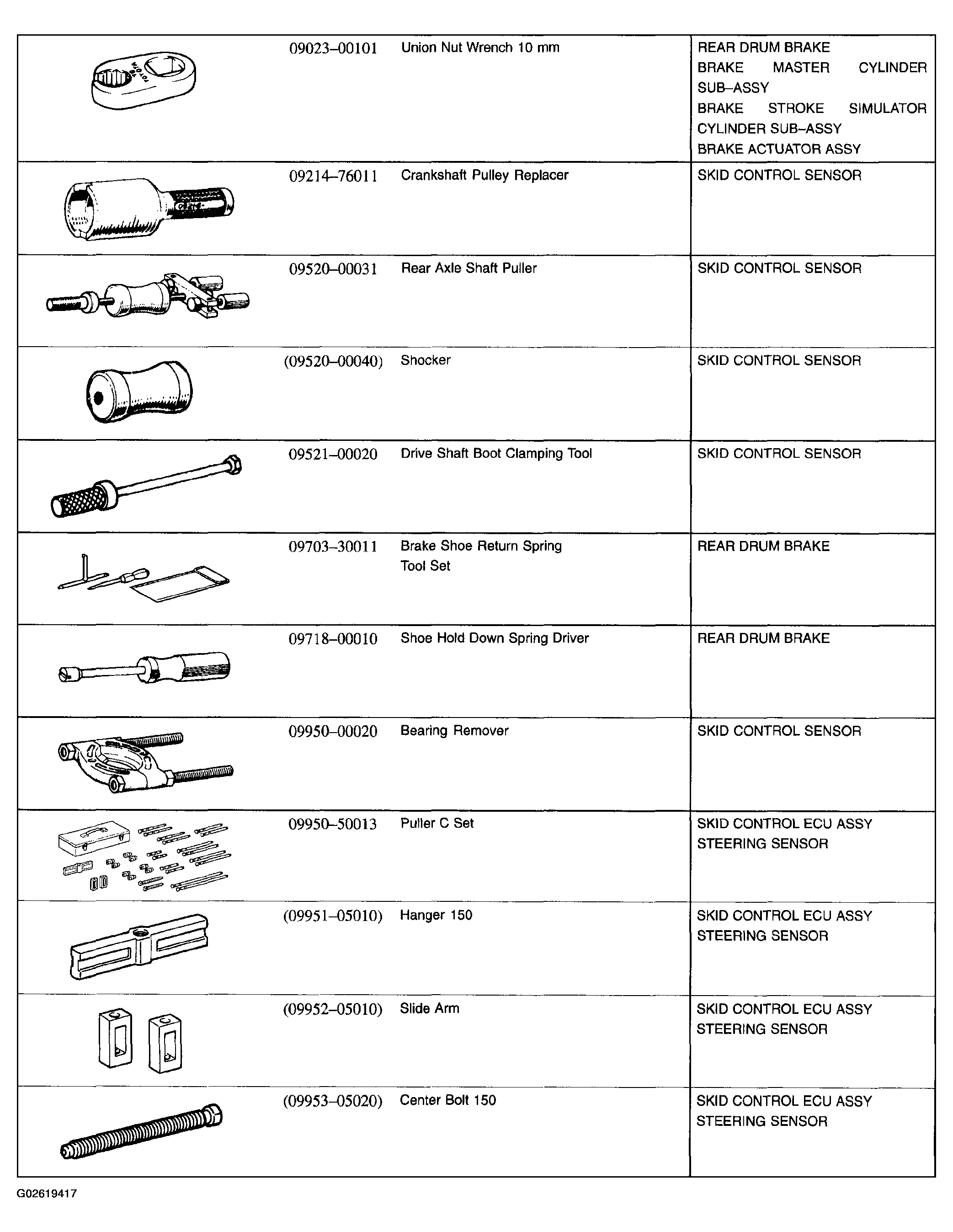

Fig 1: Identifying SST - Brake (1 Of 2)
G02619417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

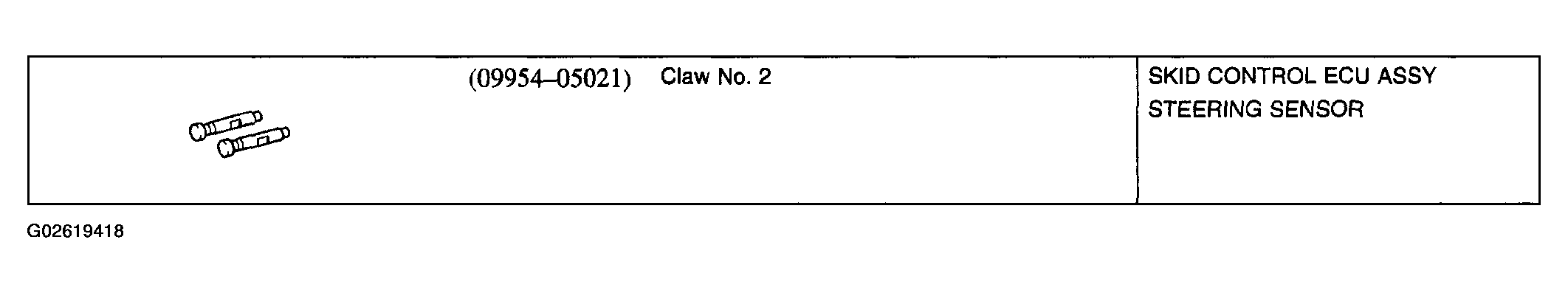

Fig 2: Identifying SST - Brake (2 Of 2)
G02619418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
