Starting System: Starter: Installation

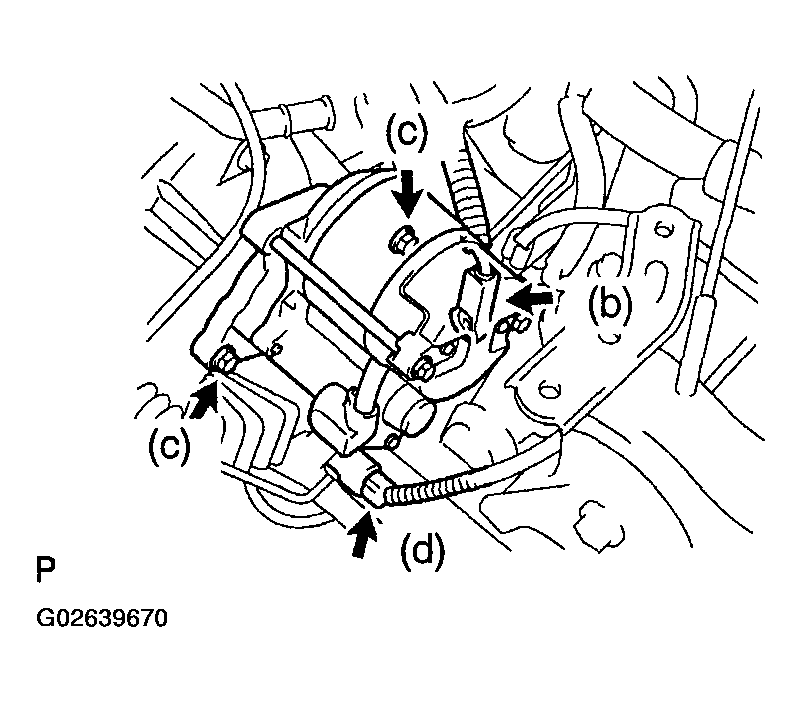

- Install the starter.
- Connect the starter wire, and install the nut.
Torque: 9.8 N.m (100 kgf.cm, 87 in.lbf)
- Install the 2 bolts.
Torque: 37 N.m (377 kgf.cm, 27 ft.lbf)
- Connect the connector.
- A/T:
Connect the hose to the fluid level guide.
