Repair and Diagnosis: Electrical: Gauges: Clock: Troubleshooting

HINT:

Troubleshoot the clock according to the table below.

+/- 1.5 seconds/day

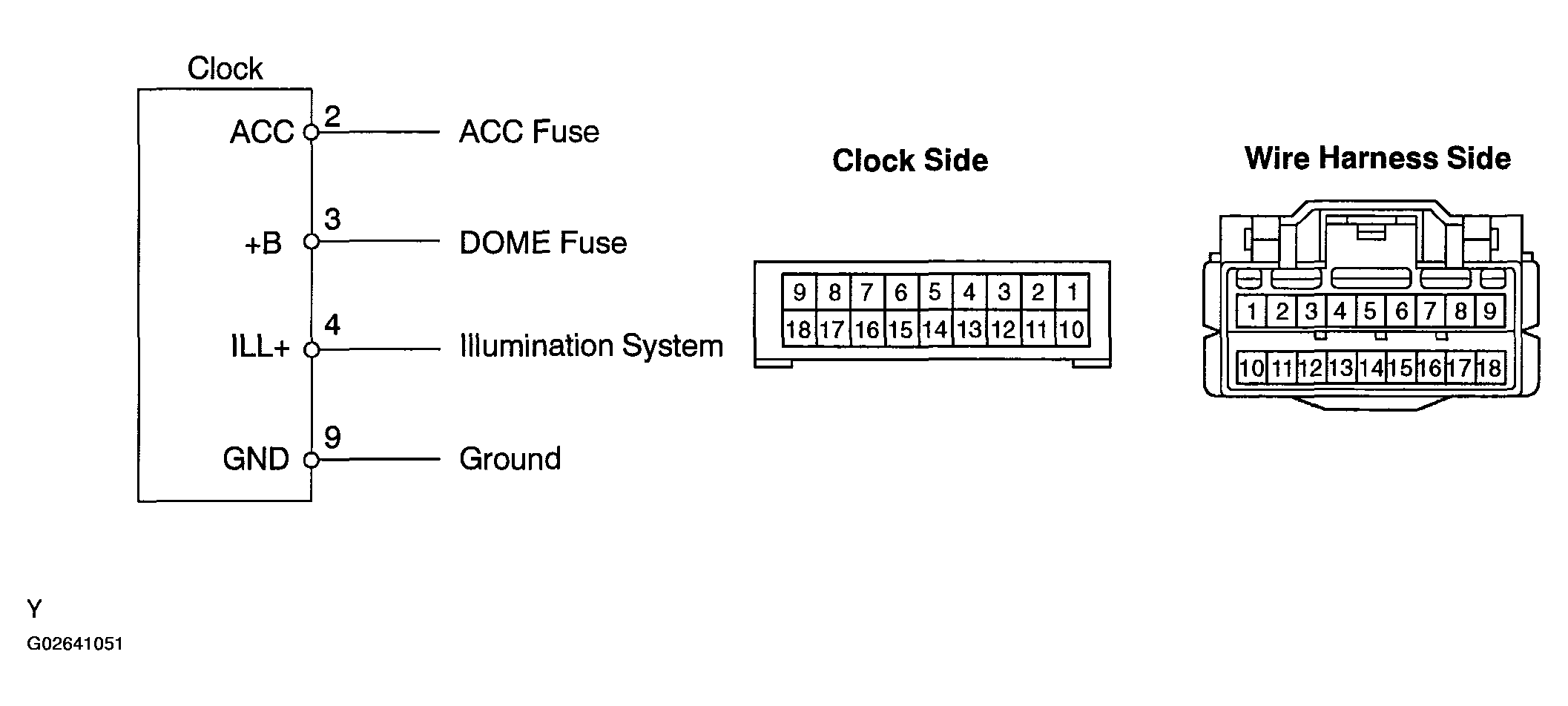

Fig 1: Identifying Connector Terminal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. TROUBLESHOOTING NO. 1
   1. CLOCK DOES NOT OPERATE
      1. Check if the battery voltage is between 10 to 16 V.

         If the voltage is not as specified, replace the battery.

      2. Check that the CUT, DOME and ACC fuses are not blown.

         If the fuse is blown, replace the fuse and check for short.

      3. Troubleshoot the clock as follows.

         HINT:

         Inspect the connector on the wire harness side.

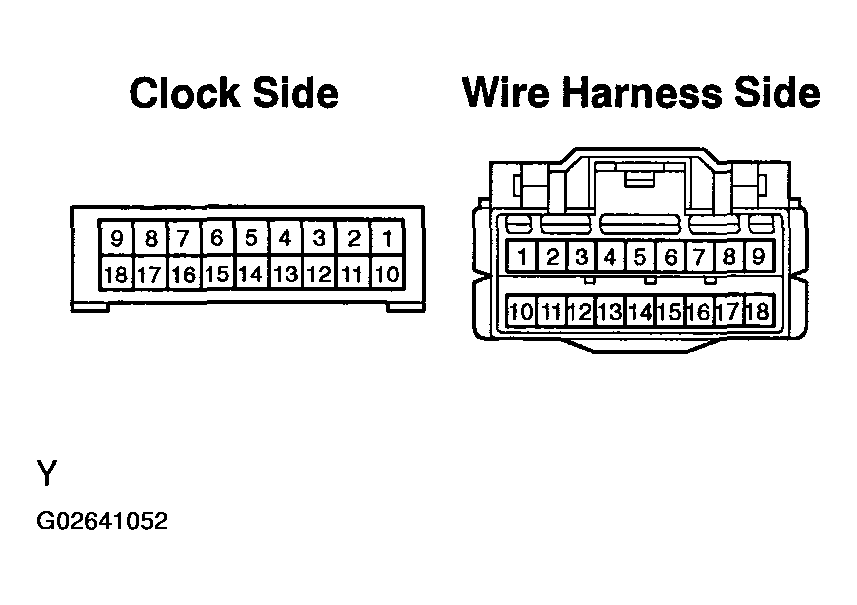

         Fig 2: Identifying Connector Terminal

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

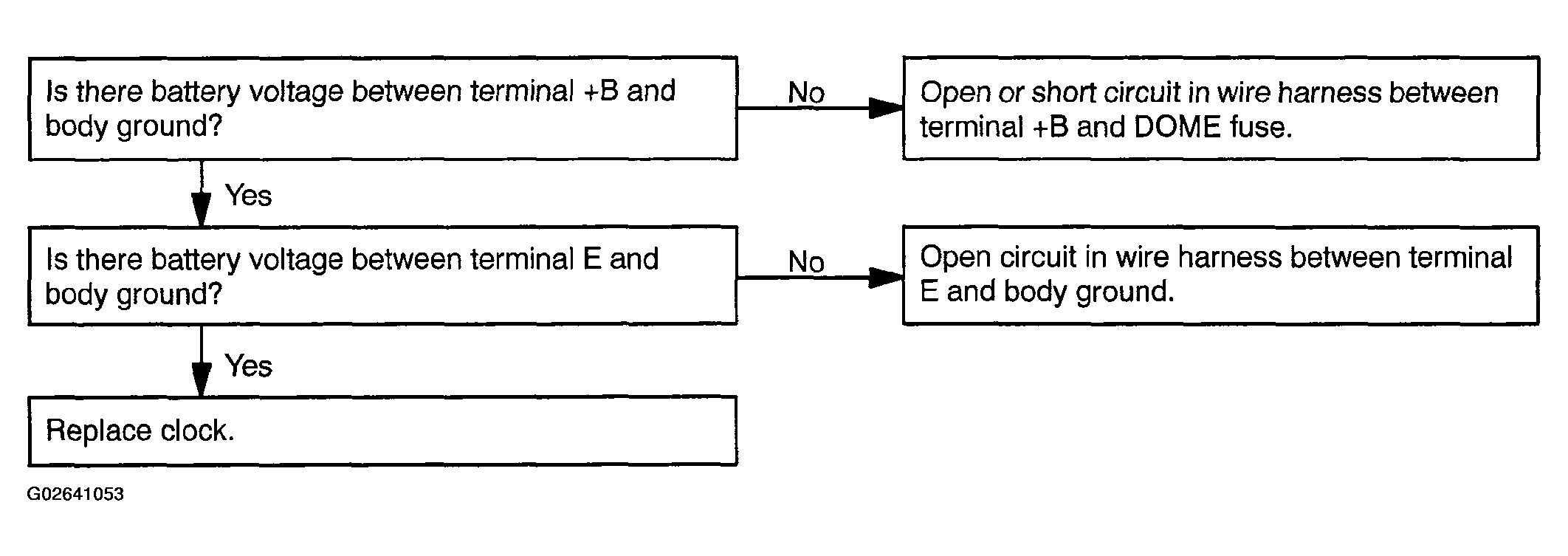

         Fig 3: Flow Chart

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. TROUBLESHOOTING NO. 2
   1. CLOCK IS TOO SLOW OR TOO FAST
      1. Check if the battery voltage between 10 to 16 V.

         If voltage is not as specified, replace the battery.

      2. Inspect the error of the clock.

         Allowable error (per day): +/- 1.5 seconds

         If the error exceeds the allowable error, replace the clock.

      3. Check if the clock adjusting button is stuck in position and has failed to return.
      4. Troubleshoot the clock as follows.

         HINT:

         Inspect the connector on the wire harness side.

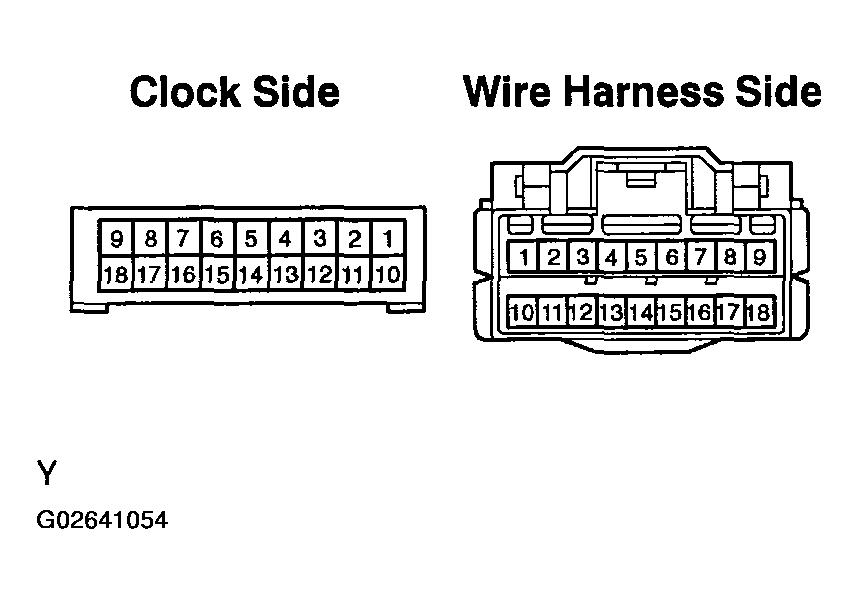

         Fig 4: Identifying Connector Terminal

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

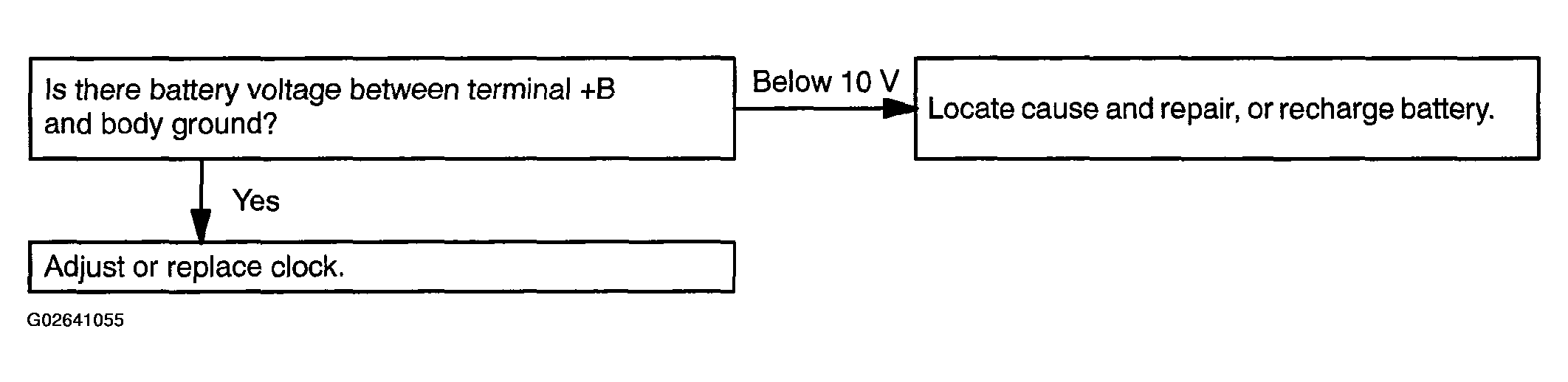

         Fig 5: Flow Chart

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
