Starter Relay: Inspection

REMOVE STARTER RELAY (Marking: ST)

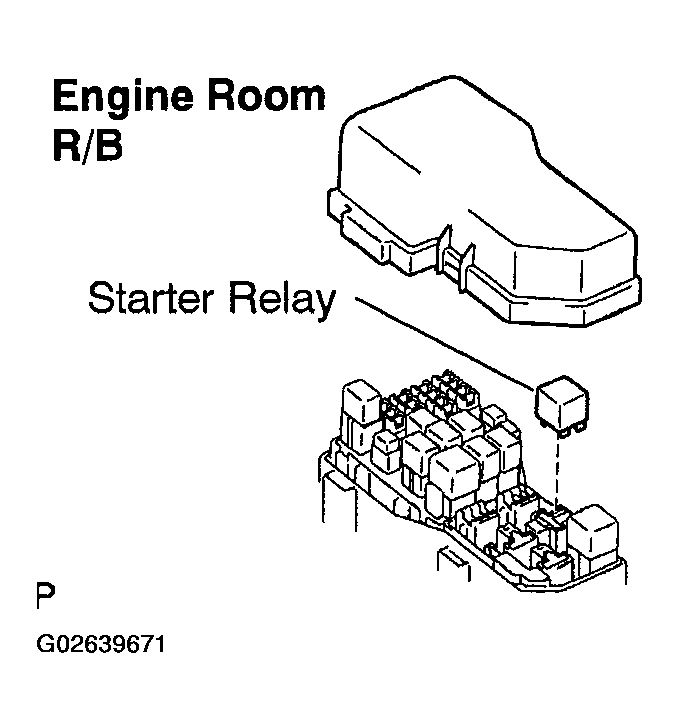

Fig 1: Identifying Location Of Starter Relay
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT STARTER RELAY

Check the resistance of the ST relay.

Standard:

SPECIFIED CONDITION CHART

Tester Condition	Specified Condition
3 - 5	10 kΩ or higher
3 - 5	Below 1 Ω (when battery voltage is applied to terminals 1 and 2)

If the result is not as specified, replace the relay.

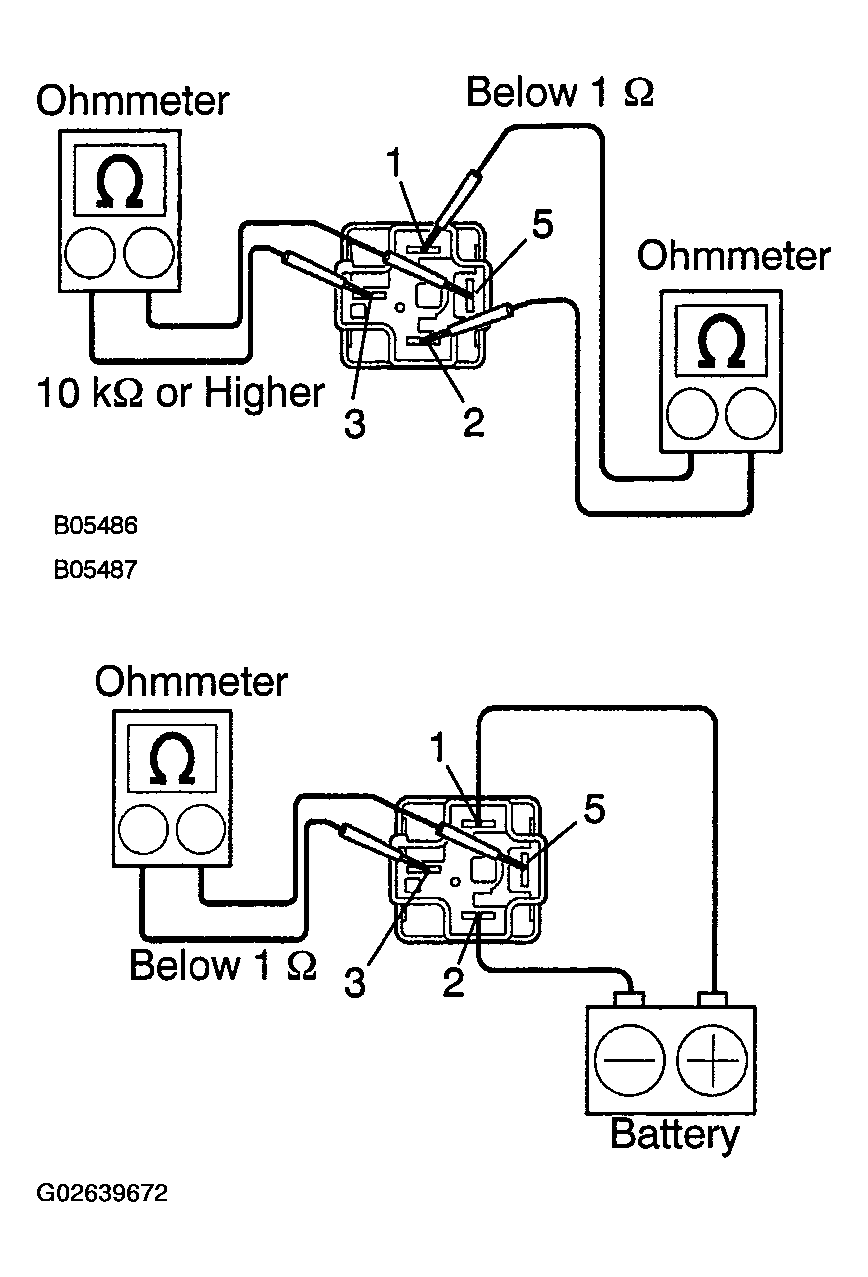

Fig 2: Inspecting Starter Relay
