Oil Pump: Components

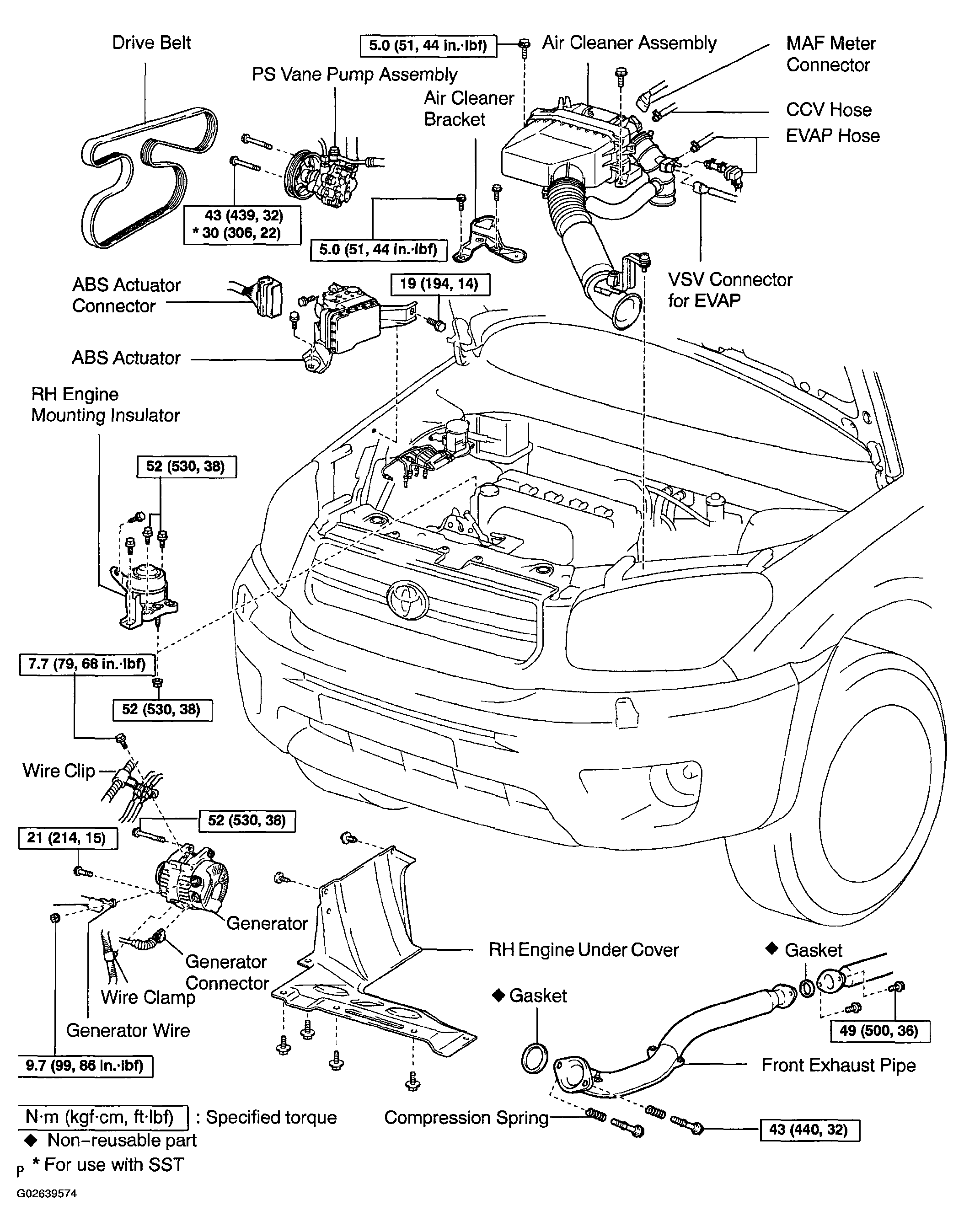

Fig 1: Exploded View Of Oil Pump Components & Torque Specifications (1 Of 3)
G02639574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

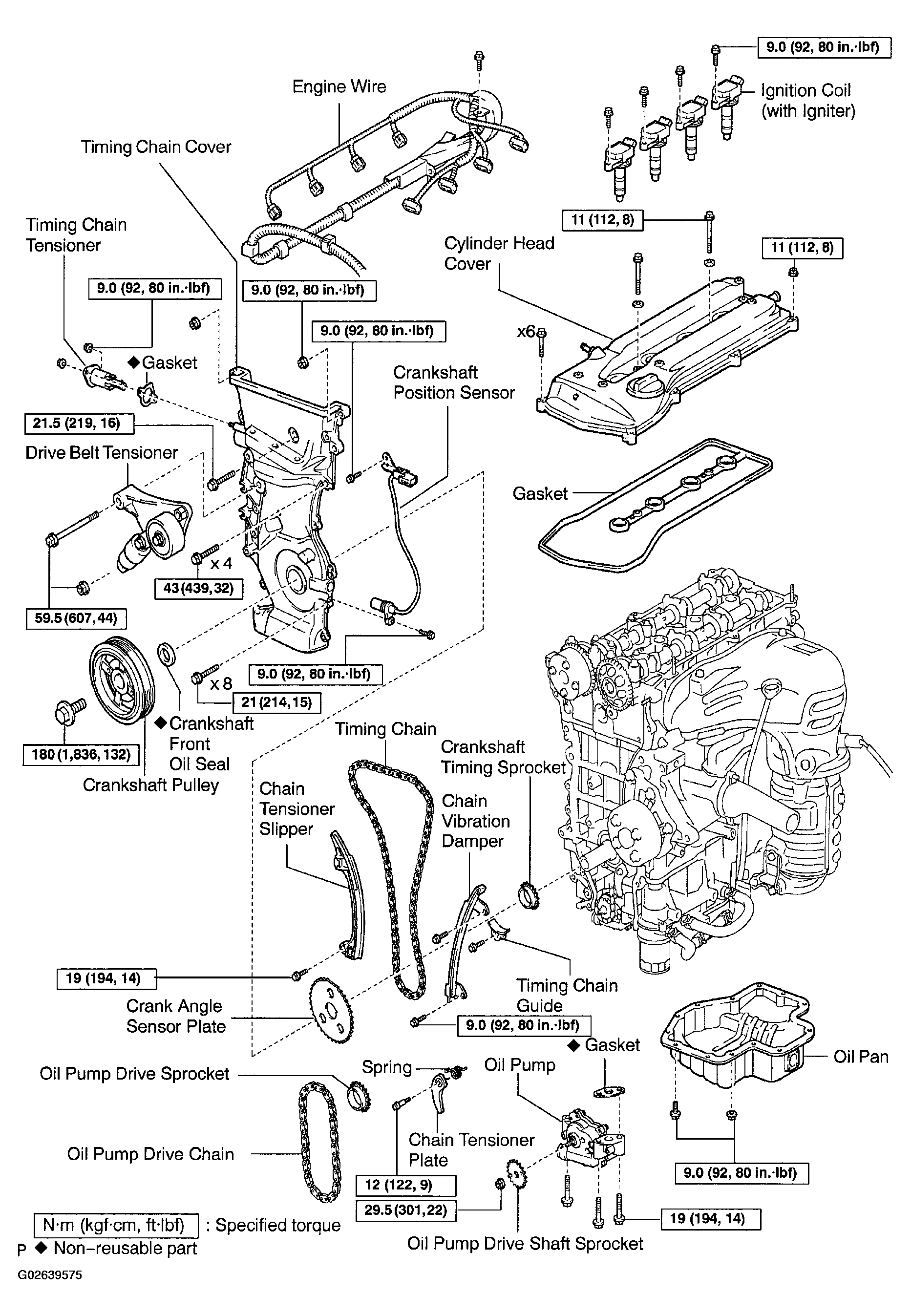

Fig 2: Exploded View Of Oil Pump Components & Torque Specifications (2 Of 3)
G02639575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

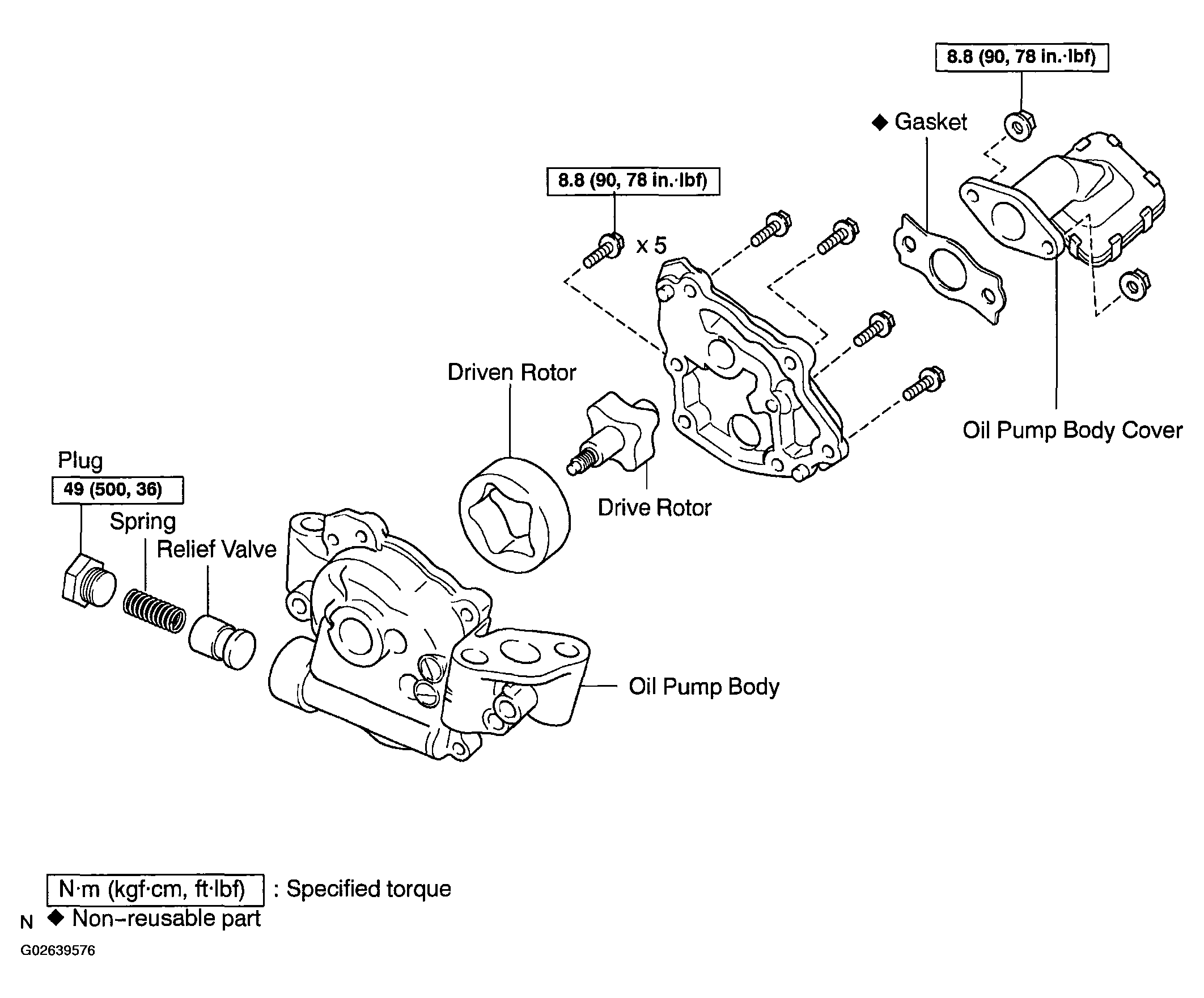

Fig 3: Exploded View Of Oil Pump Components & Torque Specifications (3 Of 3)
G02639576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
