Tilt Steering Column: Components

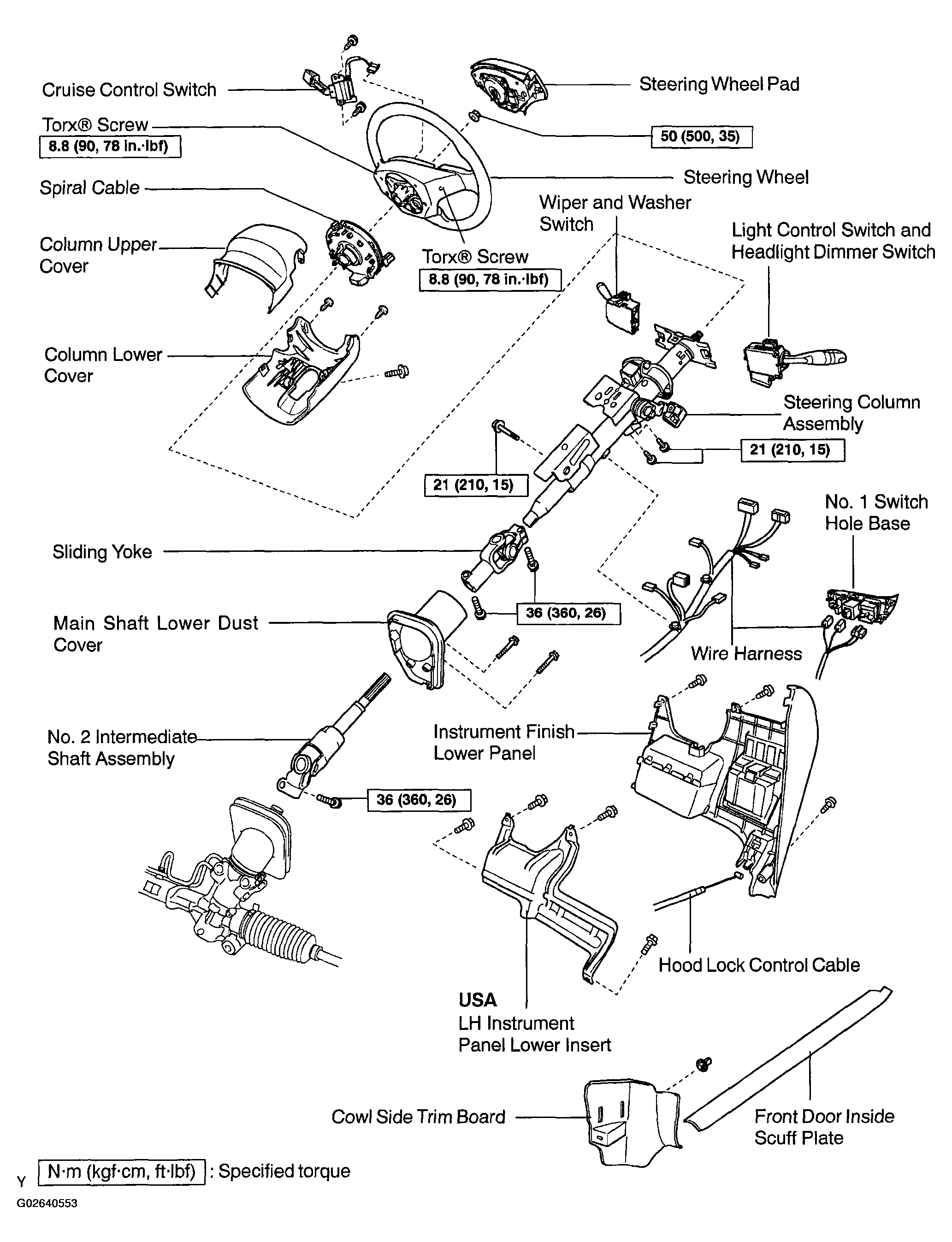

Fig 1: Exploded View Of Tilt Steering Column & Torque Specifications (1 Of 2)
G02640553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

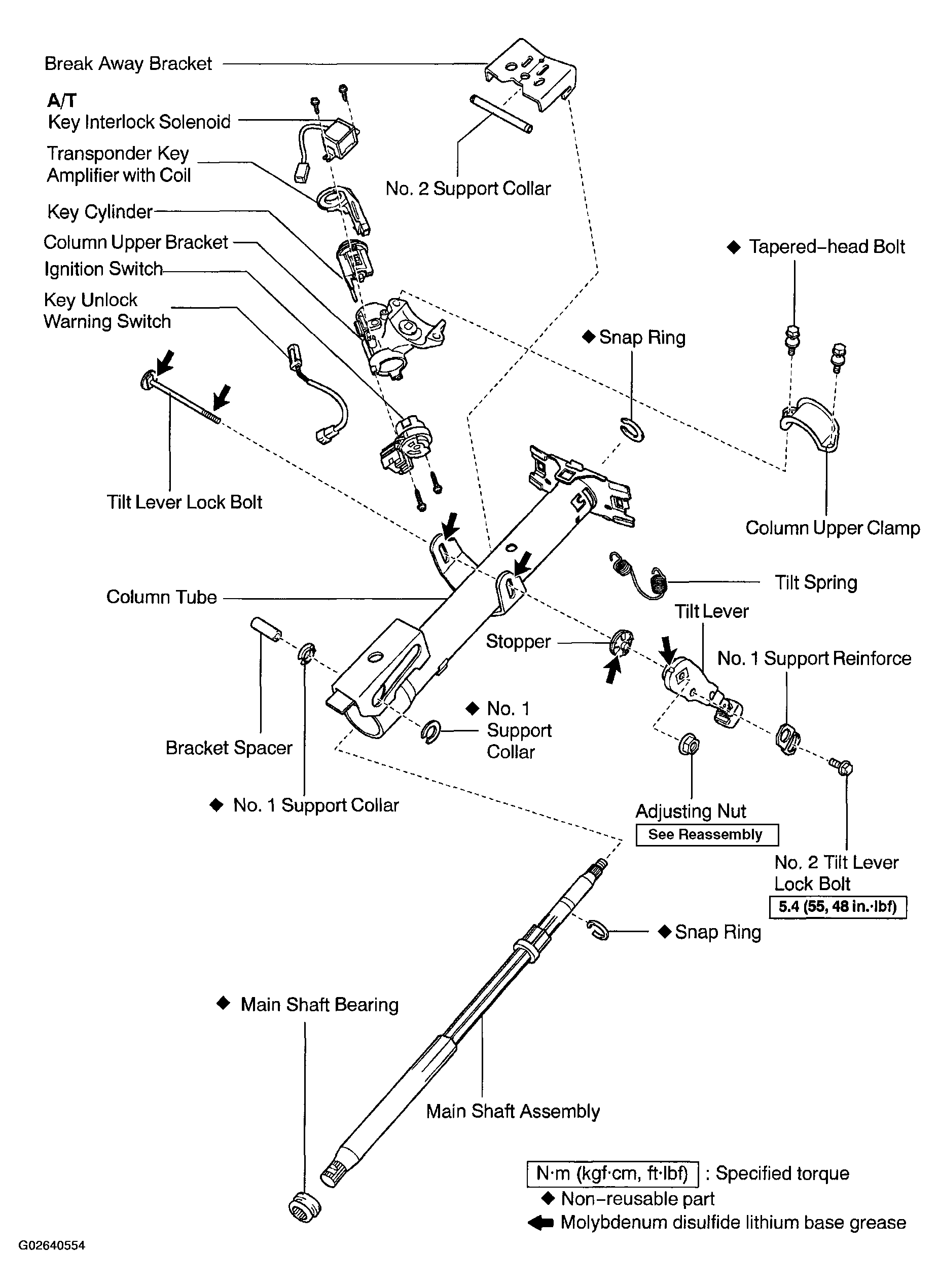

Fig 2: Exploded View Of Tilt Steering Column & Torque Specifications (2 Of 2)
G02640554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
