Instrument Panel: Components

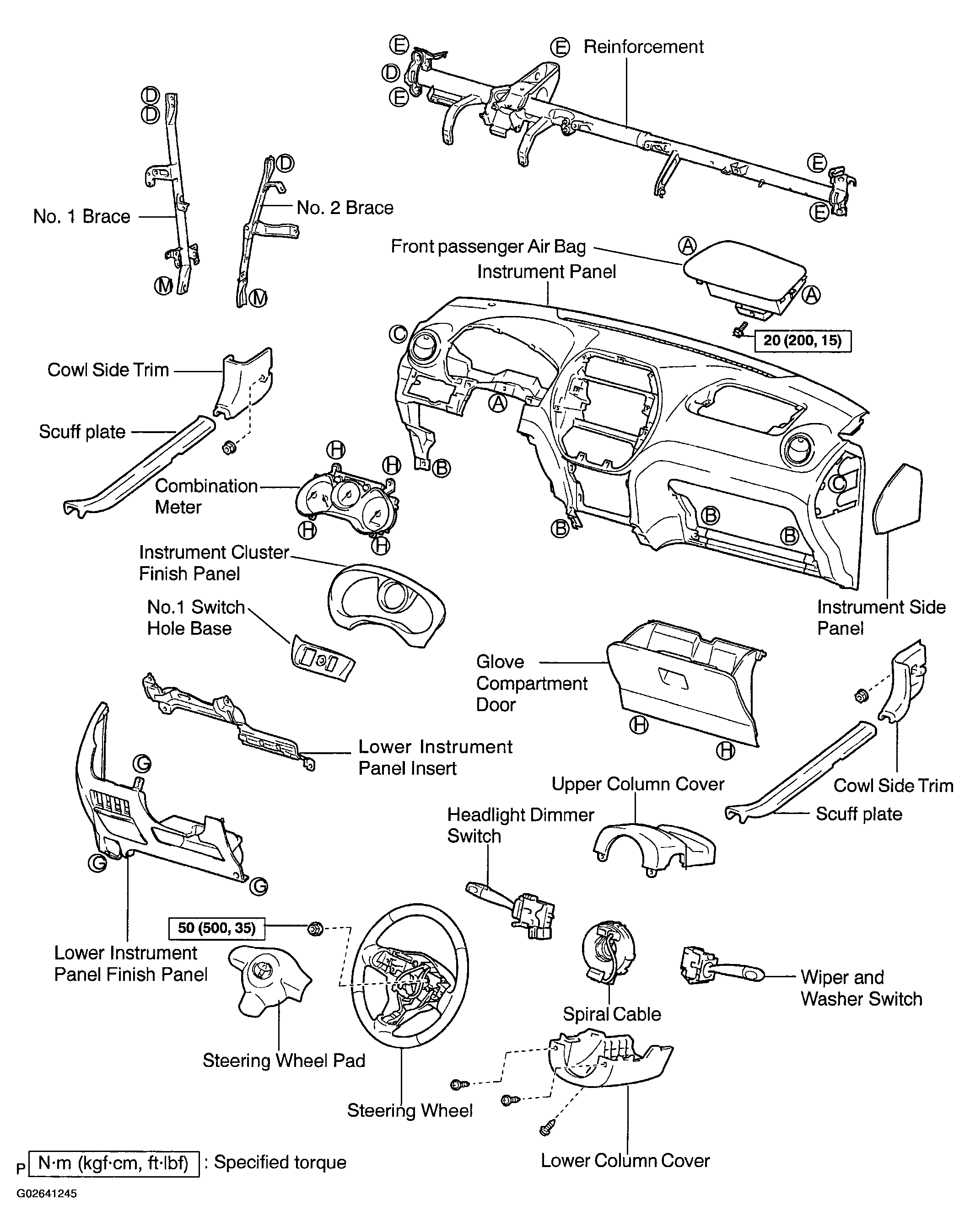

Fig 1: Instrument Panel Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

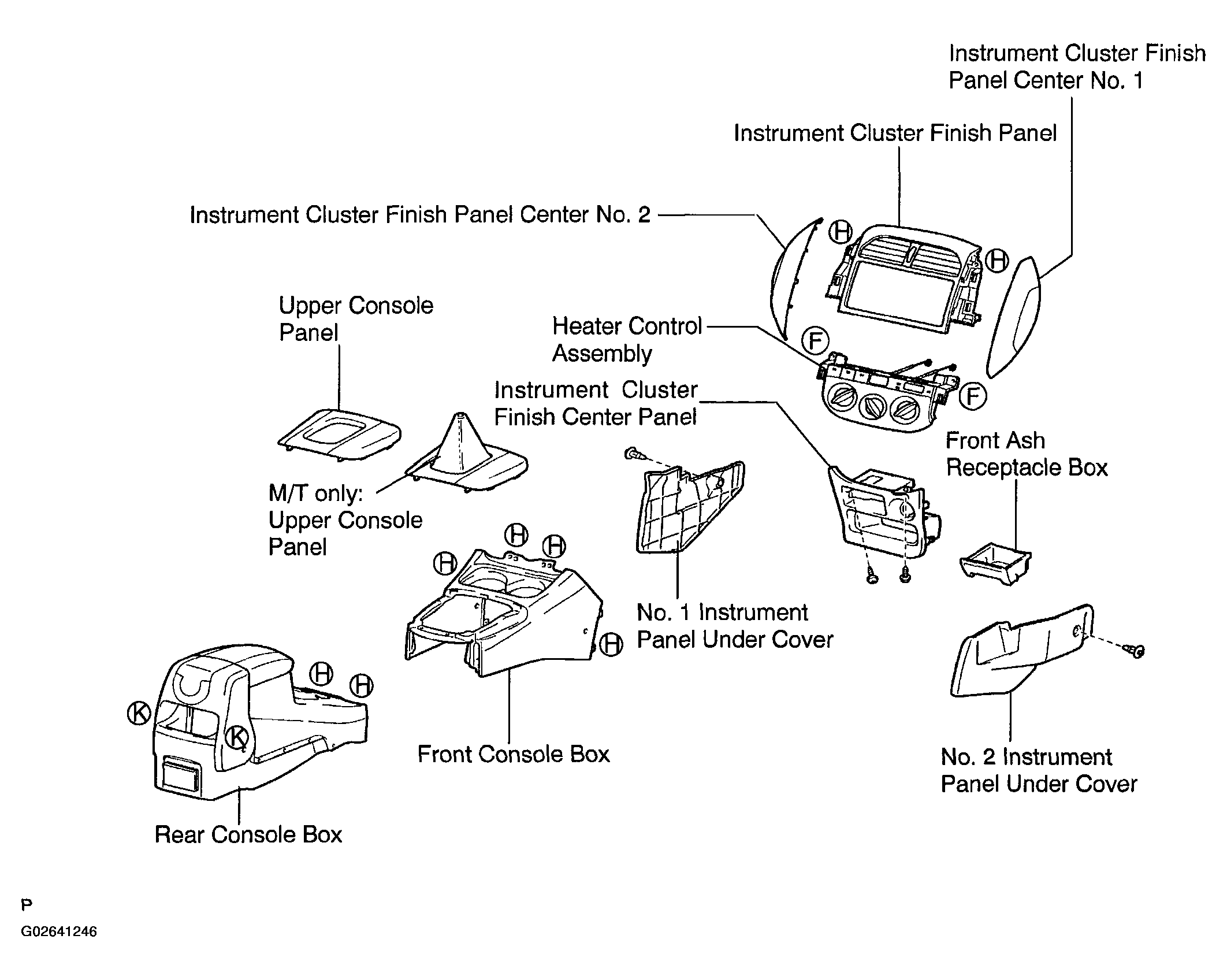

Fig 2: Identifying Instrument Panel Center Console Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

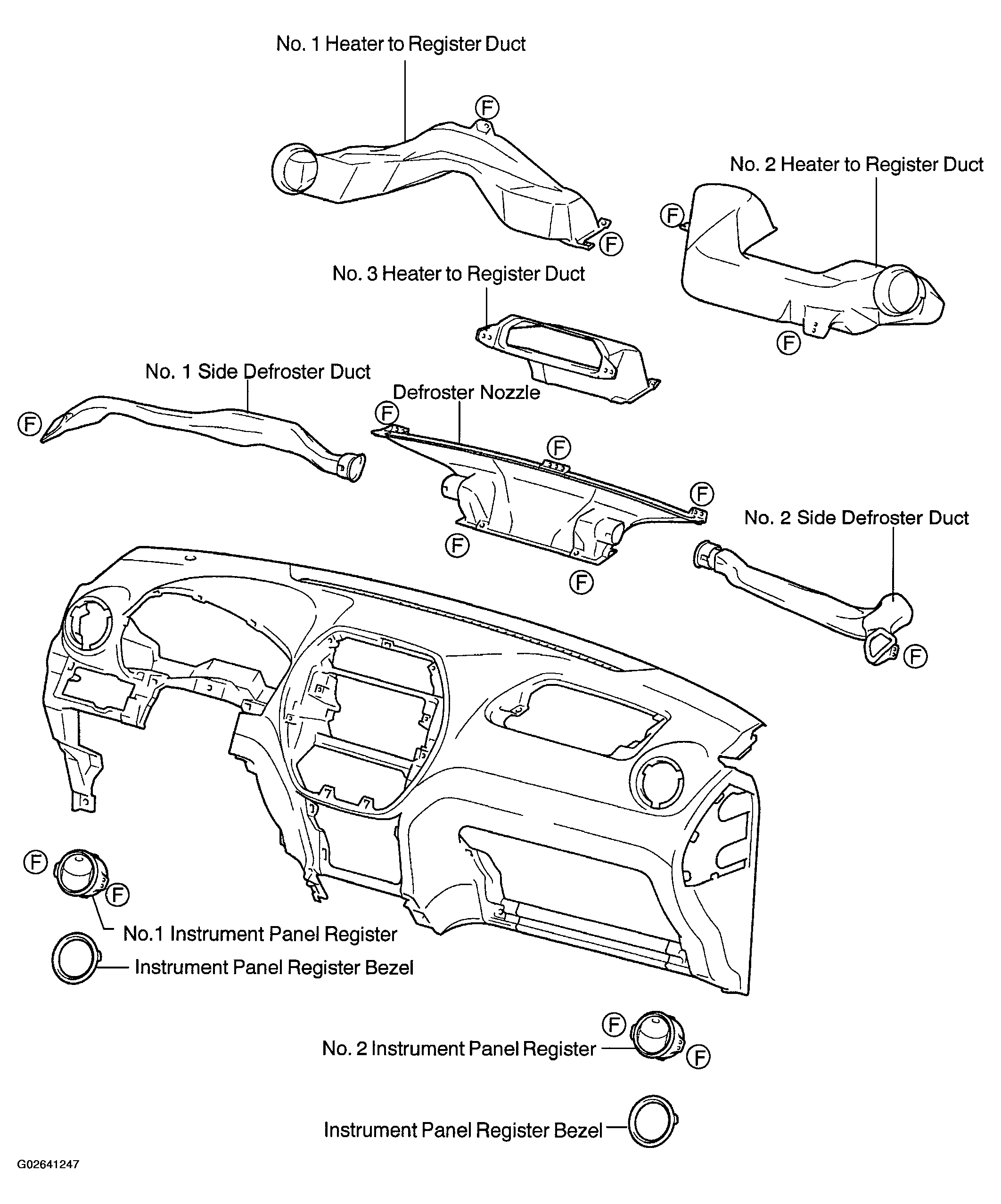

Fig 3: Identifying Instrument Panel Ducting Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Screw shapes and sizes are indicated below. The codes (A to M) correspond to those indicated in Fig 1 - Fig 3 .

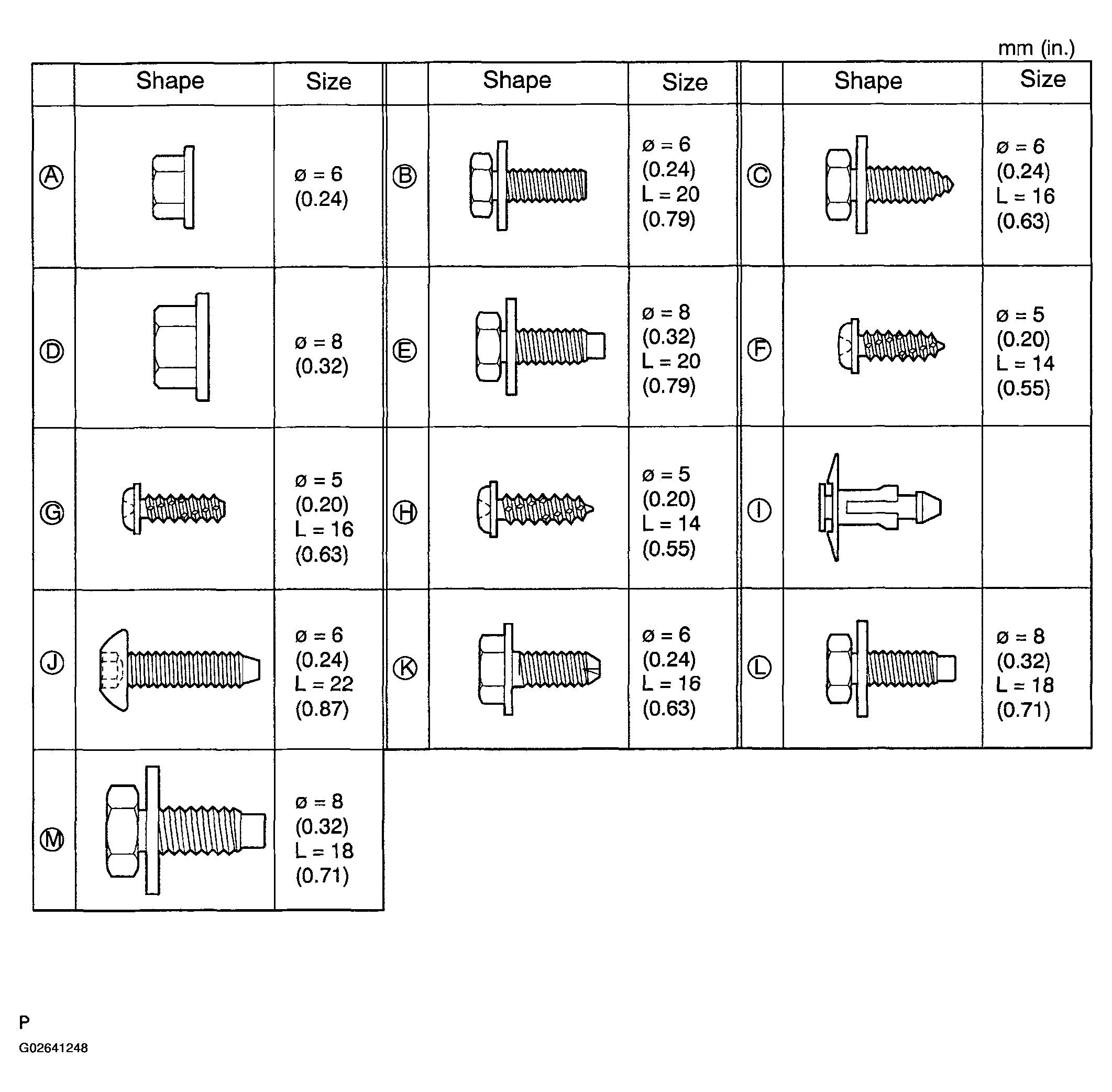

Fig 4: Identifying Screw Sizes And Shapes Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
