Home >> Toyota >> 2005 >> RAV4 Base, FWD, Standard >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Seat Belt >> Components

Seat Belt: Components

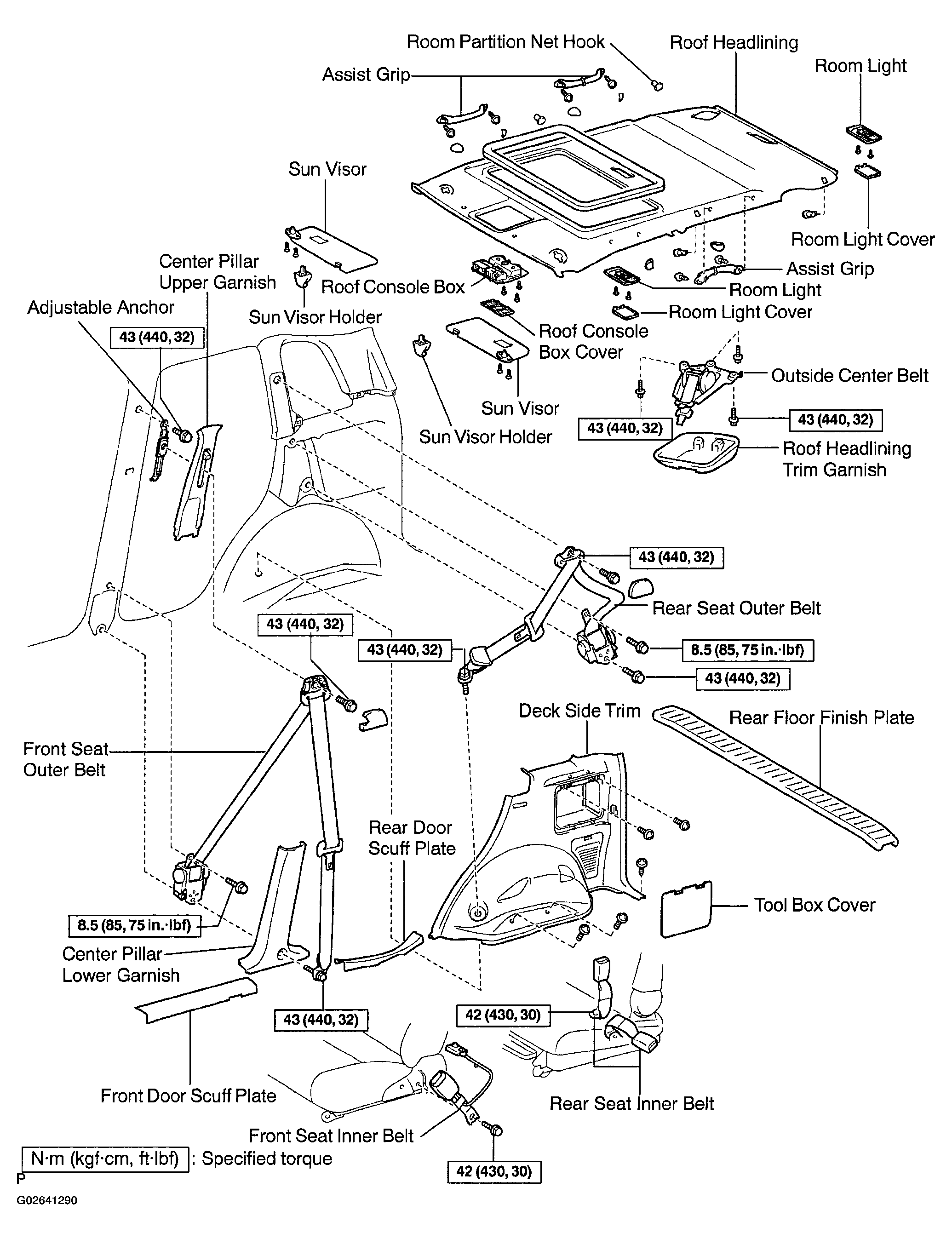

Fig 1: Seat Belt Replacement Components With Torque Specifications
G02641290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
