Starting System: Starter: Components

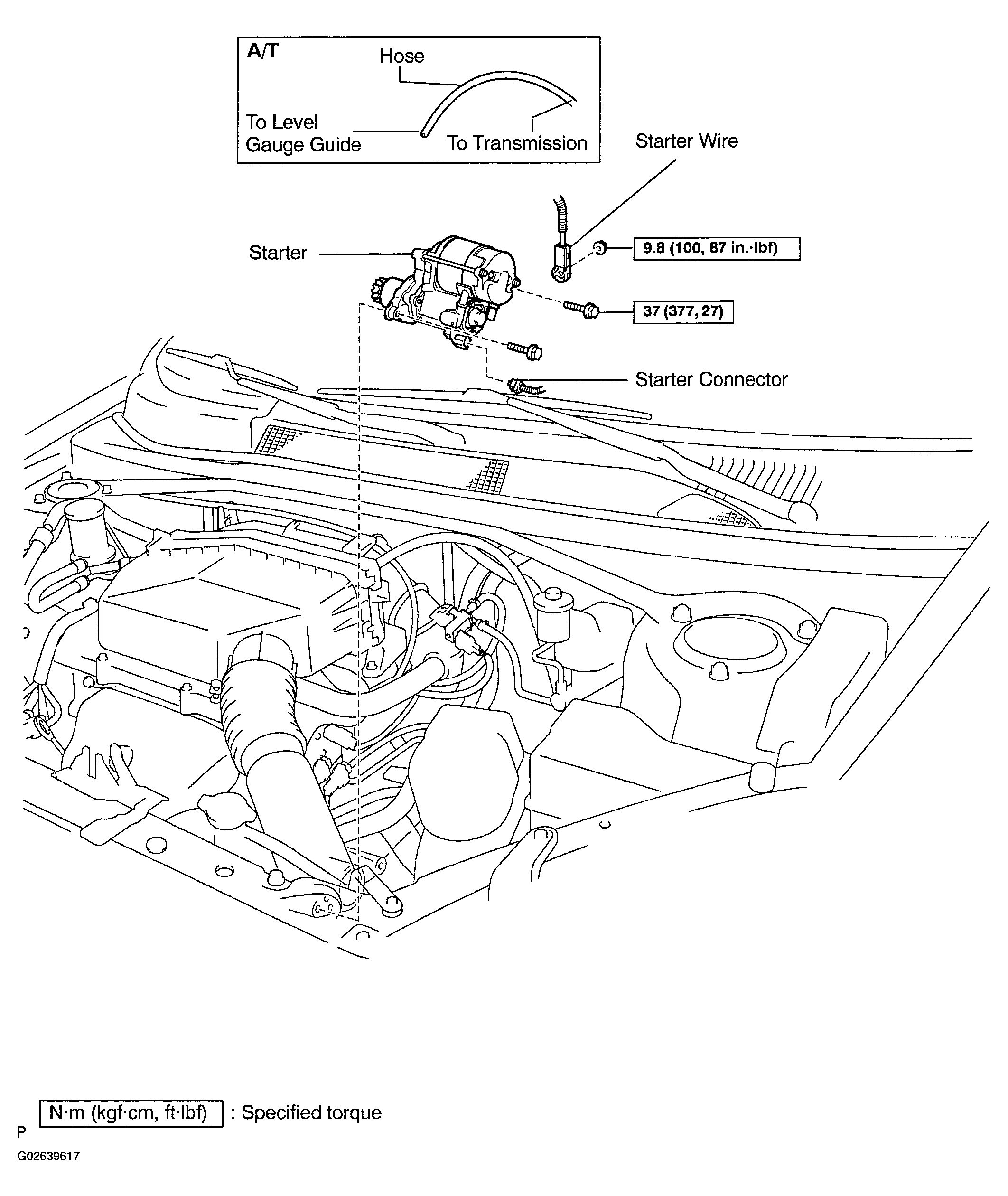

Fig 1: Starter Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

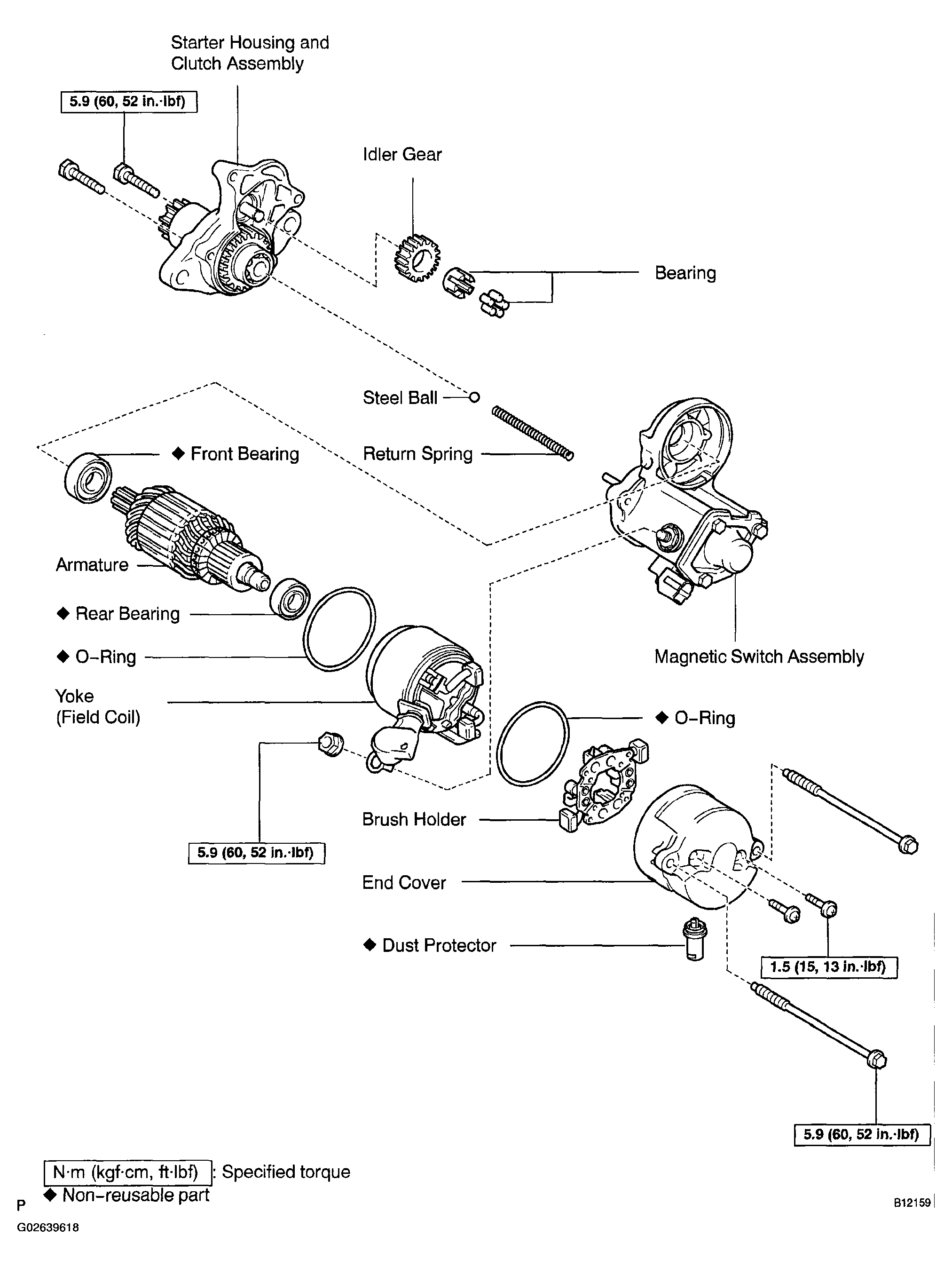

Fig 2: Starter Replacement Components With Torque Specifications (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

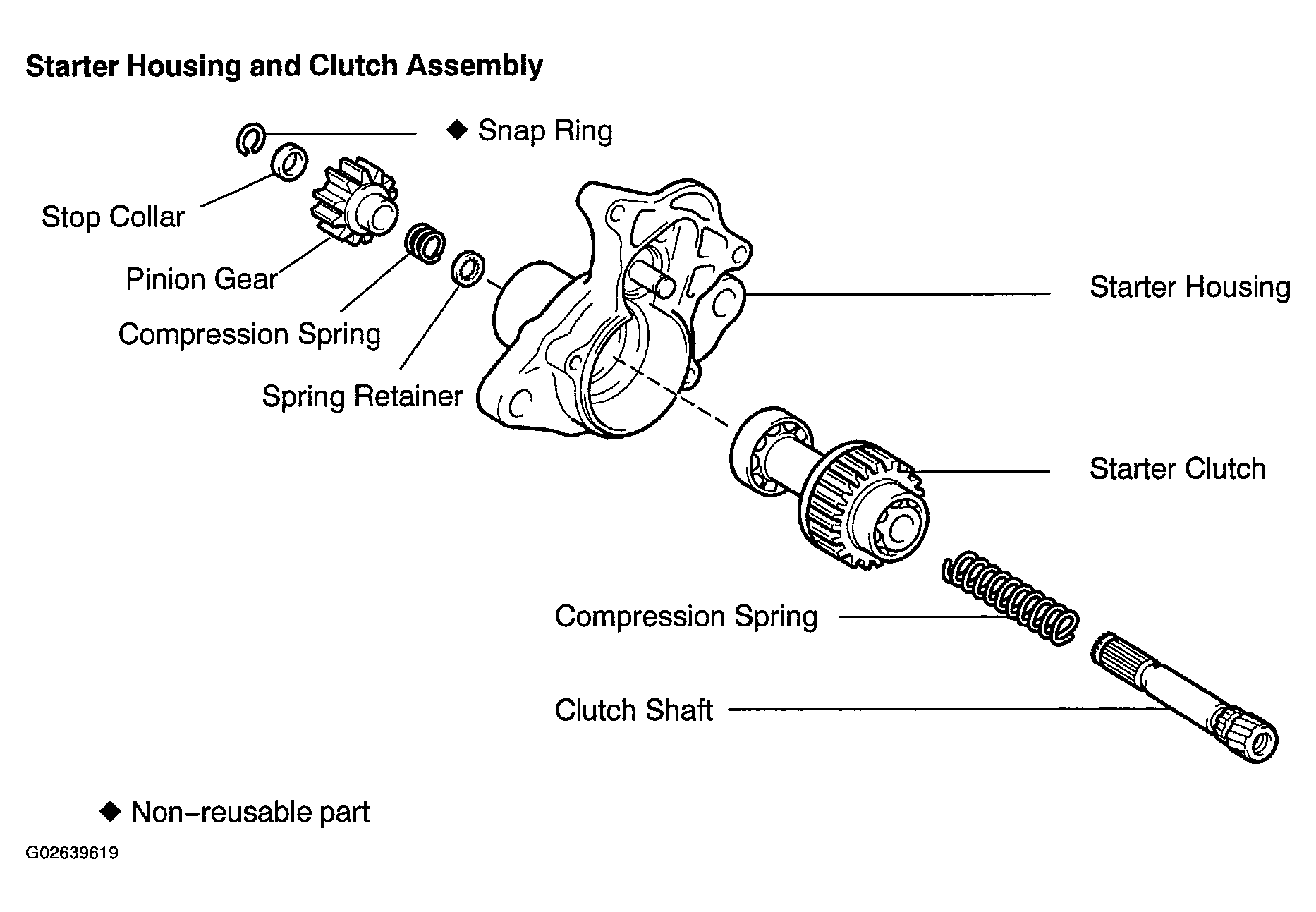

Fig 3: Identifying Starter Housing And Clutch Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

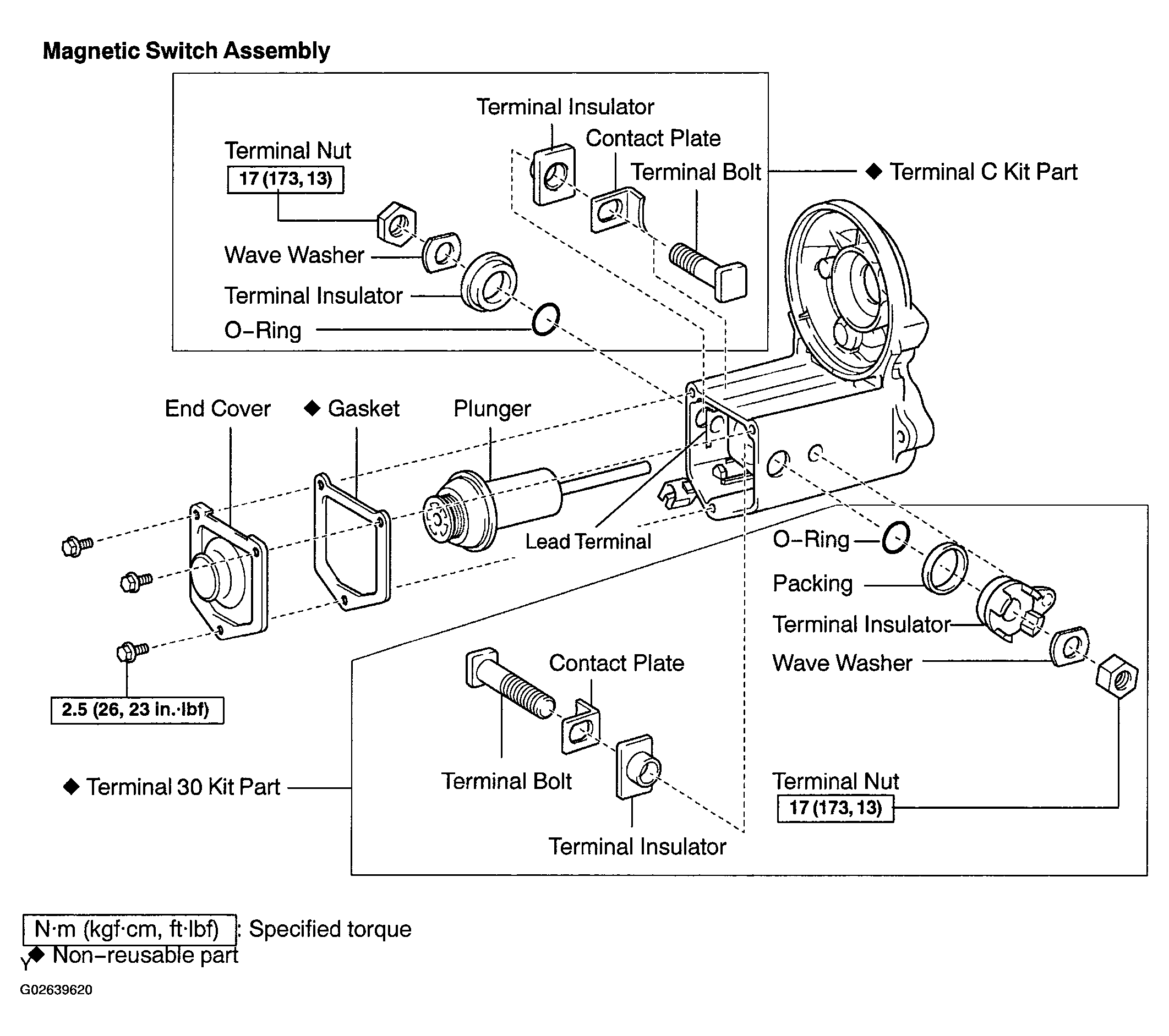

Fig 4: Magnetic Switch Assembly With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
