Charging System: Generator: Installation

INSTALL GENERATOR
1. Install the generator with the bolt and the 2 nuts.
  Torque:

  Bolt: 39 N.m (400 kgf.cm, 29 ft.lbf)

  Nut 10 mm: 39 N.m (400 kgf.cm, 29 ft.lbf)

  Nut 8 mm: 15.5 N.m (158 kgf.cm, 11 ft.lbf)
2. Connect the generator connector.
3. Connect the generator wire with the nut.
  Torque: 9.8 N.m (100 kgf.cm, 87 in.lbf)
4. Install the terminal cap.
5. Install the wire clamp to the cord clip on the generator.
INSTALL PS VANE PUMP (See INSTALLATION )

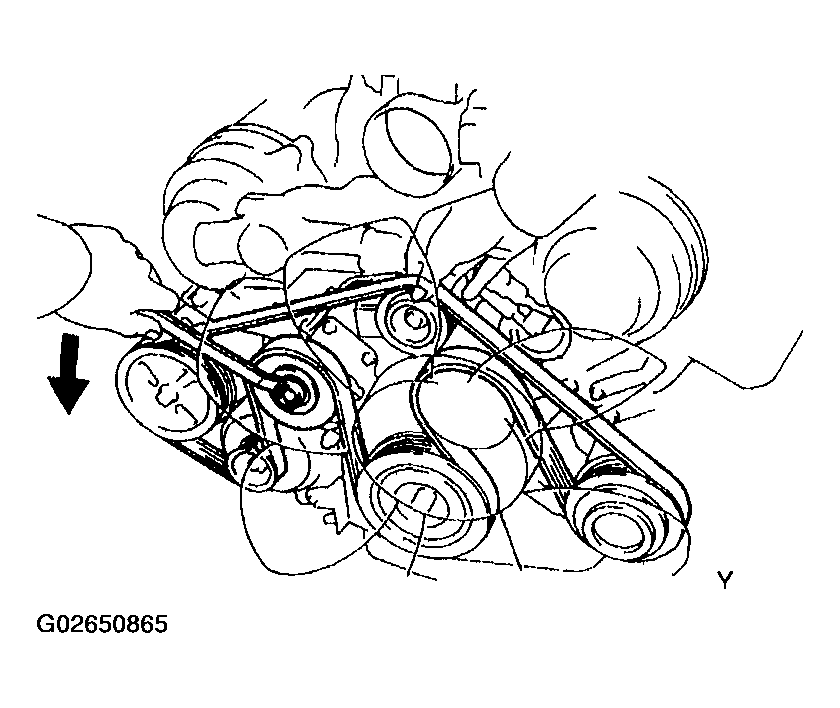

Fig 1: Installing Drive Belt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL DRIVE BELT
Install the belt by turning the belt tensioner counterclockwise.

HINT:

The pulley bolt for the belt tensioner has a left - hand thread.
CONNECT INTAKE AIR CONNECTOR TO THROTTLE BODY
PERFORM ON-VEHICLE INSPECTION (See CHARGING SYSTEM )
INSTALL THROTTLE BODY COVER
INSTALL ENGINE UNDER COVER
CONNECT CABLE TO NEGATIVE (-) BATTERY TERMINAL
PERFORM INITIALIZATION
Some system need initialization when disconnecting the cable from the battery terminal.
