Home >> Toyota >> 2005 >> Sequoia Limited, RWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> SFI System (Service Information) >> Fuel Pump >> Components

Fuel Pump: Components

Fig 1: Identifying Fuel Pump Components (1 Of 2)
G02650548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

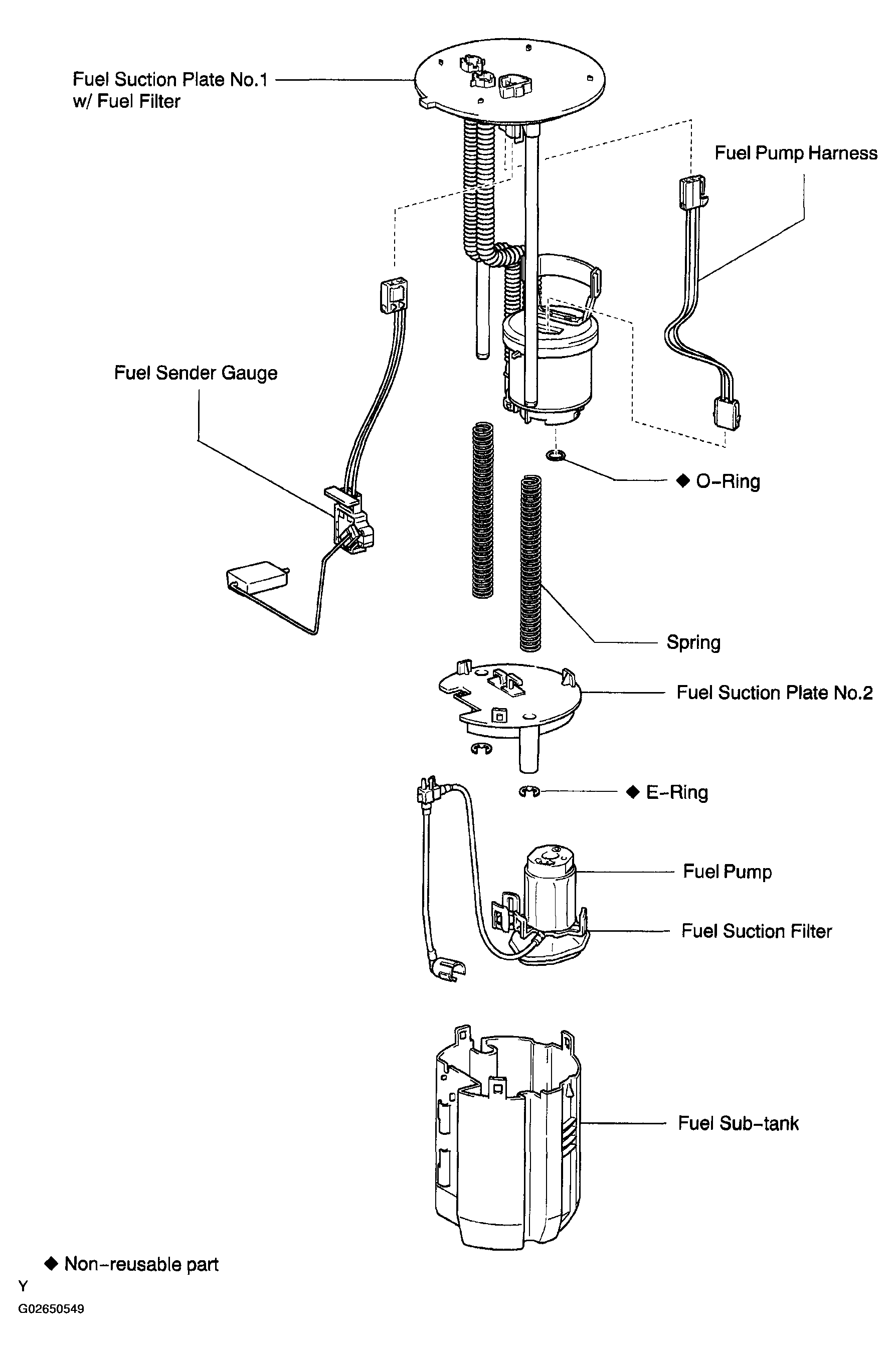

Fig 2: Identifying Fuel Pump Components (2 Of 2)
G02650549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
