SFI System (Service Information): Injector: Components

Fig 1: Identifying Engine Components - Injectors (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

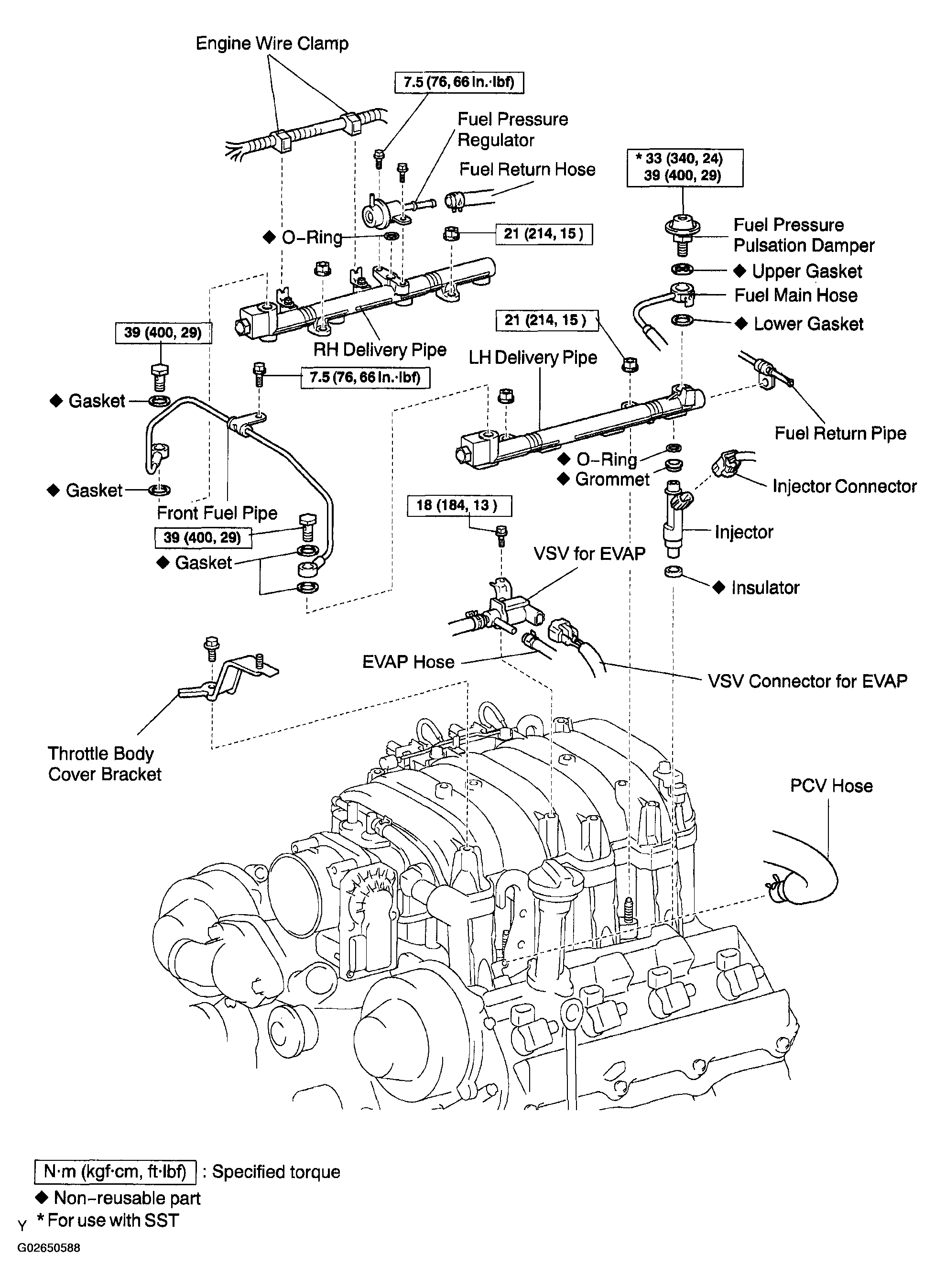

Fig 2: Identifying Engine Components - Injectors (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
