Crankshaft Position Sensor: Removal

  1. REMOVE ENGINE UNDER COVER
  2. REMOVE CRANKSHAFT POSITION SENSOR
    1. Disconnect the crankshaft position sensor connector.
    2. Remove the bolt and crankshaft position sensor.

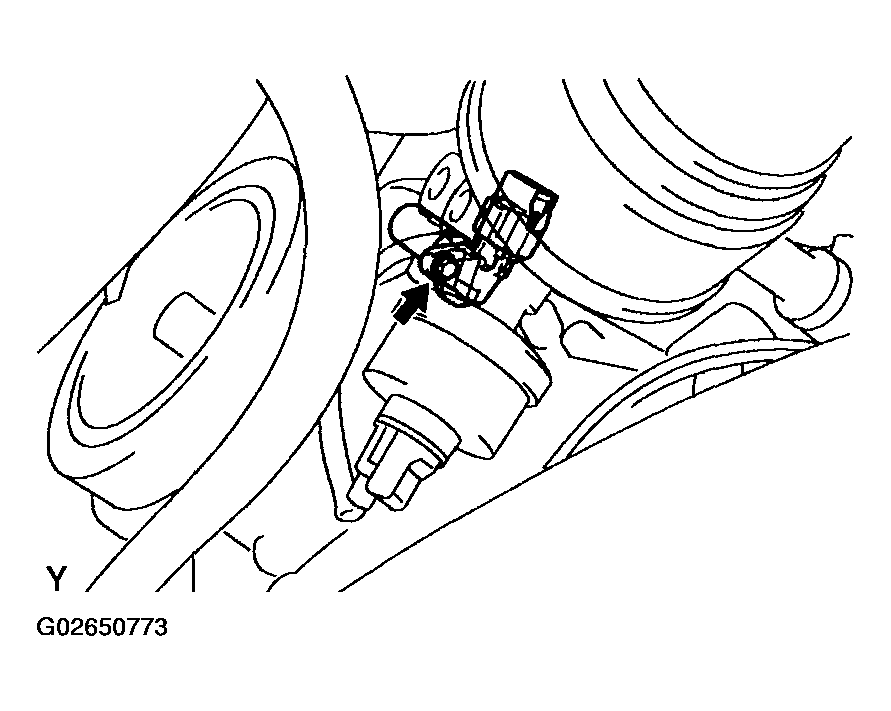

    Fig 1: Removing Crankshaft Position Sensor
    G02650773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
