Ignition Coil: Removal

  1. DISCONNECT IGNITION COIL (WITH IGNITER) CONNECTORS
  2. REMOVE IGNITION COILS (WITH IGNITER)

    Remove the bolt, and pull out the ignition coil (with igniter). Remove the 8 ignition coils (with igniter).

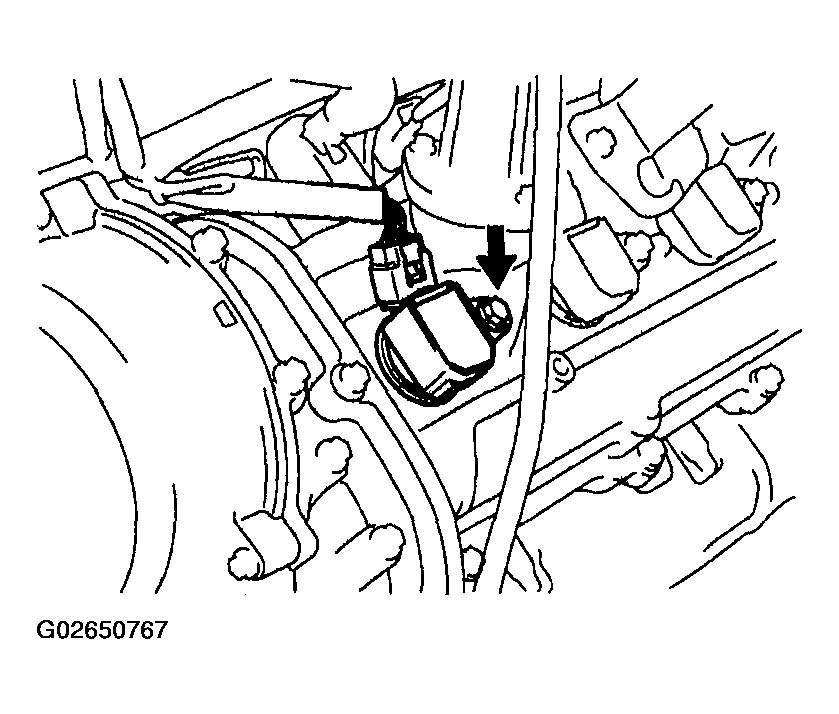

    Fig 1: Removing Ignition Coils
    G02650767Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
