Diagnostic Trouble Code Chart

DTC	Description
DTC P0010, P0020	Camshaft Position "A" Actuator circuit (Bank 1 & 2)
DTC P0011, P0012, P0021, P0022	Camshaft Position "A" -Timing Over-Actuator or System Performance/Timing Over-Retarded (Bank 1 & 2)
DTC P0016, P0018	Crankshaft Position - Camshaft Position Correlation (Bank 1 & 2 Sensor A)
DTC P0031, P0032, P0051, P0052	Oxygen (A/F) Sensor Heater Control Circuit Low/High (Bank 1 & 2 Sensor 1)
DTC P0037, P0038, P0057, P0058	Oxygen Sensor Heater Control Circuit Low/High (Bank 1 & 2 Sensor 2)
DTC P0100, P0102, P0103	Mass or Volume Air Flow Circuit Low/High Input
DTC P0101	Mass or Volume Air Flow Circuit Range/Performance Problem
DTC P0110, P0112, P0113	Intake Air Temperature Circuit Low/High Input
DTC P0115, P0117, P0118	Engine Coolant Temperature Circuit/Low/High Input
DTC P0116	Engine Coolant Temperature Circuit Range/Performance Problem

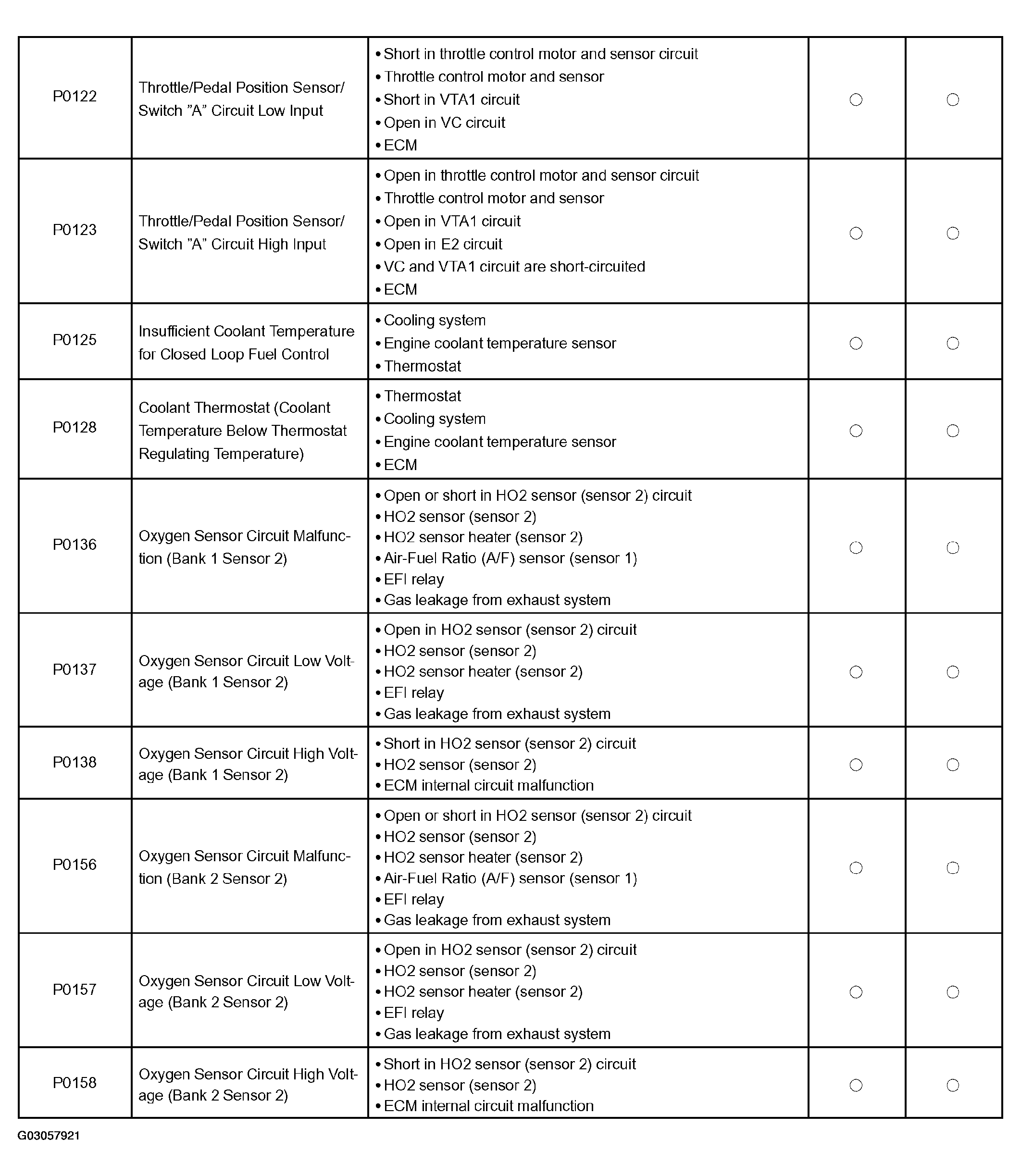

DTC P0120, P0122, P0123, P0220, P0222, P0223, P2135	Throttle/Pedal Position Sensor/Switch "A & B" Circuit Low/High Input & Throttle/Pedal Position Sensor/Switch "A & B" Voltage Correction
DTC P0121	Throttle/Pedal Position Sensor/Switch "A" Circuit Range/Performance Problem
DTC P0125	Insufficient Coolant Temperature for Closed Loop Fuel Control
DTC P0128	Coolant Thermostat (Coolant Temperature Below Thermostat Regulating Temperature)
DTC P0136, P0137, P0138, P0156, P0157, P0158	Oxygen Sensor Circuit Malfunction Low/High Voltage (Bank 1 & 2 Sensor 2)
DTC P0171, P0172, P0174, P0175	System too Lean/Rich (Bank 1 & 2)

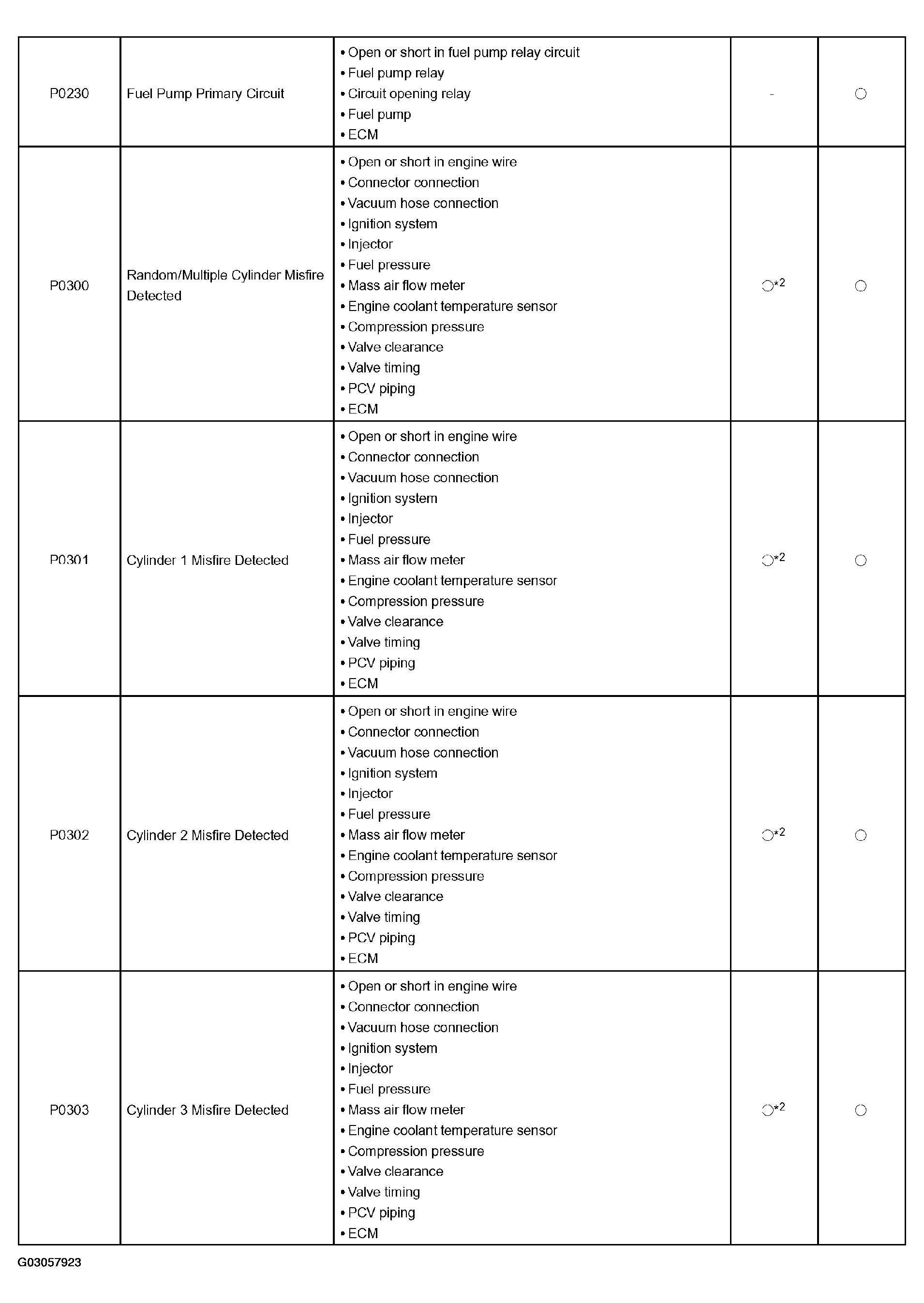

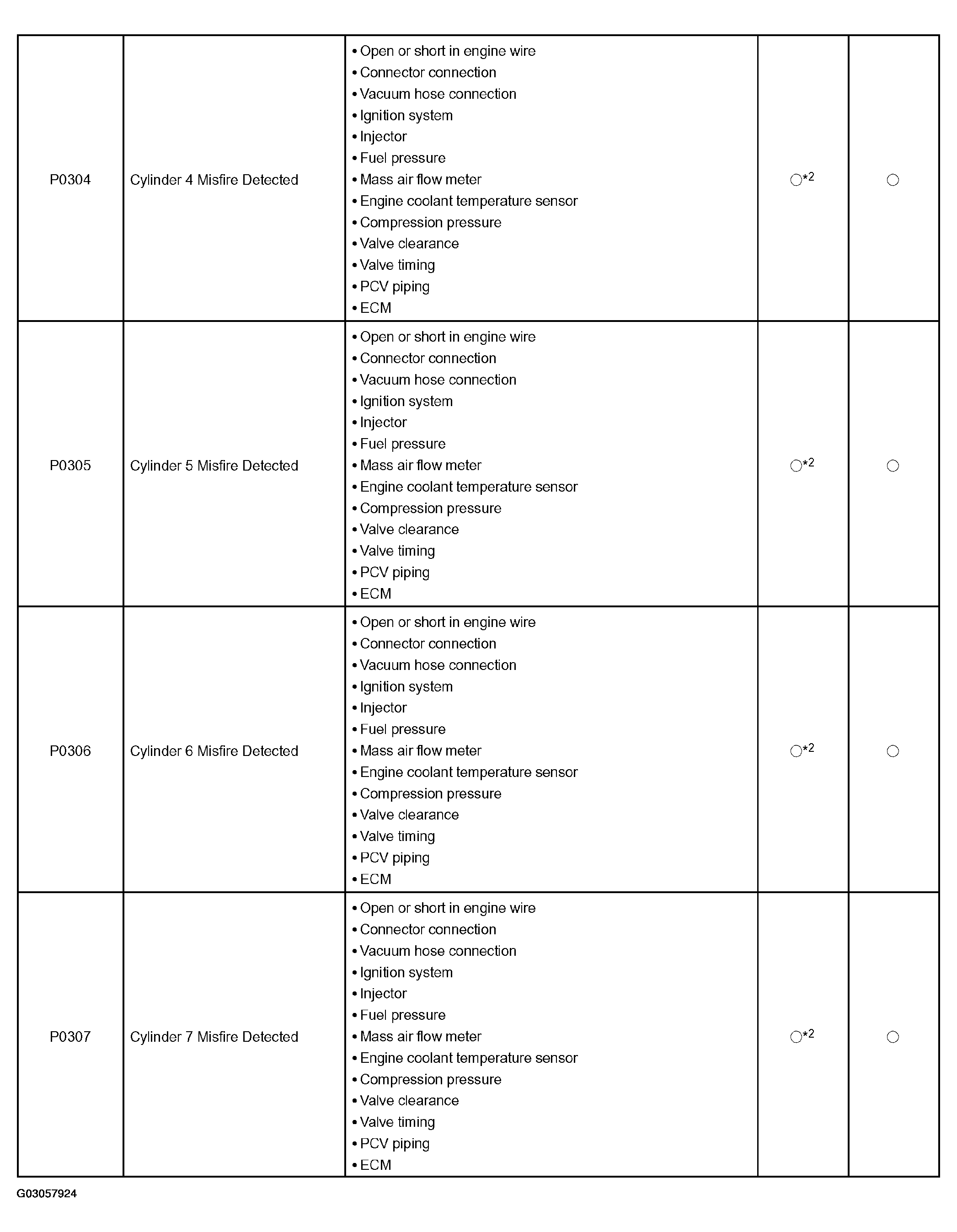

DTC P0300, P0301, P0302, P0303, P0304, P0305, P030, P0307, P0308	Random/Multiple Cylinder Misfire Detected & Cylinder 1-8 Misfire Detected

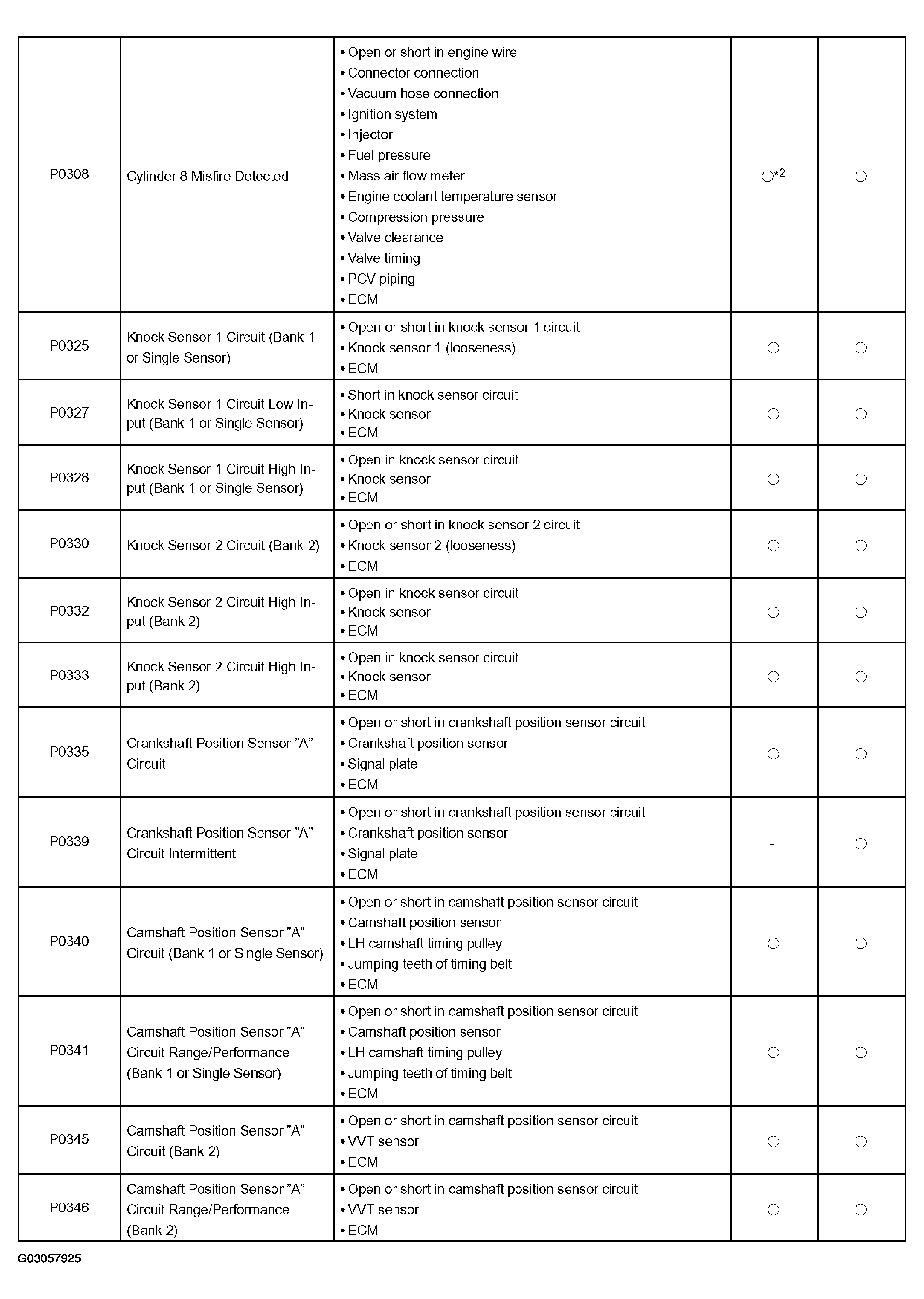

DTC P0325, P0327, P0328, P0330, P0332, P0333	Knock Sensor 1 & 2 Circuit Low/High Input (Bank 1 & 2 or Single Sensor)
DTC P0335, P0339	Crankshaft Position Sensor "A" Circuit Intermittent
DTC P0340, P0341, P0345, P0346	Camshaft Position Sensor "A" Circuit Range/Performance (Bank 1 & 2 or Single Sensor)
DTC P0351, P0352, P0353, P0354, P0355, P0356, P0357, P0358	Igniter Coil "A-H" Primary/Secondary Circuit
DTC P0412	Secondary Air Injection System Air Switching Valve "A" Circuit
DTC P0418	Air Injection System Air Pump Malfunction
DTC P0420, P0430	Catalyst System Efficiency Below Threshold (Bank 1 & 2)

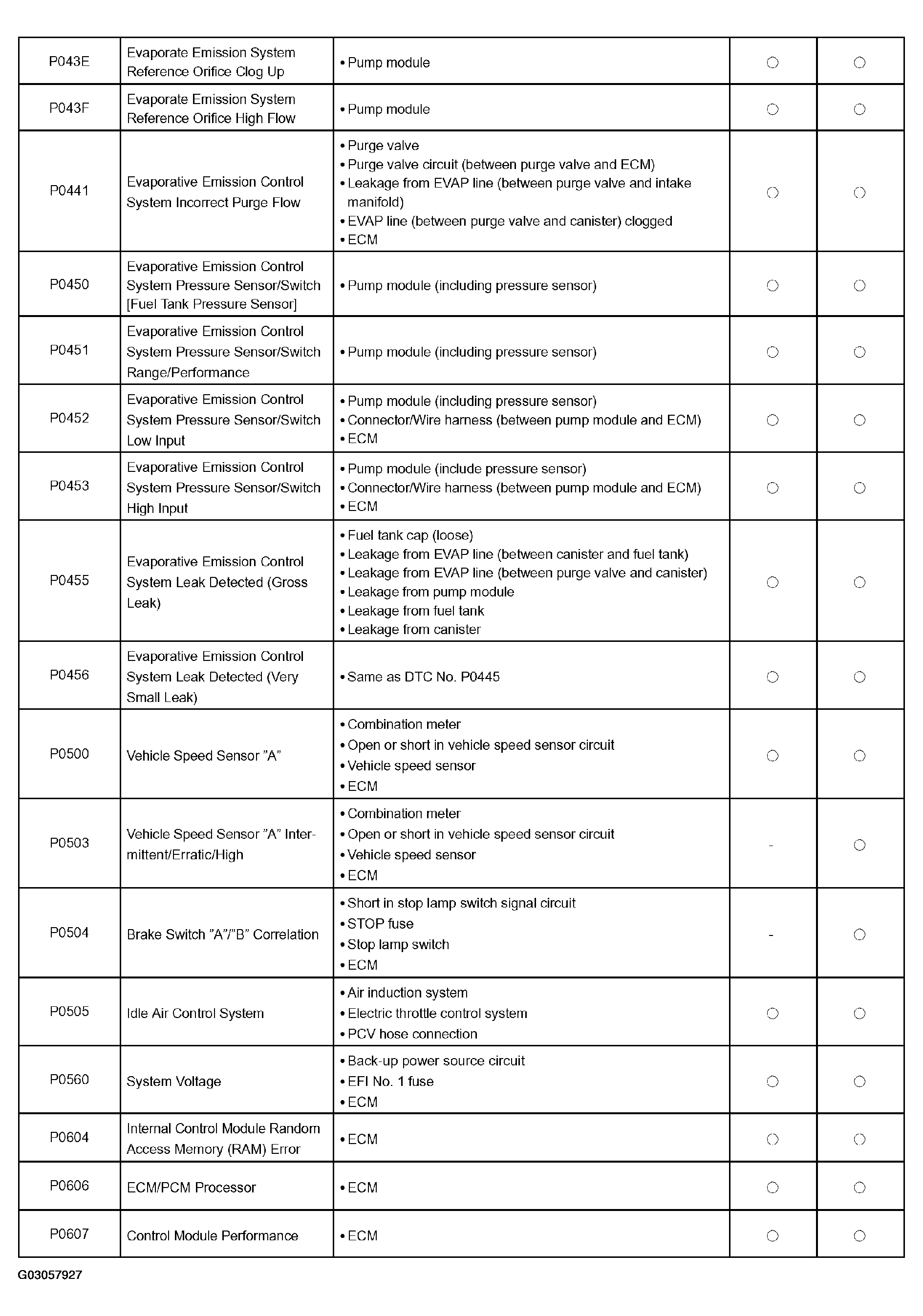

DTC P0441	Evaporative Emission Control System Incorrect Purge Flow
DTC P0450, P0451, P0452, P0453	Evaporative Emission Control System Pressure Sensor/Switch Range/Performance Low/High Input
DTC P0455, P0456	Evaporative Emission Control System Leak Detected (Gross Leak/Very Small Leak)
DTC P0500, P0503	Vehicle Speed Sensor "A" Intermittent/Erratic/High
DTC P0504	Brake Switch "A"/"B" Correlation
DTC P0505	Idle Air Control System
DTC P0560	System Voltage
DTC P0604, P0606, P0607, P0657	Internal Control Module Random Access Memory (RAM) Error, ECM/PCM Processor, Control Module Performance & Actuator Supply Voltage Circuit/Open
DTC P0617	Starter Relay Circuit High
DTC P0630	VIN not Programmed or Mismatch ECM/PCM
DTC P1340, P1341	Camshaft Position Sensor "A" (Bank Sensor 1)
DTC P1440, P1443	Secondary Air Injection System Control Valve Circuit Bank 1 & 2
DTC P1441, P1444, P2440	Secondary Air Injection System Switching Valve No. 2 Stuck Open Bank 1 & 2
DTC P1442, P1445, P2441	Secondary Air Injection System Switching Valve No. 2 Stuck Close Bank 1 & 2\
DTC P1613	Air Injection System Air Injection Driver

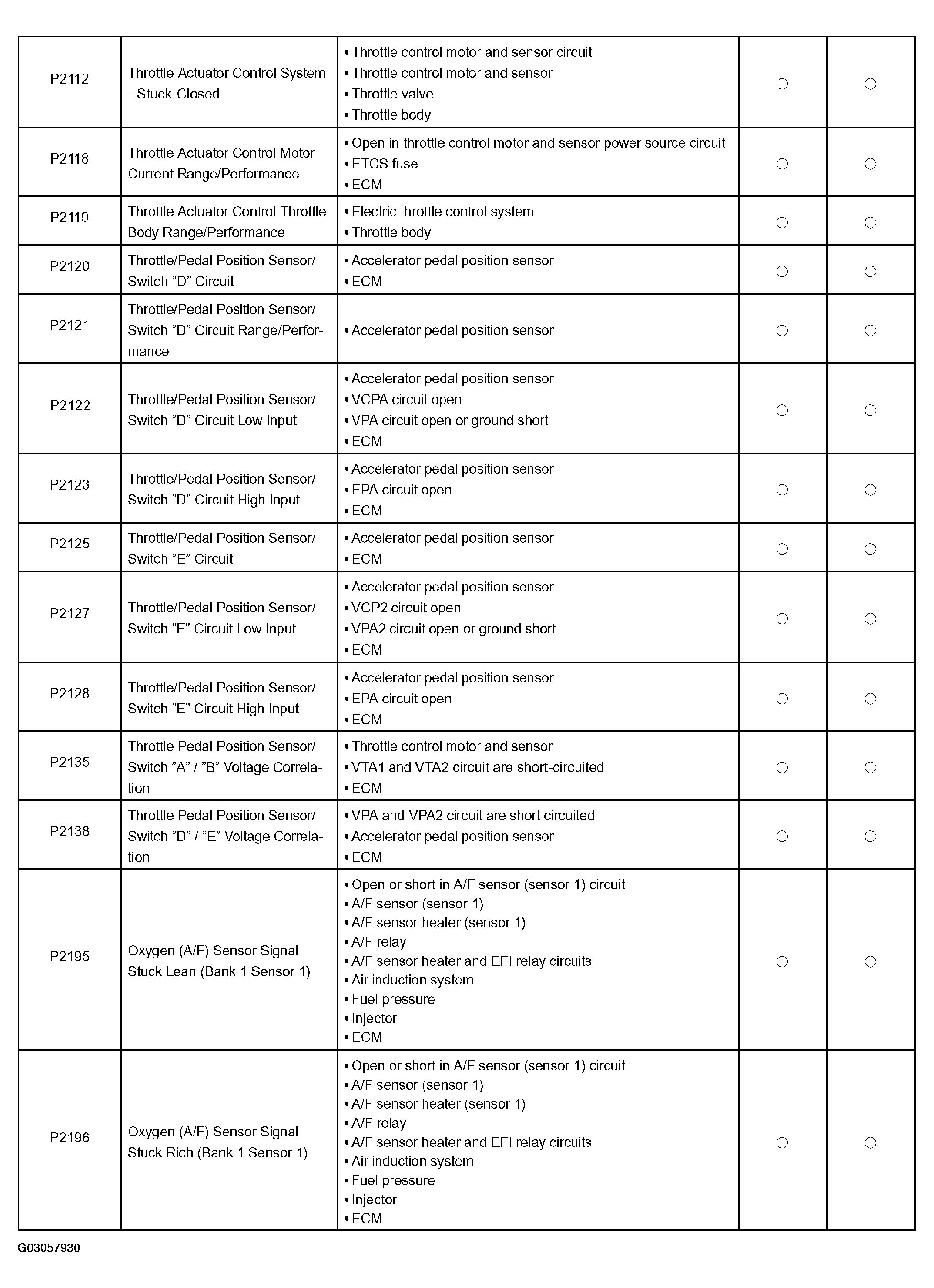

DTC P2102, P2103	Throttle Actuator Control Motor Circuit Low/High
DTC P2111, P2112	Throttle Actuator Control System-Stuck Open/Closed
DTC P2118	Throttle Actuator Control Motor Current Range/Performance
DTC P2119	Throttle Actuator Control Throttle Body Range/Performance
DTC P2120, P2122, P2123, P2125, P2127, P2128, P2138	Throttle/Pedal Position Sensor/Switch "D & E" Circuit Low/High Input & Throttle/Pedal Position Sensor/Switch "D & E" Voltage Correlation
DTC P2121	Throttle/Pedal Position Sensor/Switch "D" Circuit Range/Performance
DTC P2195, P2196, P2197, P2198	Oxygen (A/F) Sensor Signal Stuck Lean/Rich (Bank 1 & 2 Sensor 1)
DTC P2238, P2239, P2241, P2242, P2252, P2253, P2255, P2256	Oxygen Sensor Pumping Current Circuit Low/High (For A/F Sensor) (Bank 1 & 2 Sensor1) & Oxygen Sensor Reference Ground Circuit Low/High (For A/F Sensor) (Bank 1 & 2 Sensor1)
DTC P2401, P2402	Evaporative Emission System Leak Detection Pump Control Circuit Low/High
DTC P2419, P2420	Evaporate Emission System Switching Valve Control Circuit Low/High
DTC P2430, P243, P2432, P2433	Secondary Air Injection System Air Flow/Pressure Sensor Circuit Range/Performance Low/High Bank 1
DTC P2444, P2445	Secondary Air Injection System Pump Stuck ON/OFF Bank 1
DTC P2610	ECM/PCM Internal Engine OFF Timer Performance
DTC U0001	High Speed Can Communication Circuit
DTC P043E, P043F	Evaporate Emission System Reference Orifice Clog Up/High Flow
DTC P2A00, P2A03	A/F Sensor Circuit Slow Response (Bank 1 & 2 Sensor 1)

HINT:

Parameters listed in the chart may not be exactly the same as your reading due to the type of instrument or other factors.

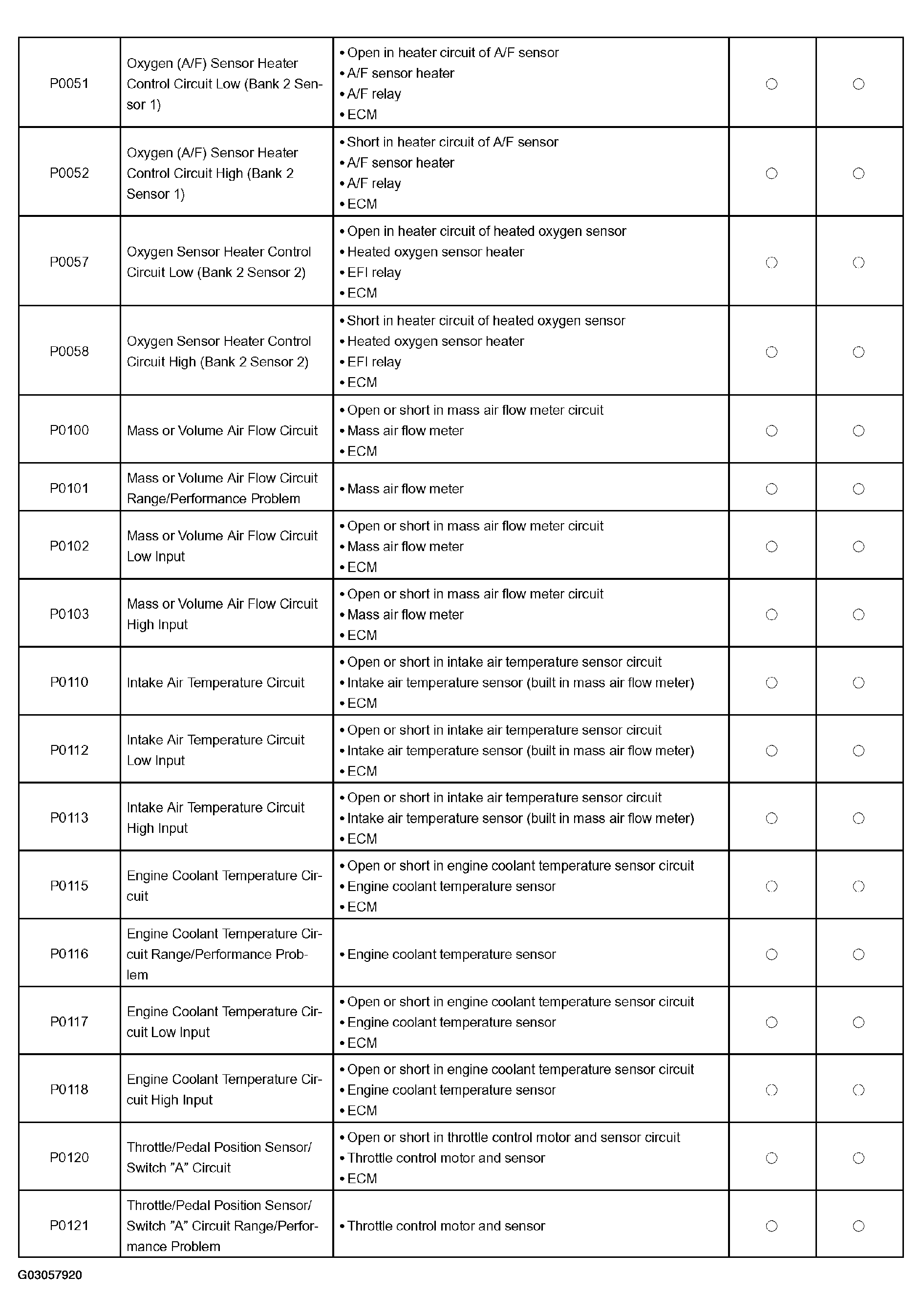

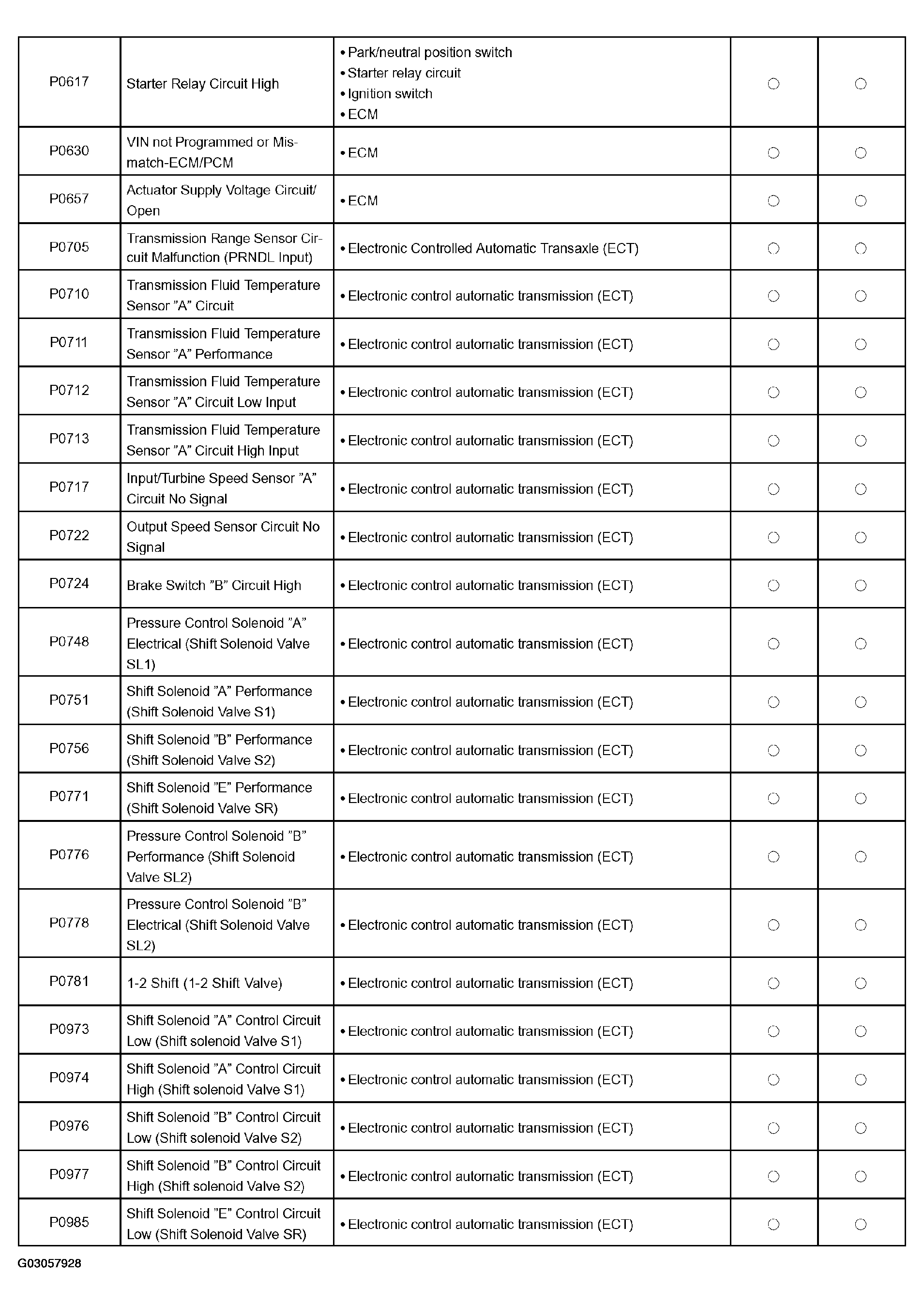

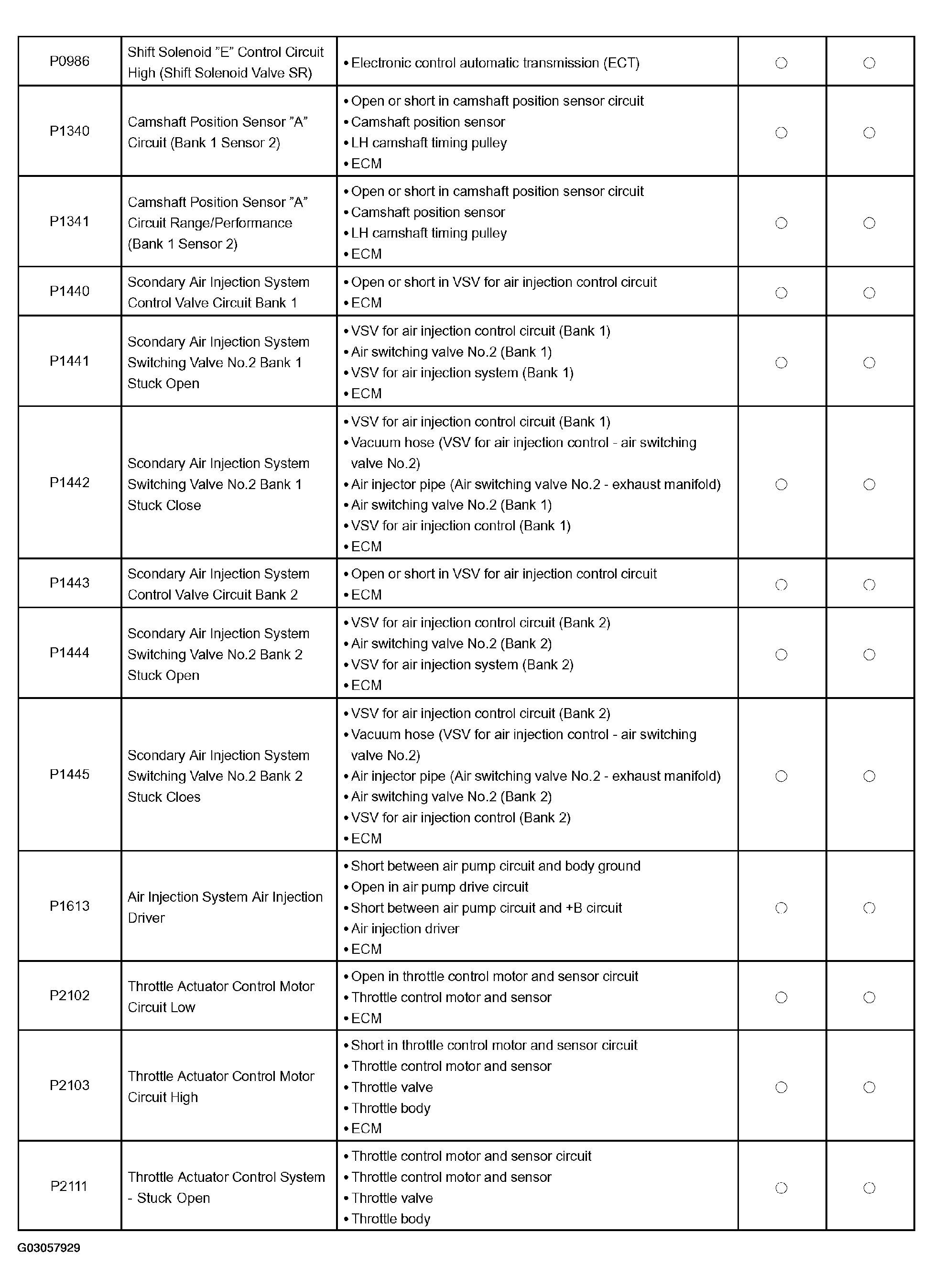

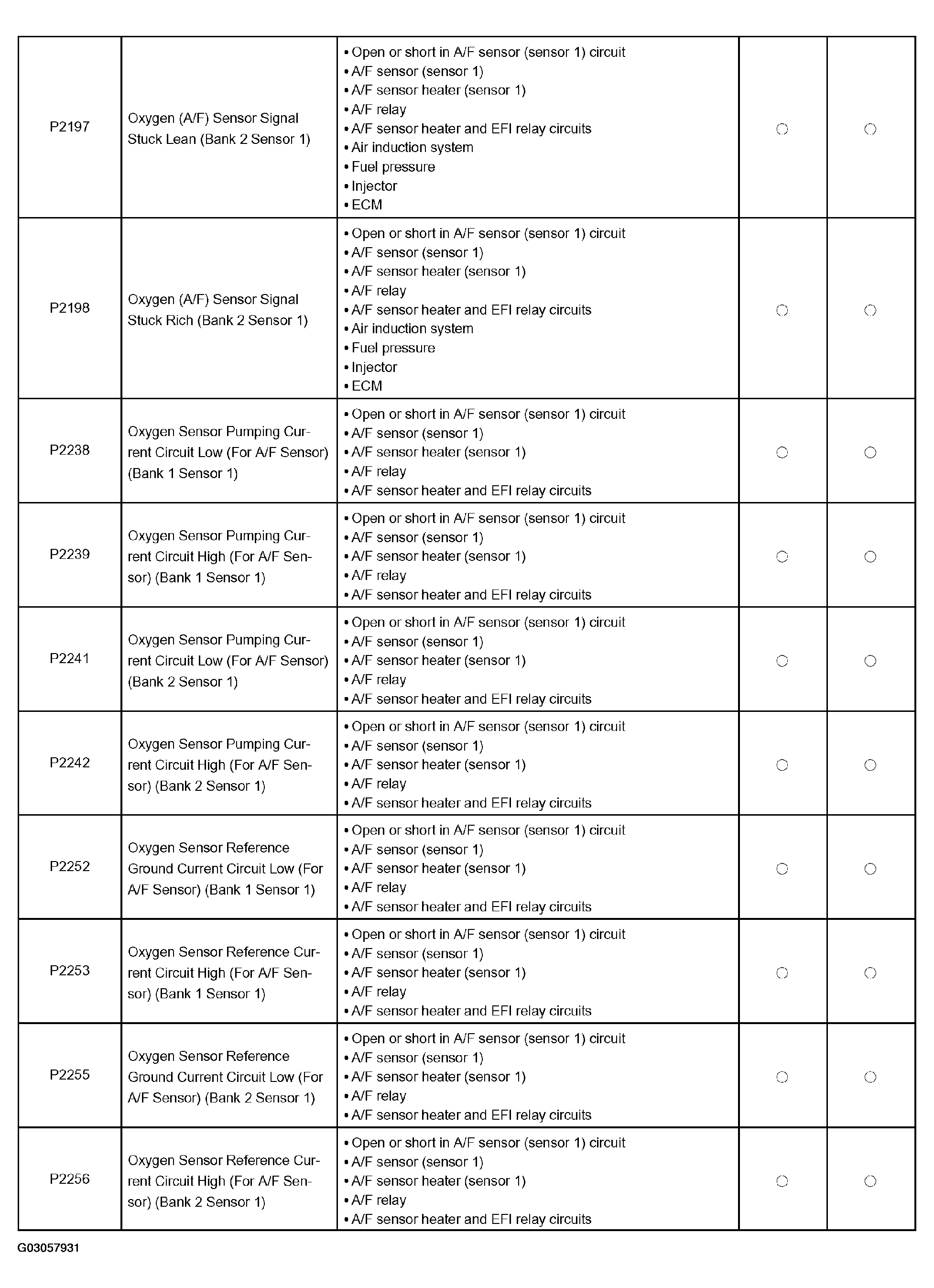

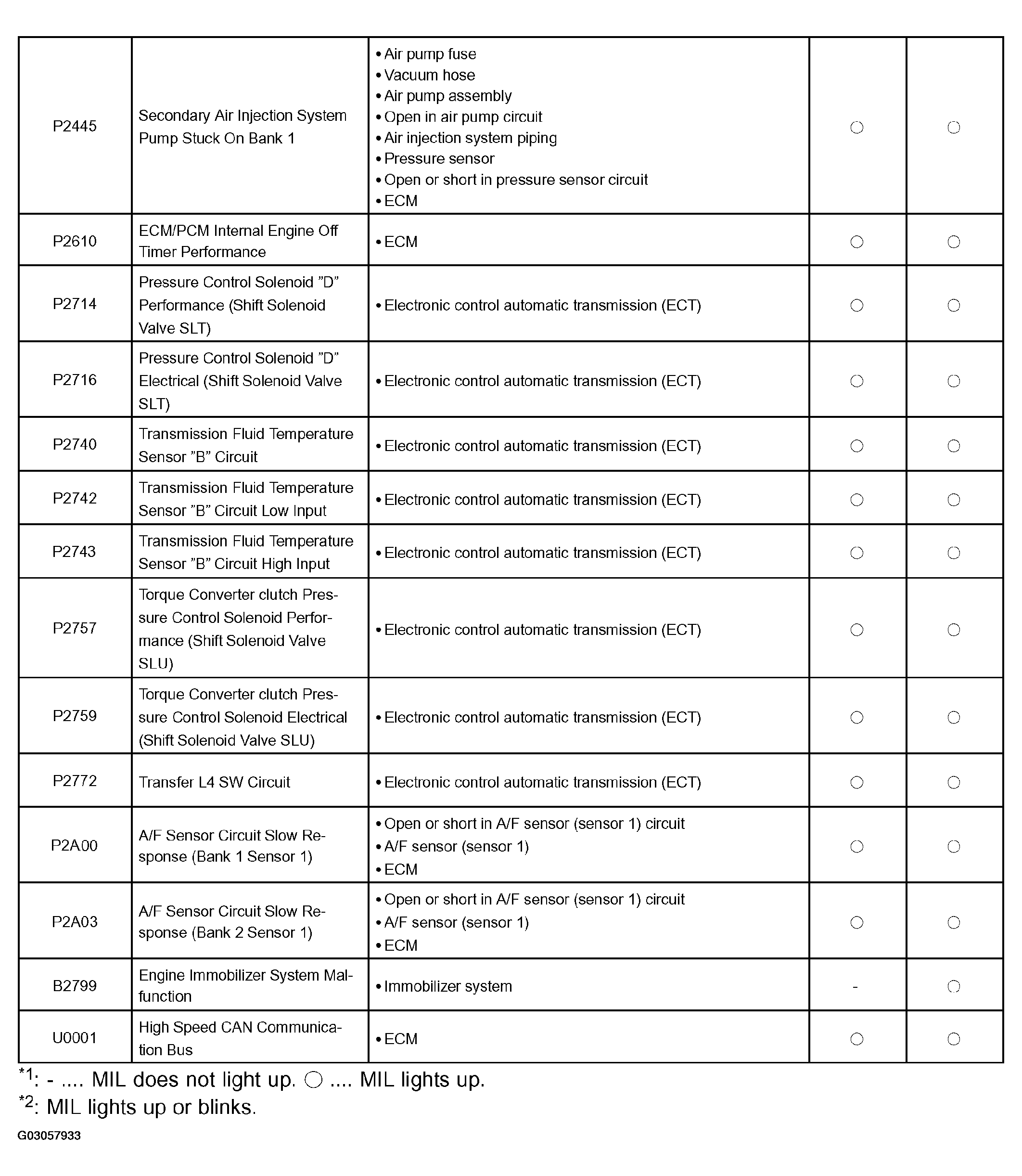

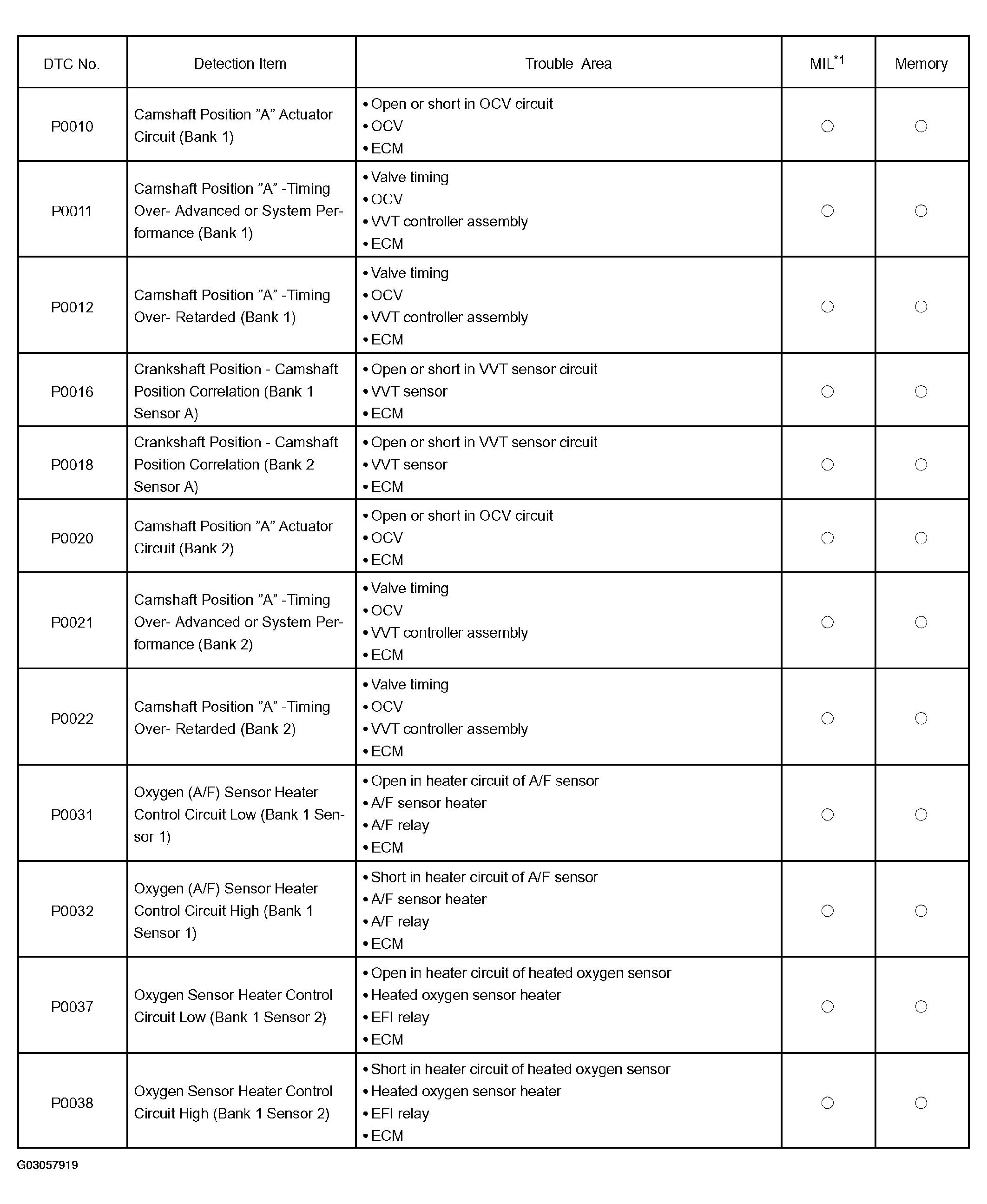

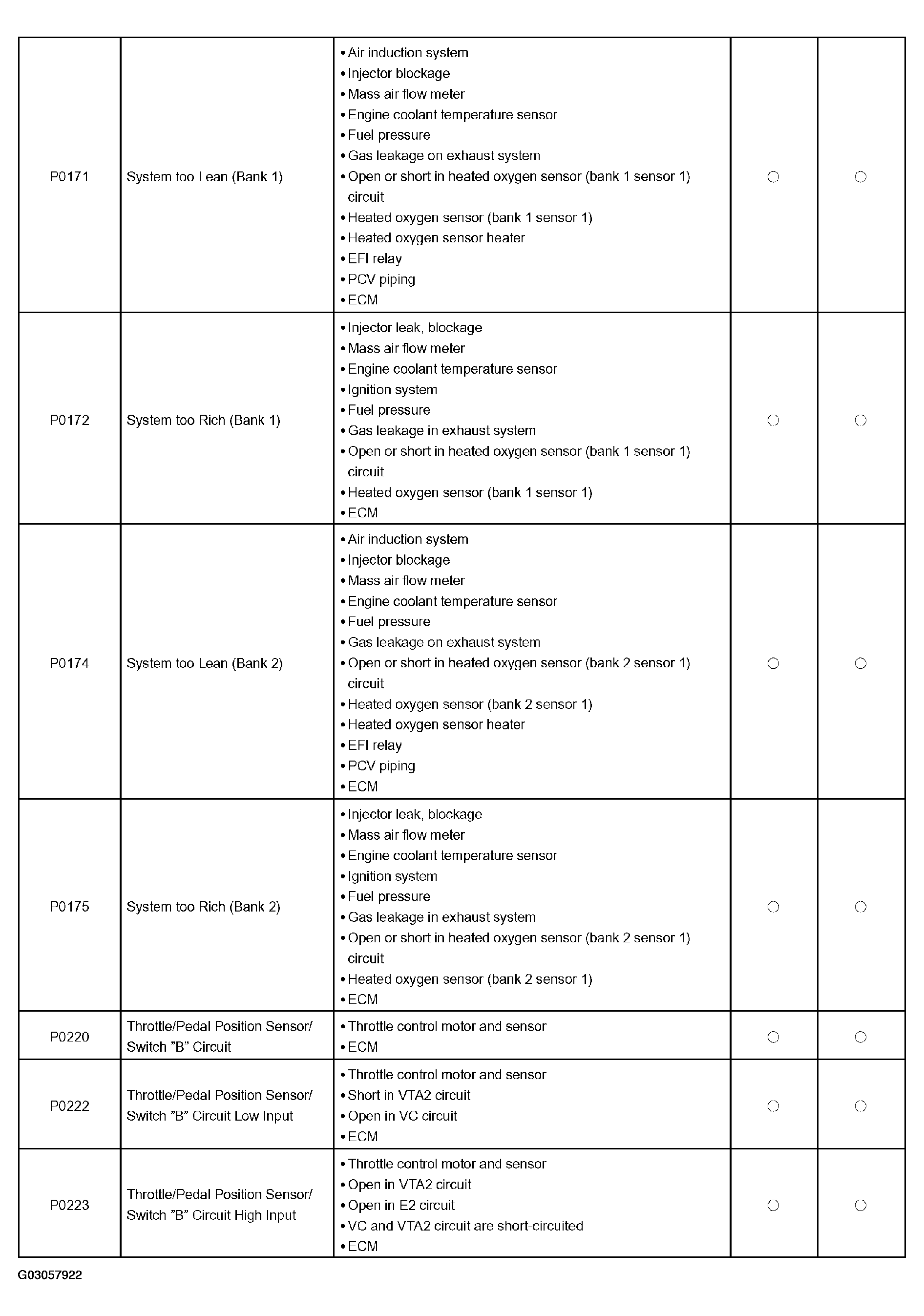

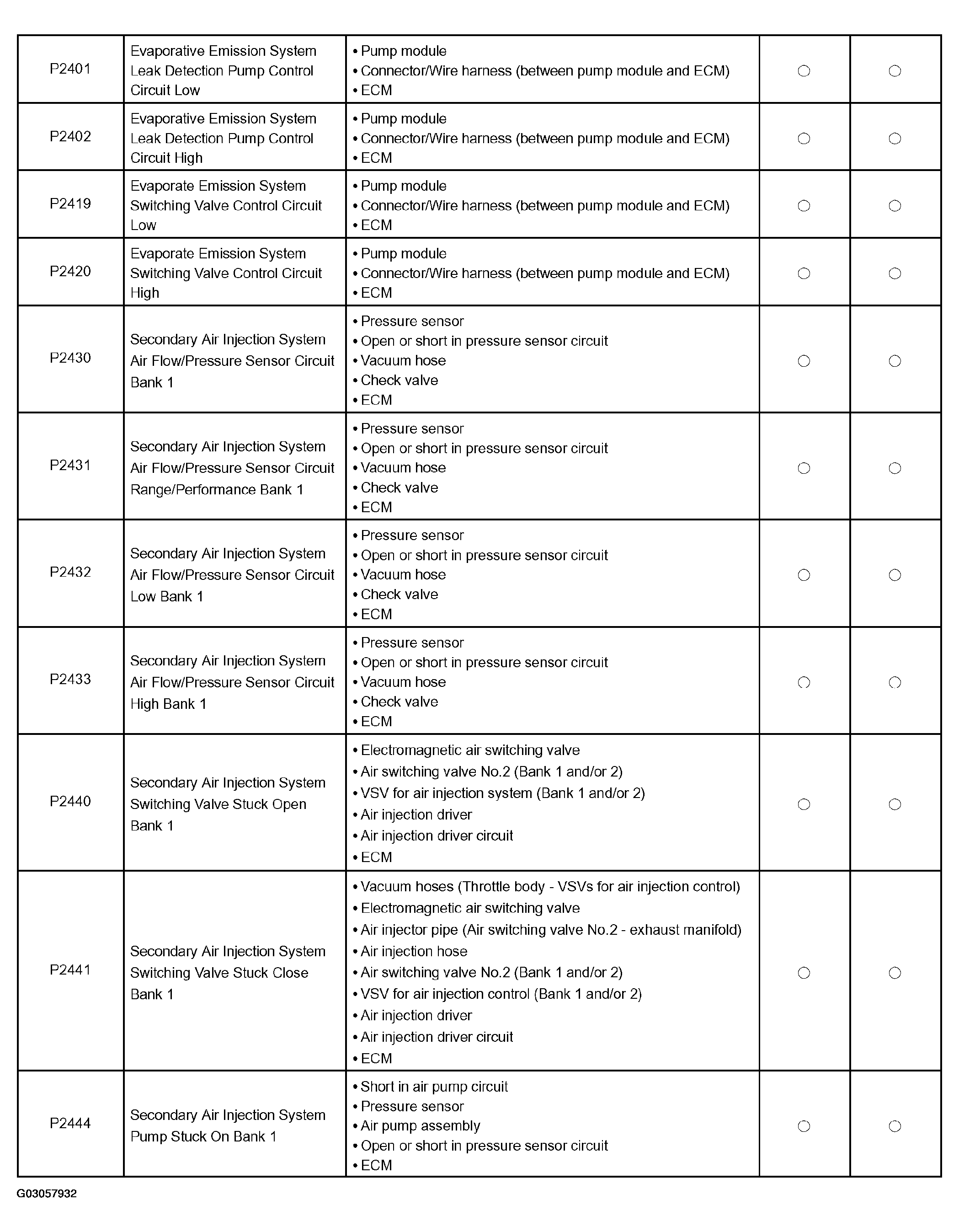

If a malfunction code is displayed during the DTC check in check mode, check the circuit for the codes listed in the table below. For details of each code, refer to the "See page" under the respective "DTC No." in the DTC chart.
