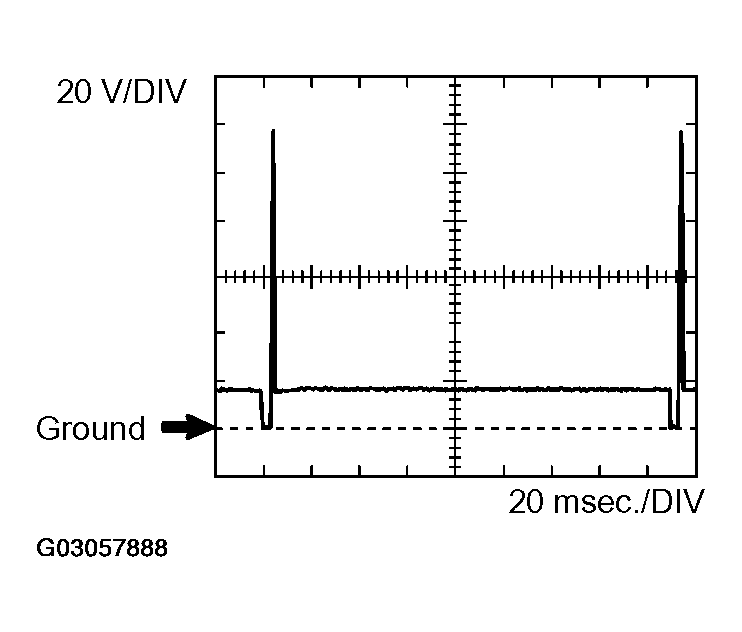

Waveform 1
Fuel injector
FUEL INJECTOR SPECIFICATIONS
| ECM Terminal Names |
Between #10 (to 40) and E01 |
| Tester Ranges |
20 V/DIV, 20 msec./DIV |
| Conditions |
Idling |
HINT:
The wavelength becomes shorter as the engine RPM increases.
