Home >> Toyota >> 2005 >> Sienna CE >> Repair and Diagnosis >> Body & Frame >> Windows >> Windshield/WINDOWGLASS/Mirror >> Window Defogger System >> Location

Window Defogger System: Location

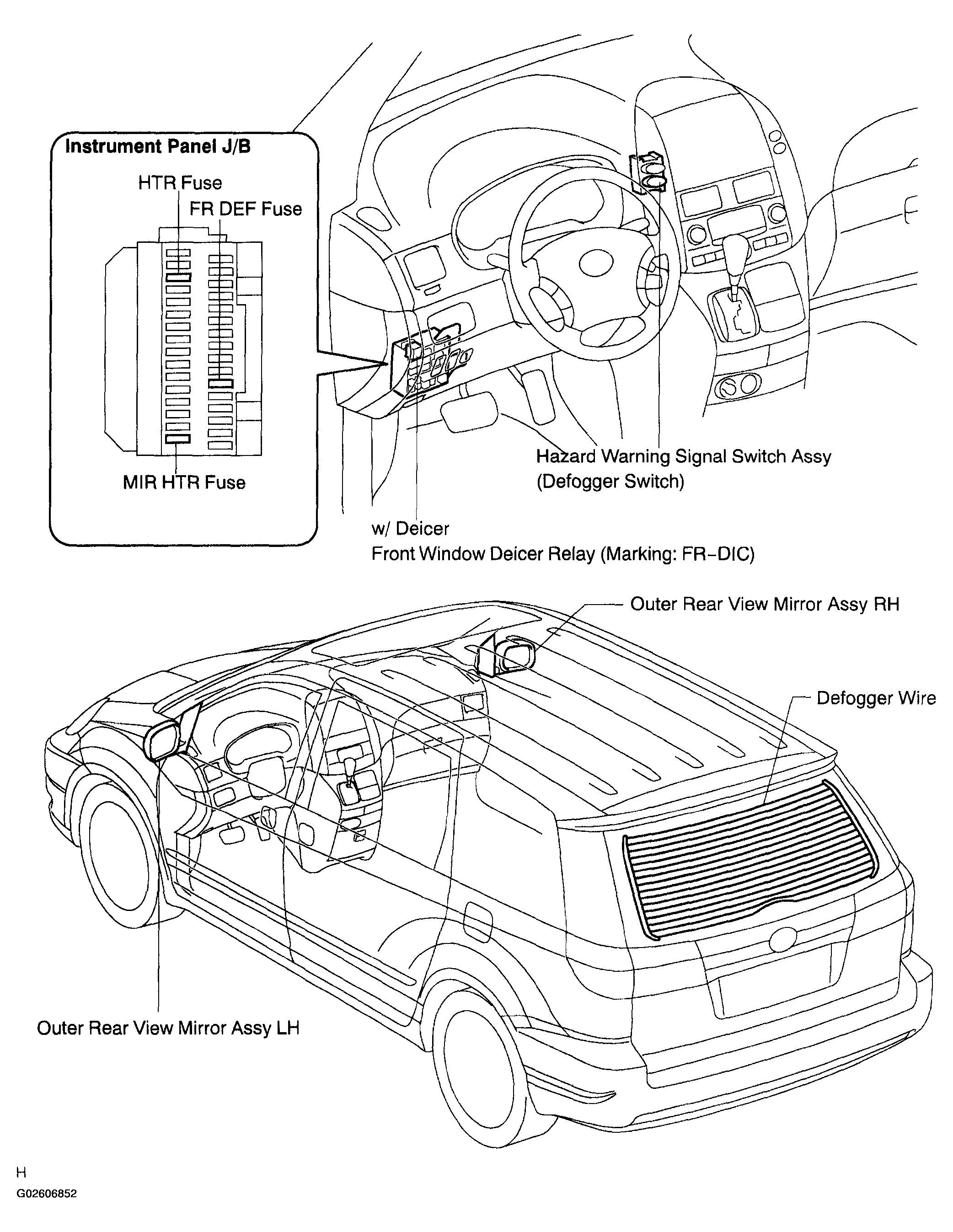

Fig 1: Window Defogger System Component Location (1 Of 2)
G02606852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

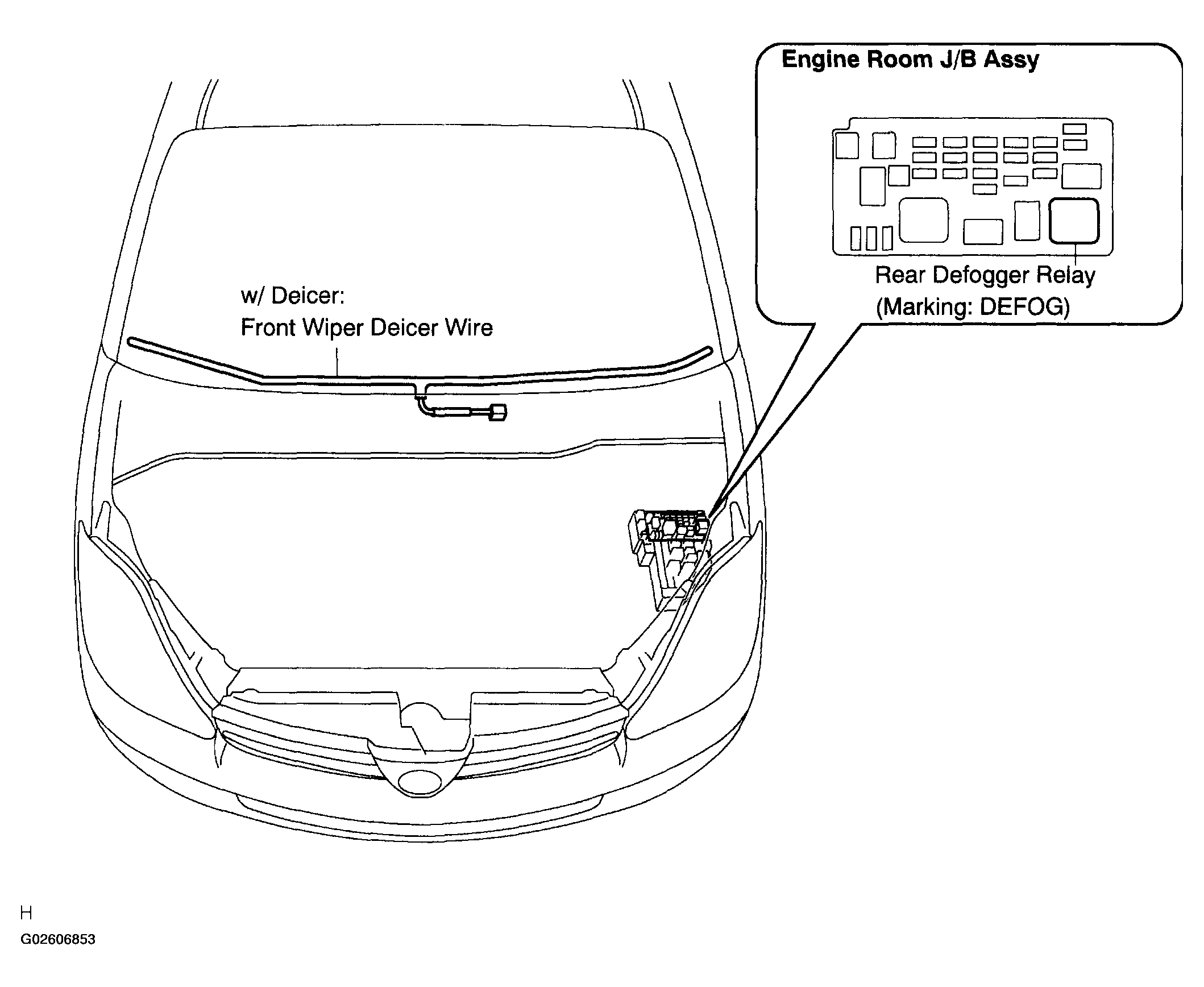

Fig 2: Window Defogger System Component Location (2 Of 2)
G02606853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
