Home >> Toyota >> 2005 >> Sienna CE >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Engine Fuel System >> Fuel Tank ASSY >> Components

Fuel Tank ASSY: Components

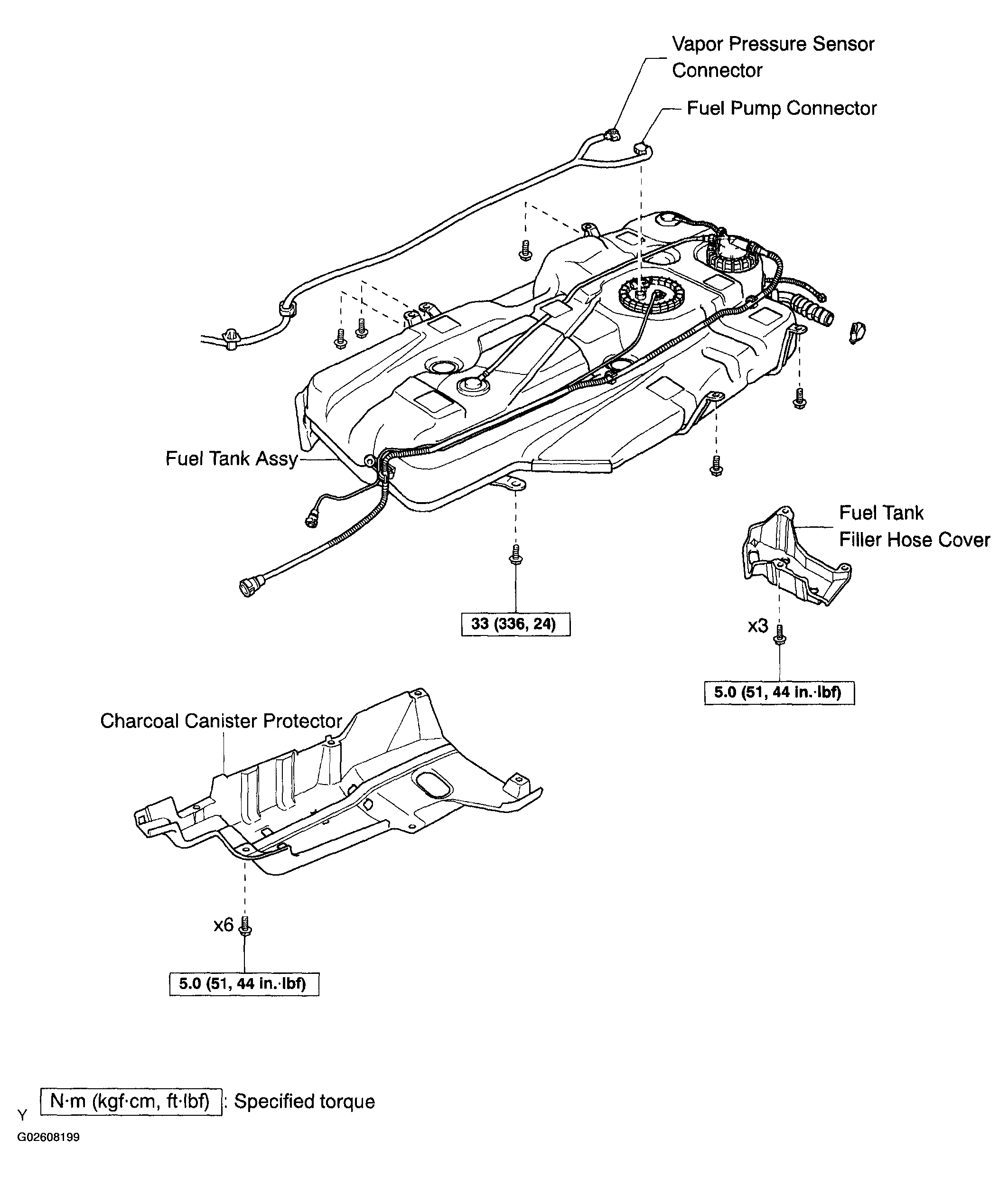

Fig 1: Identifying Fuel Tank Assy Replacement Components With Torque Specifications (1 Of 2)
G02608199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

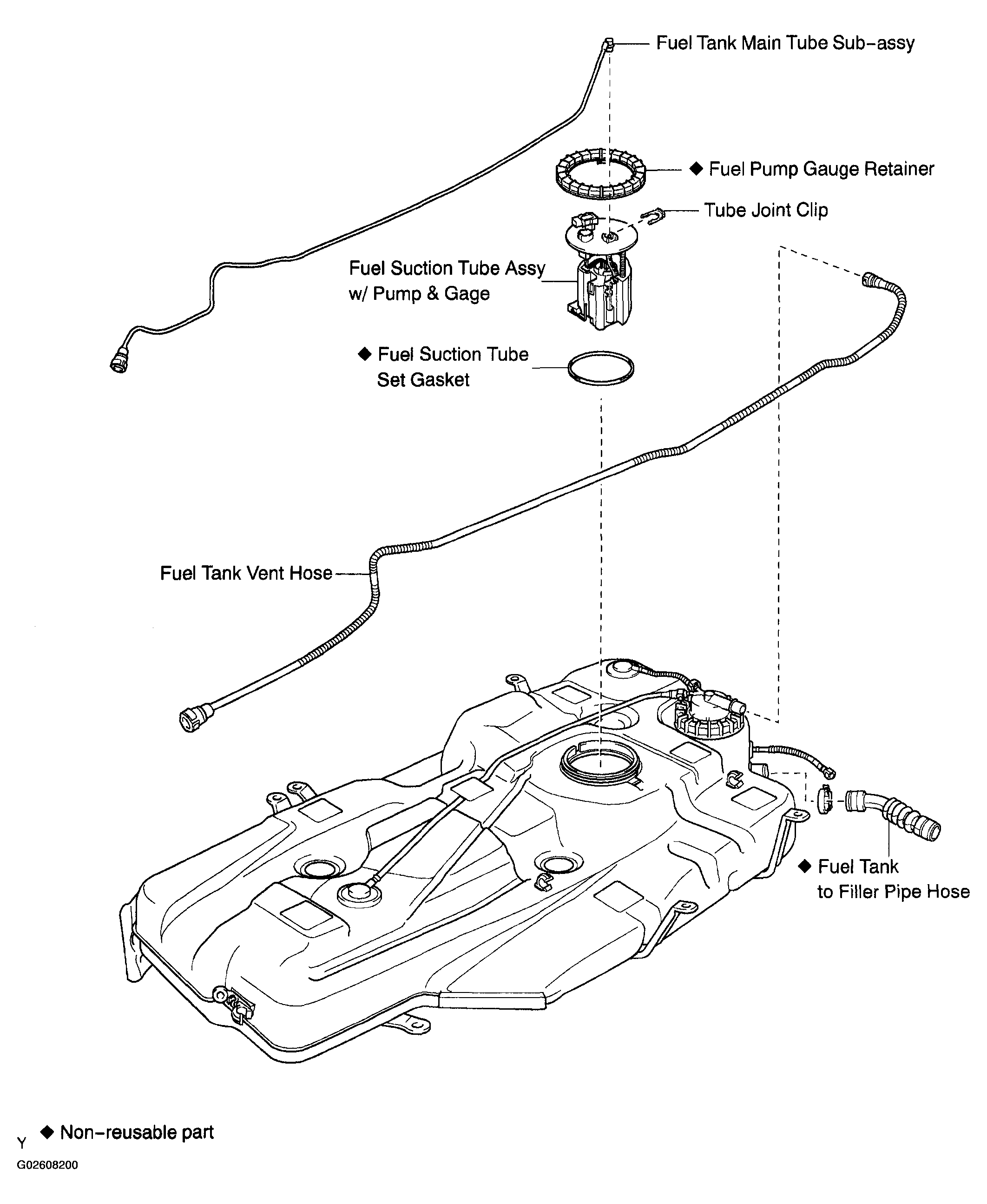

Fig 2: Identifying Fuel Tank Assy Replacement Components With Torque Specifications (2 Of 2)
G02608200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
