Vehicle Lift And Support Locations

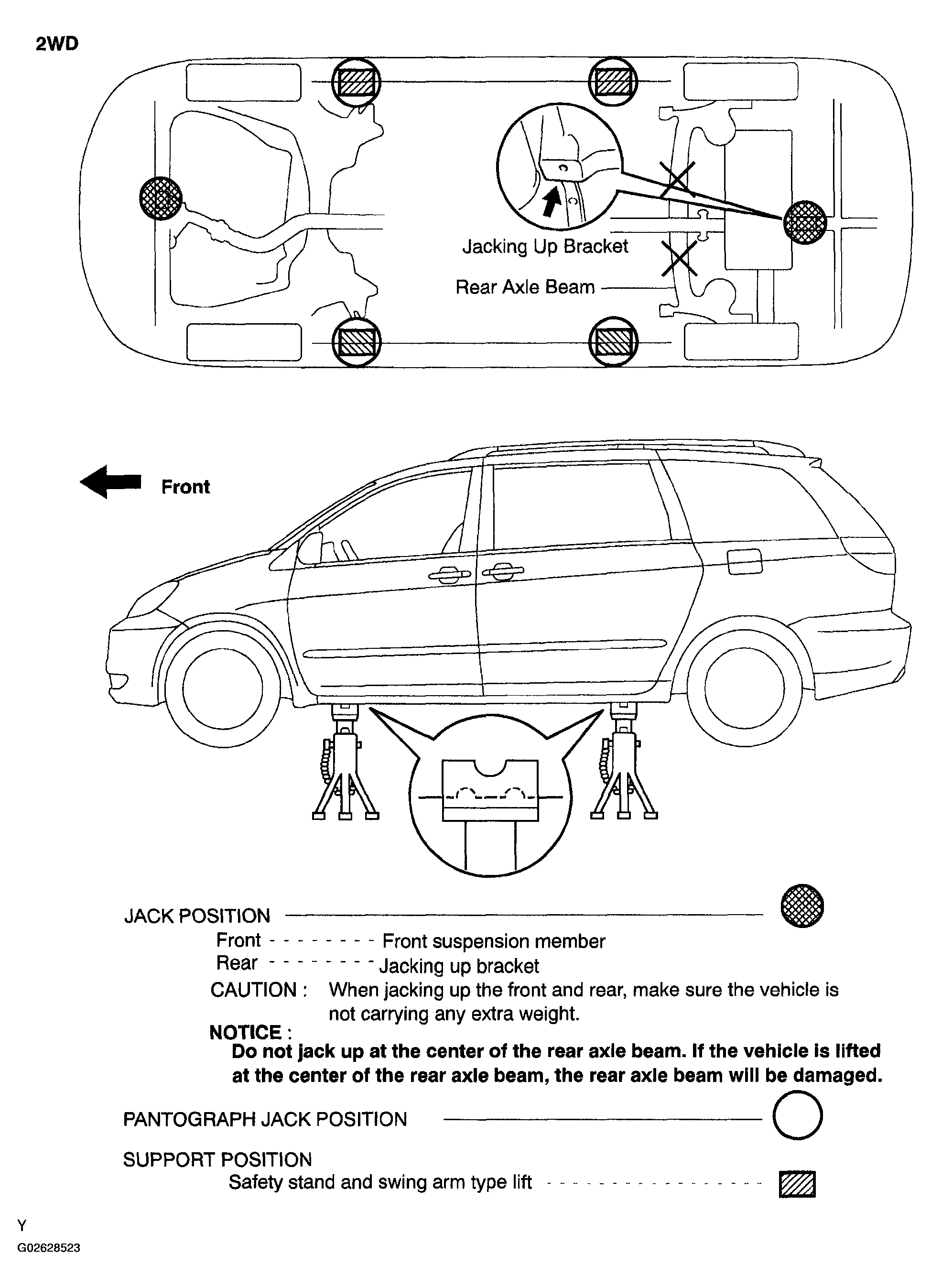

Fig 1: Identifying Locations Vehicle Lift & Support (2WD)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

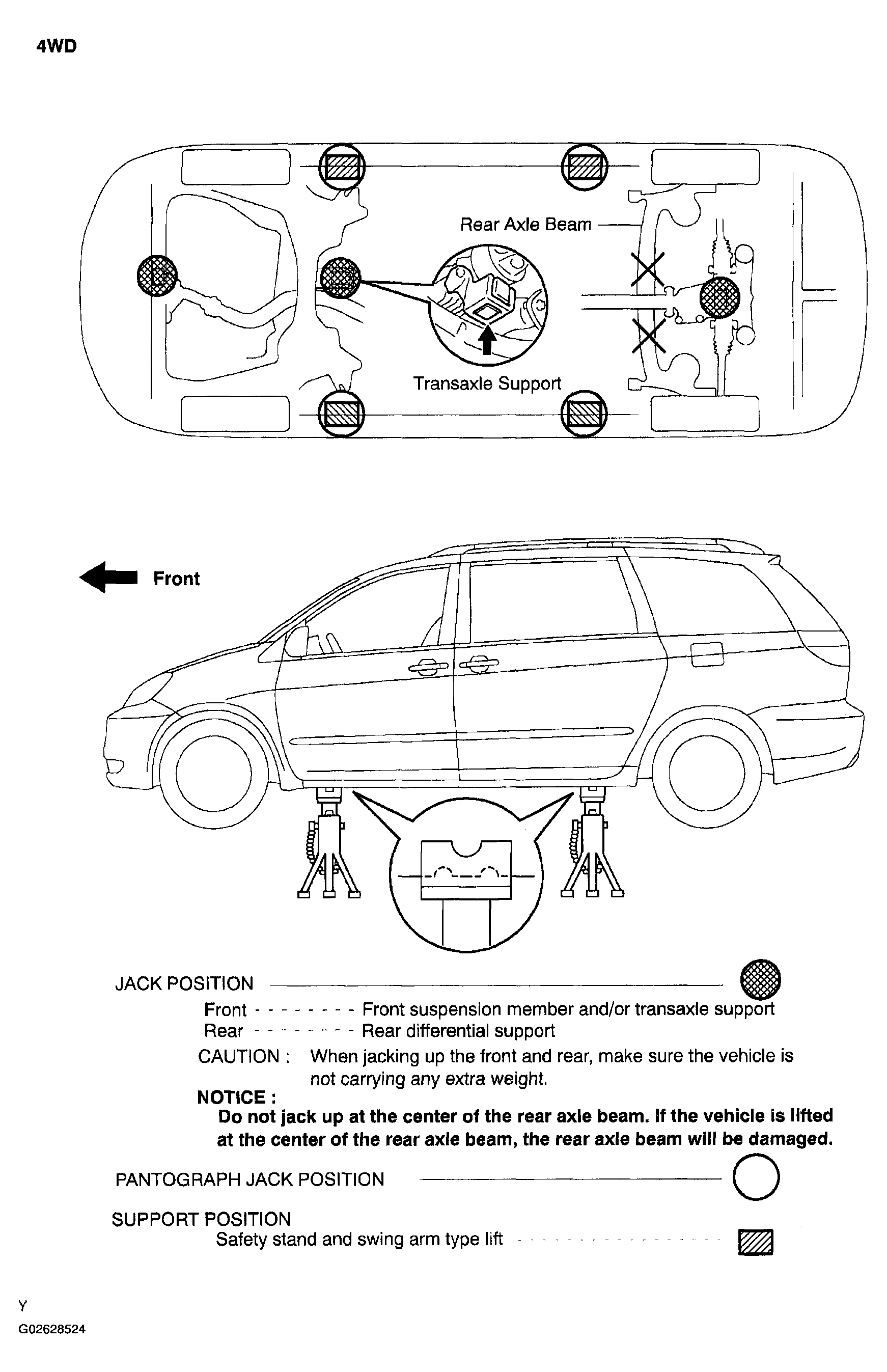

Fig 2: Identifying Locations Vehicle Lift & Support (4WD)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

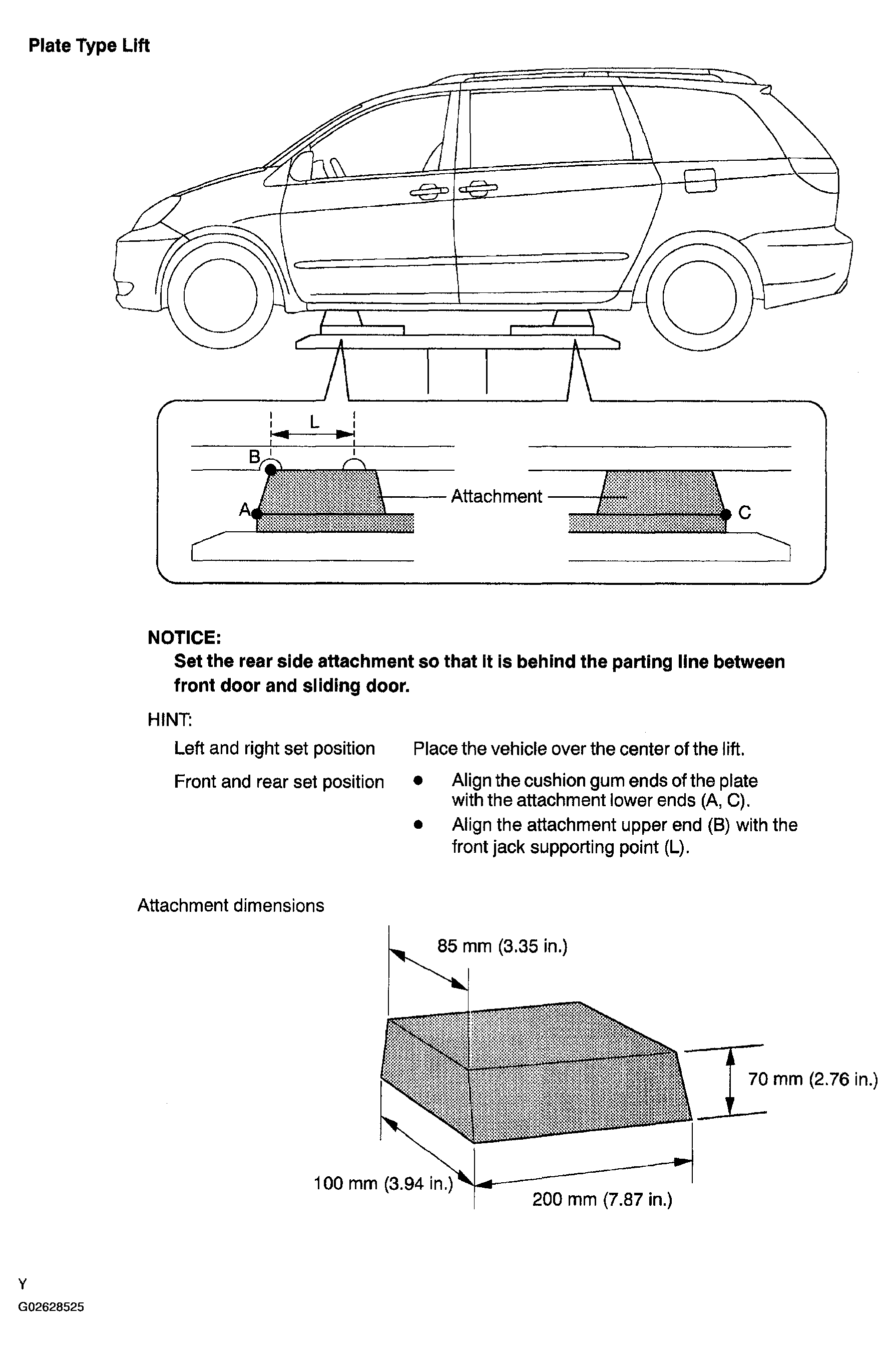

Fig 3: Identifying Locations Vehicle Lift & Support (Plate Type Lift)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
