Home >> Toyota >> 2005 >> Sienna LE, FWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Preparation >> Starting & Charging >> Preparation >> SST

Starting & Charging: Preparation: SST

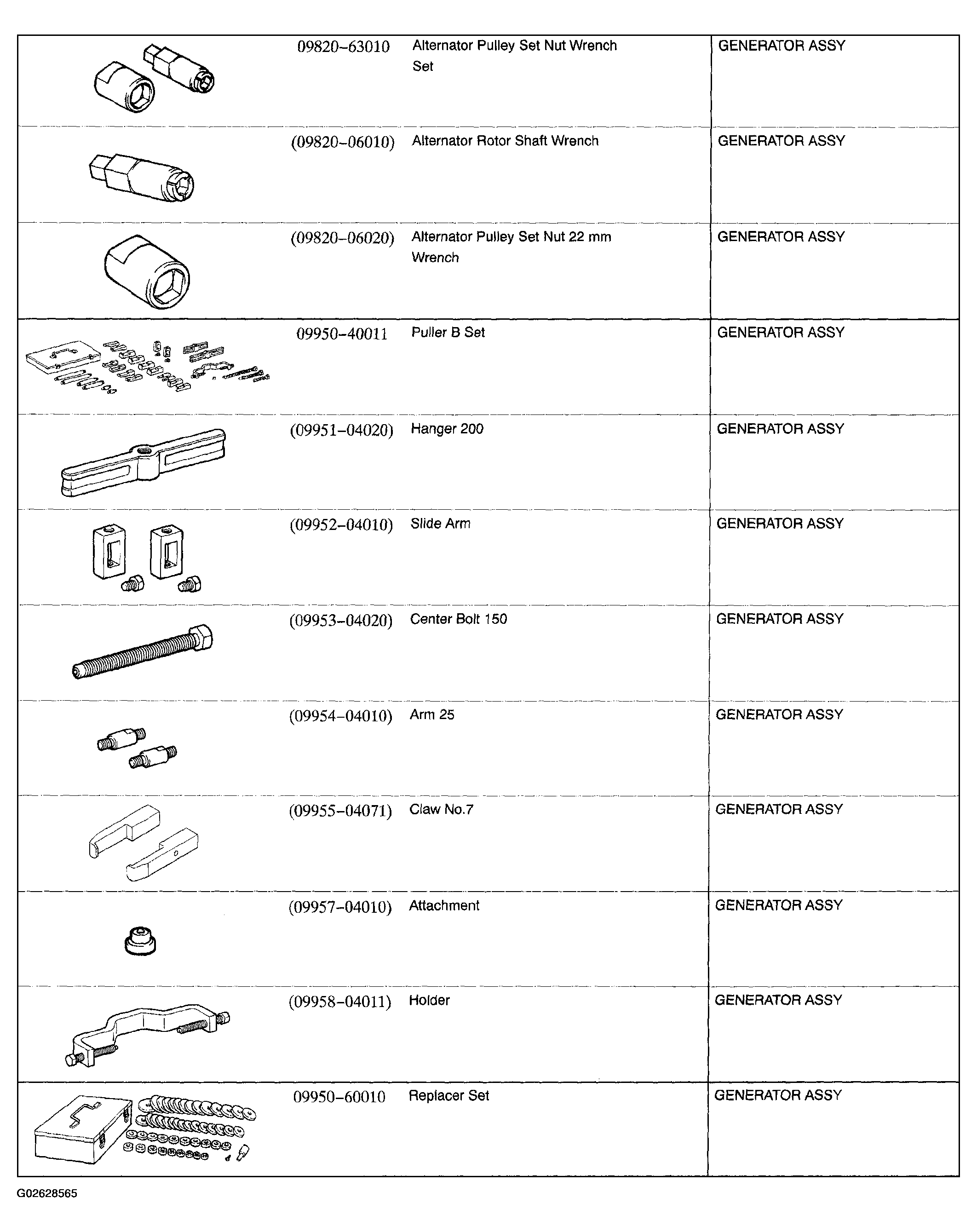

Fig 1: Starting & Charging - SST Tool Table (1 Of 2)
G02628565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

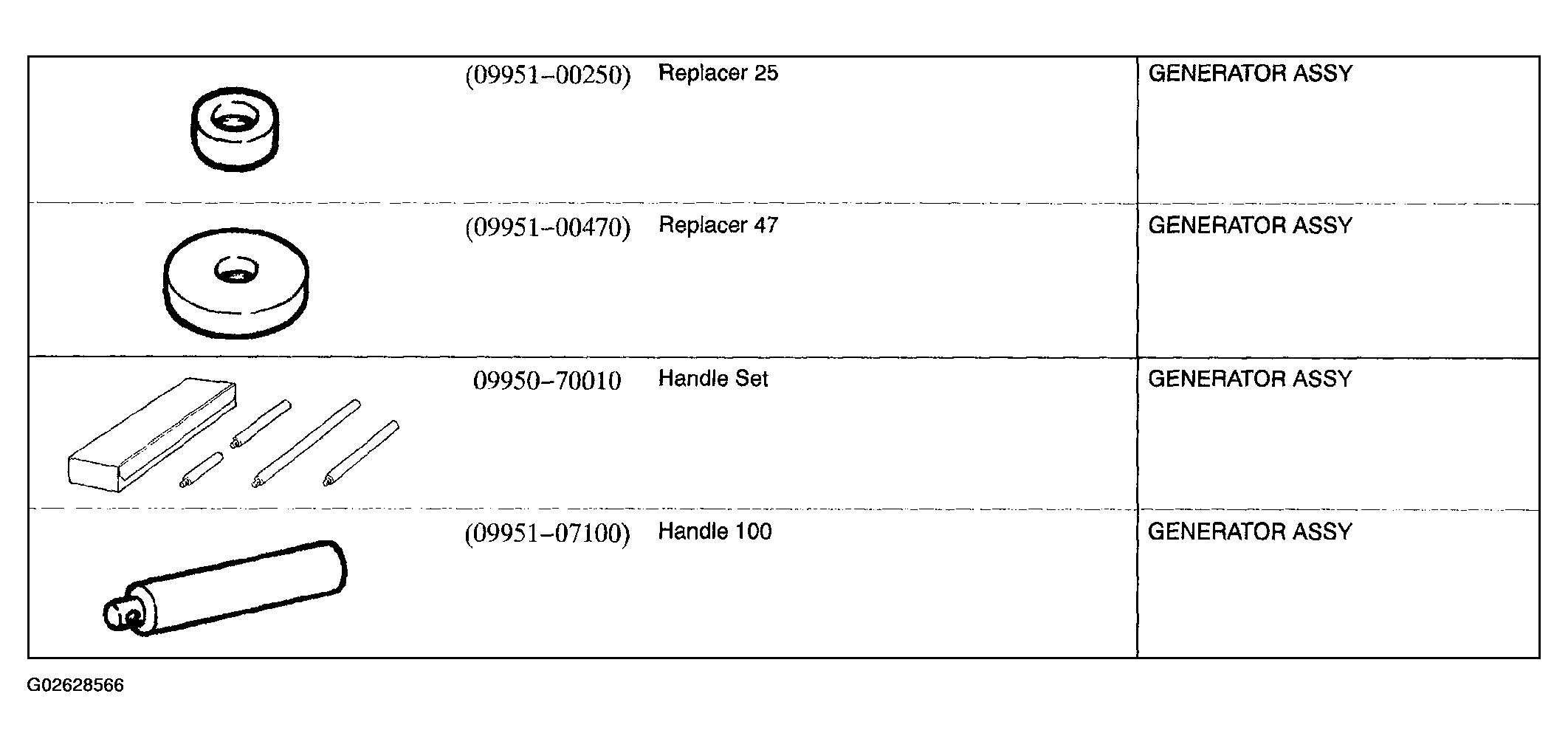

Fig 2: Starting & Charging - SST Tool Table (2 Of 2)
G02628566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
