Fuel Tank ASSY: Components

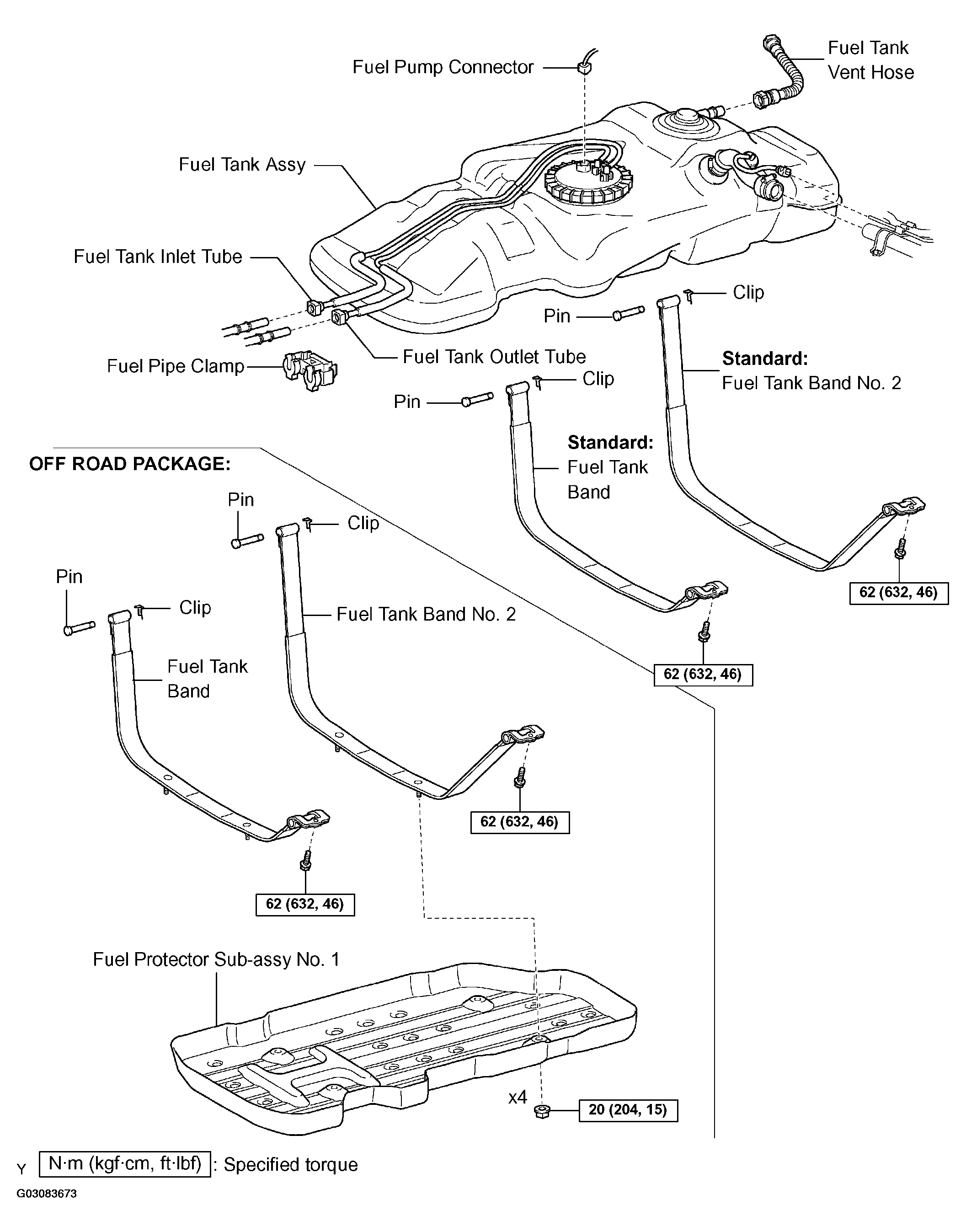

Fig 1: Fuel Tank Assy Replacement Components & Torque Specification (1 Of 2)
G03083673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

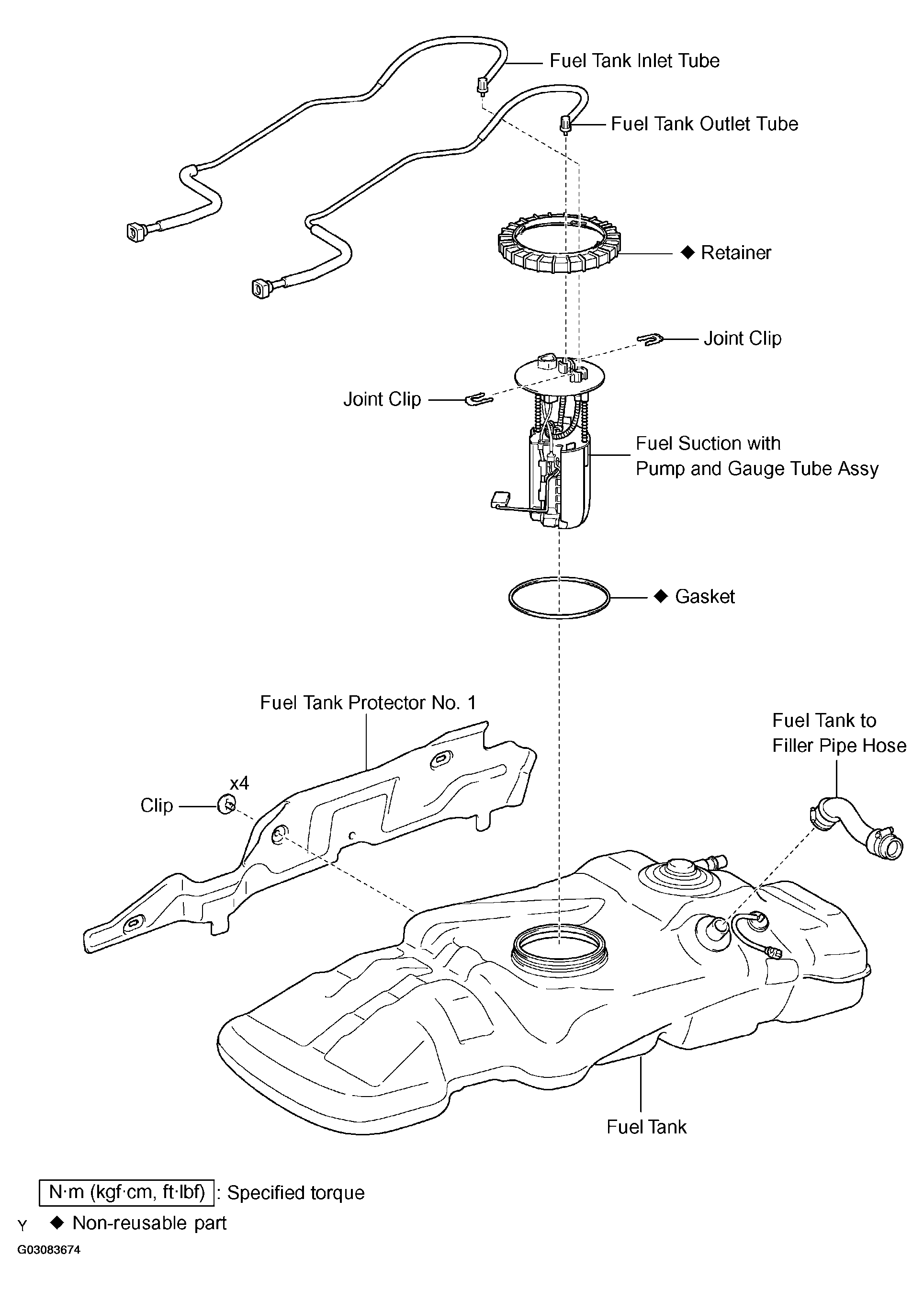

Fig 2: Fuel Tank Assy Replacement Components & Torque Specification (2 Of 2)
G03083674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
