Ignition System: Preparation: Transfer: SST

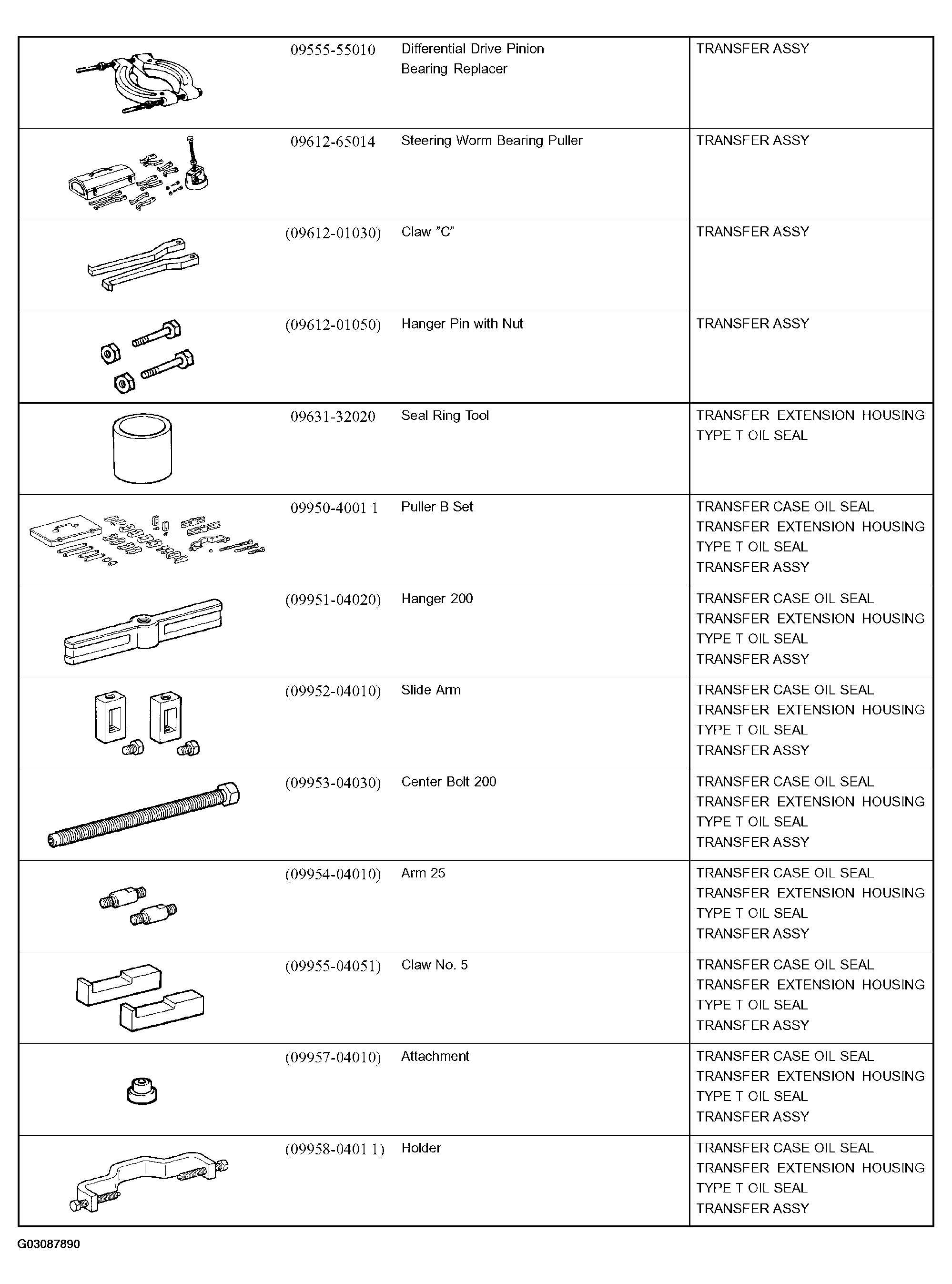

Fig 1: SST Specification Chart (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

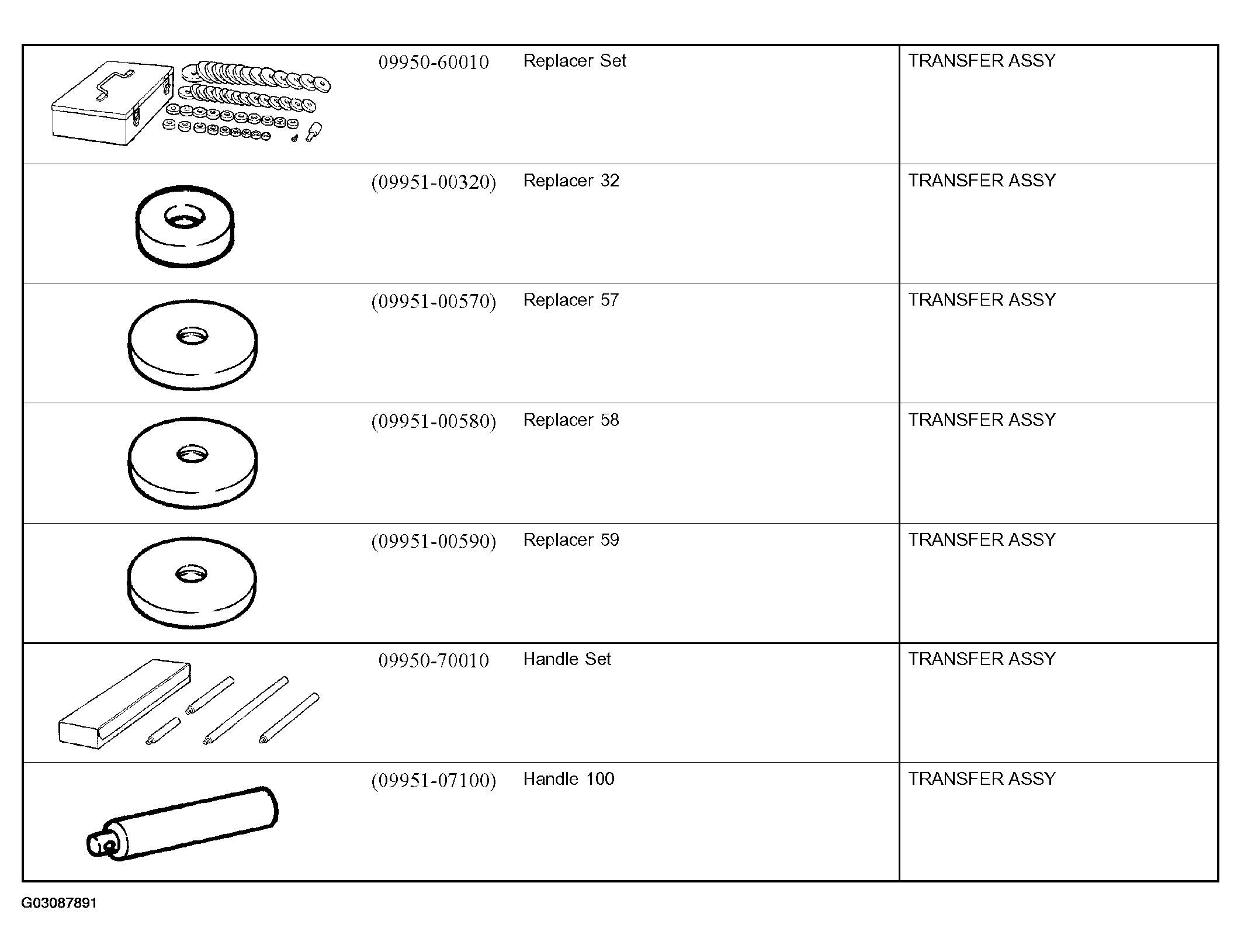

Fig 2: SST Specification Chart (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

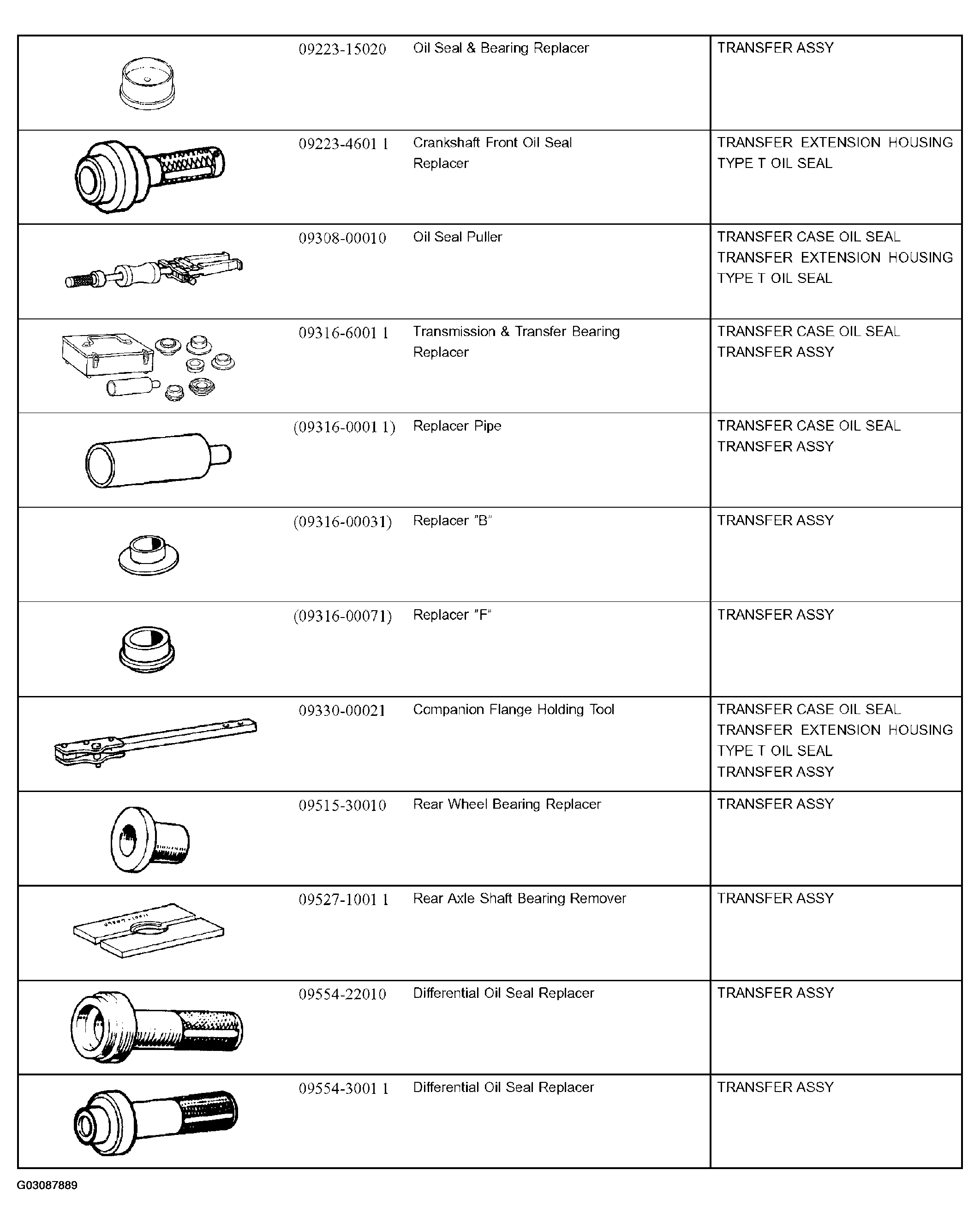

Fig 3: SST Specification Chart (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
